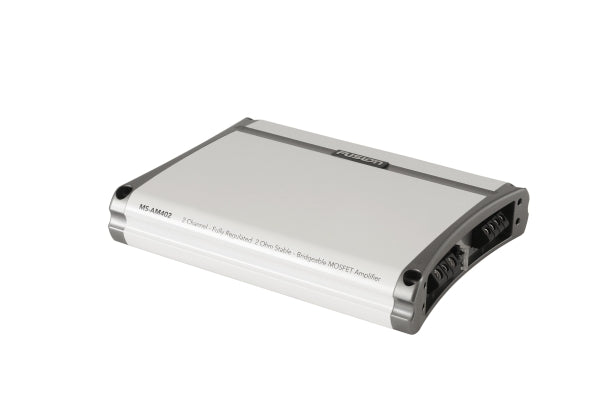

Fusion MS-AM402 2-Channel Class D Marine Amplifier

The Fusion MS-AM402 2-Channel Class D Marine Amplifier is specifically designed for the harsh marine environment with some impressive protective features. The Fusion MS-AM402 features heat-cured and conformal-coated circuit boards for maximum product durability and gold-plated connectors for improved signal flow. The result is a clean and powerful input signal that ensures clear music reproduction.

Fusion MS-AM402 2-channel marine amplifier can power up to two subwoofers, an additional pair of speakers or even 4 speakers (2 speakers in parallel with each channel at 2 ohms).

KEY FEATURES

• Futranz heatsink technology dissipates heat more efficiently, achieving greater thermal stability with maximum reliability
• FART Fusion Regulated amplifier technology that delivers enormous power output at the lowest voltage
• FIST Fusion air-cooled semiconductor technology that shortens internal power switching and thus quickly removes heat from all associated semiconductors.
• Variable bass boost
• Stable 2-ohm stereo operation
• Subsonic filter
• Variable low- and high-pass frequency separation

TECHNICAL DATA

• Rated power 14.4V Output power:
• 65 watts RMS x 2 @ 4 ohms
• 100 watts RMS x 2 @ 2 ohms
• 200 Watt RMS x 1 @ 4 Ohm bridged

Peak power: 400 watts

Frequency range: 5Hz - 38kHz +/- 3dB

Dimensions: 229 mm x 296 mm x 53 mm (DxLxH)
