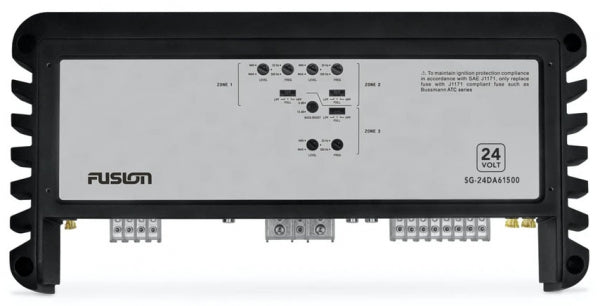

Fusion SG-24DA61500 - 6 channel signature amplifier, 1500 watts, 24V

FusionSKU: 1691295

Price:
Sale price€619,80 EUR Regular price€699,95 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Introducing an impressive new addition to the Fusion® Signature Series marine amplifiers: the SG-24DA61500.

This new Signature Series 24-volt, 6-channel marine amplifier is designed for boats powered by 24-volt electrical systems. With a peak power output of 1500 watts, it offers incredible power output for your onboard audio entertainment. Plug-and-play setup allows for easy installation without the need for an additional power adapter.

Designed specifically for marine applications, the Fusion Signature Series amplifiers feature some of the most impressive environmental protection available, delivering signature performance on the water like never before.

Features:

Class-D Amplifier Technology : The highly efficient Class-D design delivers 1500 watts of peak power while drawing less power than a standard Class-AB amplifier. This design provides greater efficiency and higher output power for your speakers and subwoofer, allowing you to enjoy your music longer without worrying about battery drain.

1500 Watt Peak Power : With 1500 watts of peak power, you can easily drive up to 6 pairs of speakers OR up to 4 pairs of speakers and 1 subwoofer.

Marine-Grade Design with Conformal-Coated PCBs : To extend the life of your amplifiers, Signature Series amplifiers are specifically designed for marine use with conformal-coated PCBs to provide added protection from the marine elements.

Rigid aluminum alloy heatsink : Molded to form a single die-cast chassis, the fin layout is calculated with precision to increase the surface area of ​​the heatsink and improve heat dissipation.

Mirror Finish Stainless Steel : The polished stainless steel control panel cover conceals and protects all cable connections and the settings control panel while providing an attractive finish to complement any installation.

Speaker Configuration : Whether you need 2 ohms per channel or 4 ohms bridged, Signature Series amplifiers cover your installation options to achieve optimal output levels. Connect up to 2 speakers per channel (2 x 4 ohm speakers in parallel) to the SG-24DA61500.

Zone Designation : To reflect the Fusion Entertainment System zone philosophy, the input and output connections are labeled as zones.

True Marine Construction : Signature Series amplifiers are perfectly suited for use in marine environments and come with a 3-year warranty.

specification

Frequency response

10 Hz to 40 kHz (-3dB @ 4 ohms nominal power)

Peak output power

1500 W

Rated output power (4 ohms)

100 W rms x 6 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)

Rated output power (2 ohms)

140 W rms x 6 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)

Rated output power (4 ohms bridged)

280 W rms x 3 @ 28.8 V input < 1% THD + N (EIA/CEA-490A)

Input sensitivity

0.3 V to 8 V rms, user adjustable

Input impedance

7k Ohm nominal

High-pass/low-pass filter across the entire range

Yes, user selectable

Filter crossover frequency

32 Hz to 320 Hz, user adjustable

Bass boost

0 to 9 dB, user adjustable (Zone 3 only)

Operating voltage

21.6 V to 32 V DC

Remote switching

Yes - 6 V threshold

Power consumption (standby)

< 1 mA at 28.8 V input

Current consumption (idle)

< 1.25 A at 28.8 V input

Current consumption (max.)

35 A at 28.8 V input

Backup

3 x 20 A ATC fuse blade type (SAE J1171 compliant)

Protective circuits

Reverse voltage, input under/overvoltage, overtemperature, output short circuit

Operating temperature range

0 to 50°C (32 to 122°F)

Ingress protection class

Dry area installation only

Dimensions

420mm (L) x 210mm (W) x 57mm (H)

Weight

5.15 kg with lid

guarantee

3 years
