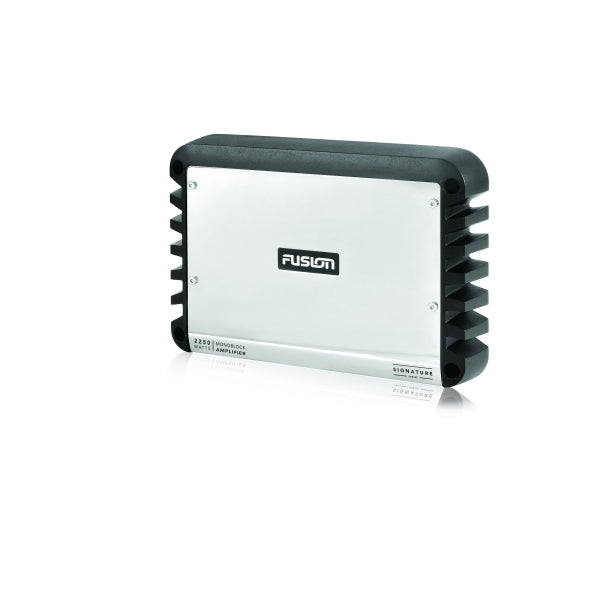

Fusion SG-DA12250 - Mono channel signature amplifier, 2250 watts

FusionSKU: 010-01970-00

Price:
Sale price€435,70 EUR Regular price€499,95 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days
 More payment options

Description

The Fusion Signature Series marine amplifiers are specifically designed for the marine environment. Featuring some of the most impressive protection on the market, they deliver distinctive on-water performance like never before.

Introducing one of our most stunning and efficient marine amplifiers, the SG-DA12250. Its True Marine design is corrosion-resistant, and its incredible 2250 watts of peak power is configurable for 1 ohm impedance—delivering enough power to bring your Signature Series subwoofer components to life.

The SG-DA12250 features a highly efficient monoblock Class-D amplifier design. The main advantage of a Class-D amplifier is its low battery consumption and high power, making it the perfect amplifier for the marine environment. The SG-DA12250 also features conformally coated circuit boards for maximum durability and performance, and the amplifier chassis is a heat sink to reduce the core temperature of the components and increase efficiency.

The stunning stainless steel mirror control panel cover conceals and protects all cable connections and adjustment controls, providing an attractive finish that complements any installation.

Zone 1 and 2 outputs include four speaker channels and a subwoofer. RCA line inputs allow easy connection to new or existing systems.

Features :

Class-D Amplifier Technology - The highly efficient Class-D design delivers 2250 watts of peak power while drawing less power than a standard Class-AB amplifier. This design provides greater efficiency and performance for your speakers, allowing you to enjoy your music longer.

2250 Watts Peak Power - Bring your music to life with 2250 watts of peak power.

Marine-ready design with conformally coated circuit boards - The Signature Series is specifically designed for marine use with conformally coated circuit boards to provide additional protection from the marine elements.

Rigid aluminum alloy heatsink - Cast into a unique die-cast housing, the fin layout is precisely calculated to increase the surface area of ​​the heatsink and improve heat dissipation.

Stainless steel mirror finish - The polished stainless steel control panel cover conceals and protects all cable connections and adjustment knobs while providing an attractive finish that complements any installation.

Zone Designation - To be consistent with the Fusion Entertainment System's zone philosophy, the input and output ports are referred to as zones.

Product Specifications

Amplifier Class

Class D

Subwoofer Frequency Response

10Hz - 320Hz

Peak Power

2250 watts

Rated Power (4 Ohms)

500 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD

Rated Power (2 Ohms)

850 Watts RMS x 1 @ 14.4V - 2 Ohms 1% THD

Rated Power (1 Ohm)

1100 Watts RMS x 1 @ 14.4V - 1 Ohm 1% THD

Mounting Dimensions

Length

300mm [11-13/16"]

Depth

210mm [8-1/4"]

Height

50mm [2"]
