Fusion SG-DA41400 - 4 channel signature amplifier, 1400 watts

FusionSKU: 1691253

Price:
Sale price€436,60 EUR Regular price€499,95 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Fusion Signature Series marine amplifiers are specifically designed for the marine environment. Featuring some of the most impressive protection on the market, they deliver distinctive on-water performance like never before.

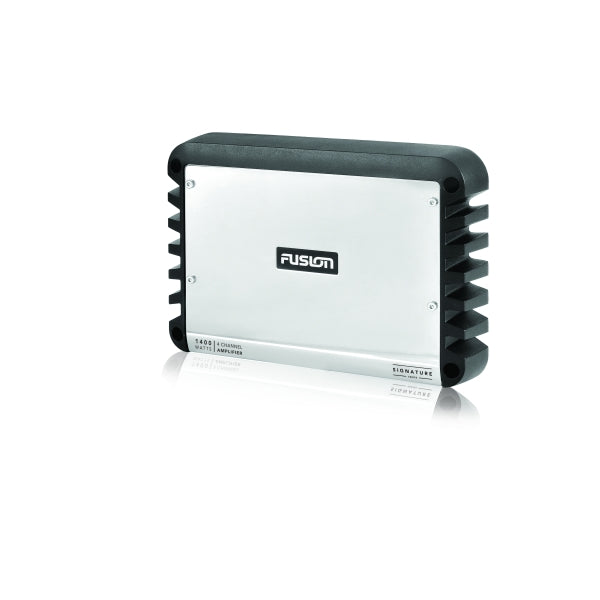

Introducing one of our most efficient and stunning marine amplifiers, the SG-DA41400. Its True Marine design is corrosion-resistant, and its incredible 1400-watt peak power easily powers either four Signature speakers or two Signature speakers and a subwoofer. Dedicated channel and bridging options are also available to create your own configuration.

The SG-DA41400 is a 4-channel Class D Hi-Fi marine amplifier. The main advantage of a Class D amplifier is its low battery consumption and high power, making it the perfect amplifier for the marine environment. The SG-DA41400 also features conformally coated circuit boards for maximum durability and performance, and the amplifier chassis is a heat sink to reduce the core temperature of the components and increase efficiency.

The stunning stainless steel mirror control panel cover conceals and protects all cable connections and adjustment controls, providing an attractive finish that complements any installation.

Zone 1 and 2 outputs include four speaker channels and a subwoofer. RCA line inputs allow easy connection to new or existing system zones.

Features:

Class-D Amplifier Technology - The highly efficient Class-D design delivers 1400 watts of peak power while drawing less power than a standard Class-AB amplifier. This design provides greater efficiency and performance for your speakers, allowing you to enjoy your music longer.

1400 Watts Peak Power - You can easily drive 4 speakers or 2 speakers and a subwoofer with a peak power of 1400 watts.

Marine-ready design with conformally coated circuit boards - The Signature Series is specifically designed for marine use with conformally coated circuit boards to provide additional protection from the marine elements.

Rigid aluminum alloy heatsink - Cast into a unique die-cast housing, the fin layout is precisely calculated to increase the surface area of ​​the heatsink and improve heat dissipation.

Stainless steel mirror finish - The polished stainless steel control panel cover conceals and protects all cable connections and adjustment knobs while providing an attractive finish that complements any installation.

Speaker Configuration - Whether you need 2 ohms per channel or 4 ohms bridged, your Signature Series amplifier offers the ability to cover your installation options to achieve optimal output levels.

Connect up to two speakers per channel at 2 ohms, or bridge two channels at 4 ohms to connect two subwoofers for additional power.

Zone Designation - To be consistent with the Fusion Entertainment System's zone philosophy, the input and output ports are referred to as zones.

Product Specifications

Amplifier Class

Class D

Frequency Response

10Hz - 65kHz

Peak Power

1400 watts

Rated Power (4 Ohms)

150 Watts RMS x 4 @ 14.4V - 4 Ohms 1% THD

Rated Power (2 Ohms)

220 Watts RMS x 4 @ 14.4V - 2 Ohms 1% THD

Rated Power (4 Ohms Bridged)

440 Watts RMS x 2 @ 14.4V - 4 Ohm Bridged 1% THD

Mounting Dimensions

Length

300mm [11-13/16"]

Depth

210mm [8-1/4"]

Height

50mm [2"]
