Fusion SG-DA61500 - 6 Channel Signature Amplifier 1500 Watts

FusionSKU: 1691296

Price:
Sale price€569,00 EUR Regular price€649,95 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Introducing an impressive new addition to Fusion’s Signature Series marine amplifiers: the SG-DA61500.

The Fusion Signature Series amplifiers are specifically designed for the marine environment. Featuring some of the most impressive protection on the market, they deliver distinctive on-water performance like never before.

One of our most efficient, stunning, and powerful marine amplifiers, the SG-DA61500 also features a true-marine design that's corrosion-resistant. Its incredible 1500-watt peak power drives up to 6 pairs of speakers at 2 ohms (2 x 4 ohm speakers per channel in parallel) or up to 4 pairs of speakers at 2 ohms (2 x 4 ohm speakers per channel in parallel) and 1 subwoofer. RCA line inputs allow for easy connection to new or existing systems.

The SG-DA61500 is Fusion's first 6-channel Hi-Fi marine amplifier. The main advantage of a Class-D amplifier is its low battery consumption and high power, making it the perfect amplifier for the marine environment. The SG-DA61500 also features conformally coated circuit boards for maximum durability and performance, and the amplifier chassis is a heat sink to reduce the core temperature of the components and increase efficiency.

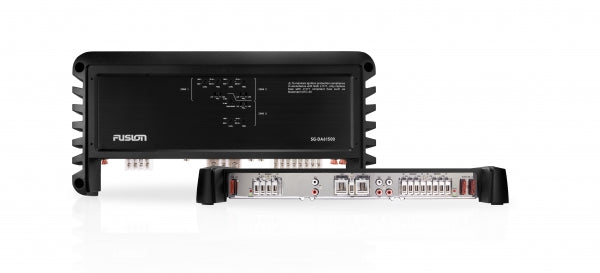

The stunning stainless steel mirror control panel cover conceals and protects all cable connections and adjustment controls, providing an attractive finish that complements any installation.

Features :

Class-D Amplifier Technology : The highly efficient Class-D design delivers 1500 watts of peak power while drawing less power than a standard Class-AB amplifier. This design provides greater efficiency and performance for your speakers, allowing you to enjoy your music longer.

1500 Watts Peak Power : With a peak power of 1500 watts, you can easily drive up to 6 pairs of speakers or up to 4 pairs of speakers with a subwoofer.

Marine-ready design with conformally coated circuit boards : The Signature series is specifically designed for marine use with conformally coated circuit boards to provide additional protection from the marine elements.

Rigid aluminum alloy heatsink : Cast into a unique die-cast housing, the fin layout is precisely calculated to increase the surface area of ​​the heatsink and improve heat dissipation.

Stainless Steel Mirror Finish : The polished stainless steel control panel cover conceals and protects all cable connections and adjustment knobs while providing an attractive finish that complements any installation.

Speaker Configuration : Whether you need 2 ohms per channel or 4 ohms bridged, your Signature Series amplifier offers the ability to cover your installation options to achieve the optimal output levels.

Connect up to 2 speakers per channel (2 x 4 ohm speakers in parallel) to your SG-DA61500.

Product Specifications

Frequency Response

10 Hz to 40 kHz (-3dB @ 4 Ohm rated power)

Peak Power Output

1500 W

Rated Power Output (4 Ohms)

100 W rms x 6 @ 14.4 V input < 1% THD + N (EIA/CEA-490A)

Rated Power Output (2 Ohms)

140 W rms x 6 @ 14.4 V input < 1% THD + N (EIA/CEA-490A)

Rated Power Output (4 Ohm Bridged)

280 W rms x 3 @ 14.4 V input < 1% THD + N (EIA/CEA-490A)

Input Sensitivity

0.3V to 8V rms, user adjustable

Input impedance

7k Ohm nominal

High-pass/low-pass full range filter

Yes, user selectable

Filter Crossover Frequency

32Hz to 320Hz, user adjustable

Bass boost

0 to 9 dB, user adjustable (zone 3 only)

Operating Voltage

10.8 V to 16 V dc

Remote Switch-On

Yes - 6 V threshold

Current Consumption (Standby)

< 1 mA @ 14.4 V input

Current Consumption (Idle)

< 2.5 A @ 14.4 V input

Current Consumption (Max)

75 A @ 14.4 V input

Fuse Rating

3 x 40 A ATC blade type (SAE J1171 Compliant)

Protection Circuits

Reverse voltage, input under/over voltage, over temperature, output short circuit

Operating Temperature Range

0 to 50°C (32 to 122°F)

Ingress Protection Rating

Dry area installation only

Dimensions

420mm (L) x 210mm (W) x 57mm (H) or 16-9-16" (L) x 8-1/4" (W) x 2-1/4" (H)

Weight

5.15 kg or 11.35 lb with cover

Warranty

3 years
