Description
The days of your onboard audio being compromised by limited speaker placement and engine noise are over! Finding the right speaker placement is often difficult, leading to installations where the speakers are mounted low, near deck level. This limits the amount of high-frequency audio that can be heard while standing.

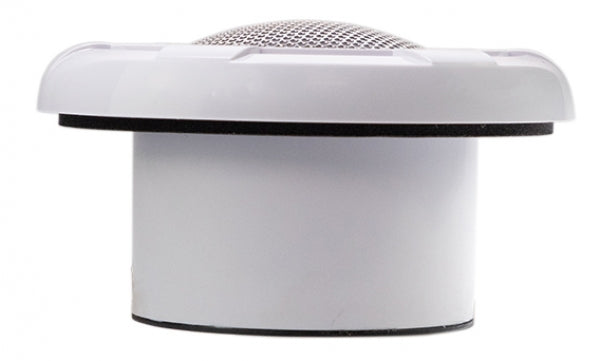

Use the Signature Series compact tweeters to restore high frequencies for an audible improvement in onboard sound quality. Install the compact tweeters in higher locations, such as the helm, dashboard, or pilothouse window/windshield mount, to enhance onboard audio quality.
Each tweeter produces an impressive 330 watts of peak power with a 1-inch voice coil, neodymium pot magnet system, and aluminum tweeter dome for high-quality high-frequency detail in your music.
These tweeters are the perfect complement to Fusion's Signature Series speakers and DSP-enabled stereo systems like the Apollo Series. They are designed to enhance audio reproduction for a truly spectacular in-car music experience.
Technical specification
Top performance | 330 watts |
Effective power | 60 watts |
Efficiency |
(1W / 1M) 91 dB |
Frequency response | 3 kHz - 20 kHz |
Impedance | 4 ohms nominal |
Impedance when connected to a Signature Series speaker | 2 ohms nominal |
Voice coil diameter | 1 " |
Tweeter type |
Aluminum Hard Dome |
Mounting diameter | 51mm (2") |
Mounting depth distance | 31mm (1-1/4") |
Tweeter depth | 28.4 mm (1-1/8 ") |
