The Apollo WB675 is the embodiment of award-winning audio innovation in a discrete form factor.
Sources: AM / FM / Bluetooth / Apple AirPlay 2* / Optical audio input / USB / AUX / MTP / UPnP* / DAB+ ready (MS-DAB100A required) / SiriusXM ready (SiriusXM Connect vehicle tuner required)
4 Audio Zones
The new Apollo WB675 inherits key audio innovations and technological brilliance from the Apollo RA675, redesigned in a compact, space-saving form factor to simplify dashboard space at the driver's side. Key features include Fusion digital signal processing technology, enhanced PartyBus™ networking capabilities*, Wi-Fi audio streaming with Apple AirPlay® 2*, over-the-air software updates*, and additional source options, including optical audio for connecting to TVs. The Apollo WB675 also offers enhanced connectivity options, providing convenience and flexibility in controlling your entertainment system. You can connect a wired Apollo ERX400 remote control via Ethernet for the full Apollo user experience. Alternatively, for a streamlined system, you can control the WB675 using only a Garmin MFD via NMEA 2000® or Ethernet. From the kick drum to the drumhead, Apollo makes it naturally easy to customize your audio entertainment for superior sound quality in every area of your boat. The future of marine audio entertainment is here.
*Available when the Apollo WB675 is connected via an Ethernet cable to a wireless network router or an Apollo series stereo network enabled with Wi-Fi® technology.
Digital Signal Processing (DSP):
A technically superior listening experience made easy: Fusion's DSP produces superior sound quality in any environment. Precisely calculated loudness curves, optimized for the human ear, ensure high-quality audio across the entire range at any volume level, while the feed-forward limiter anticipates audio peaks and adjusts the gain to eliminate distortion. By utilizing environmental information and acoustically designed Fusion speaker profiles, you can now achieve customized, optimized audio for every area of your boat. The result is an entertainment system perfectly tuned for premium audio playback and programmed to protect your system season after season.
Setting up your DSP profiles is a breeze with the free Fusion Link application. With just a few clicks, you can configure the pre-configured DSP profile once and get back to enjoying what you love on the water, while listening to high-quality audio tailored to your ears and the environment.
PartyBus™ network*:
Enjoy the freedom of music selection with the Apollo Series and Fusion's PartyBus™ network. We've introduced a new, intuitive user experience that allows for easy navigation through your entire vessel's audio network, making control of your audio signals and sources a seamless experience. Key features include:
-
Stereogrouping ,
It allows you to connect multiple Apollo series stereo units connected to the same network and play the same audio source synchronously across all units. Multiple groups can be created for a personalized audio entertainment experience. Note: Apollo SRX400 sources are not shared across the network.
-
Volume control ,
Scroll through the available zones on your boat and enjoy independent volume control to customize your listening experience, or select ALL volume to adjust a group of stereos simultaneously.
-
Power Options ,
It allows you to remotely turn on any connected Apollo series stereo system via the PartyBus network from another Apollo series stereo system.
-
Home zone ,
This is the physical zone on board your vessel where the stereo system is installed. After the volume has been adjusted in another zone, the stereo system will, by default, revert to the Home Zone's volume control after a period of inactivity.
Wi-Fi audio streaming with Apple AirPlay 2 *:
Stream high-quality audio seamlessly over Wi-Fi* from your compatible Apple device to the Apollo WB675 using Apple AirPlay 2. Apple AirPlay 2 offers the additional functionality of streaming one audio source from your compatible Apple device to multiple Apollo Series marine stereos connected to the same network, with individual and global volume control for each main unit.
Over-the-air software updates*:
The Apollo series is intelligently simple and always up-to-date, thanks to over-the-air software updates available via your smartphone or compatible device through the free Fusion Link app.
More source code options:
The Apollo WB675 offers more source options: Bluetooth, UPnP, Optical Audio, enhanced SiriusXM features and DAB+ radio, as well as AM/FM radio, AUX and USB ports are available.
Compact design:
The Apollo WB675 was designed to save space at the helm and can be mounted in remote locations such as storage compartments, control consoles and other hidden compartments.
Enhanced SiriusXM Features ( US only ): In addition to the addition of on-screen album art, a selection of enhanced features is now available on SiriusXM! These features include:
-
Instant playback allows you to replay songs from up to 1 hour after playback, so you never have to miss a beat of your favorite tunes again.
-
TuneStart , where you always hear the song playing on each of your favorite stations from the beginning, no matter how far along it is when you change stations.
-
TuneMix lets you create your own custom channel by mixing your favorite stations. TuneMix also lets you skip back to songs you've heard across all the channels in your mix, even within the last hour.
-
SportsFlash , where you receive key plays and updates from your favorite teams during live games, ensuring you never miss the best moments.
-
Artist, Song and Game Alerts , where you can choose to receive notifications when your favorite artists, songs or sports teams start playing.
Note: Access to SiriusXM satellite radio requires a SiriusXM Connect vehicle tuner and a subscription (available only in the US). DAB+ radio also requires an MS-DAB100A module (sold separately).
True-Marine™ Designed and engineered:*
The Apollo WB675 is based on Fusion's True Marine design philosophy and has been tested to a high level for protection against salt spray, temperature, vibration and UV radiation.
Fusion-Link™:
Fusion-Link is the industry-standard protocol for audio integration and control on the water. Fusion-Link allows you to control your entertainment directly from the multifunction displays of Marine Partners, from compatible Apple or Android devices via the Fusion-Link app, and from Garmin watches via Fusion-Link Lite. With its numerous control options, you're always in control of your audio entertainment, no matter what you're doing on your boat.
Multiple Zone Technology™ :
For a personalized listening experience throughout your boat, three independent audio zones are available, each with advanced, localized menu controls, including volume limits, zone naming, zone disabling, and more. Note: Subwoofer and full-range line outputs require additional amplification.
Additional audio zones:
By connecting two Apollo WB675 speakers to a router or Ethernet switch via Ethernet, up to six independent audio zones are available. You can control both Apollo WB675 speakers with a single wired remote control, the Apollo ERX400.
Specifications:
Dimensions: 5.1" x 5.1" x 2.2" (130 x 130 x 56 mm)
Weight: 1.05 lbs (475 g)
Power supply: 10.8 to 16 V DC
Operating temperature 0 °C to 50 °C (32 °F to 122 °F)
Current (maximum) 15 A
NMEA 2000® network LEN 1 (50 mA)
Range of Bluetooth® wireless technology: Up to 10 m (30 ft)
ANT® wireless connectivity range: Up to 3 m (10 ft)
Radio frequencies/protocols: Bluetooth 2.4 GHz at +12 dBm (nominal) ANT 2.4 GHz at +7 dBm (nominal)
Safety distance to compass: 150 mm (5.9 inches)
Radio functions:
Integrated Class D amplifier (2 ohm stable)
Peak power 280 watts
Rated power (2 ohms) 43 watts (rms) x 4 at 14.4 V input voltage < 10% THD
Rated power (4 ohms) 26 watts (rms) x 4 at 14.4 V input voltage < 10% THD
Integrated digital signal processing: Yes (with pre-configured DSP profiles)
PartyBus™ network capabilities: Yes (wired)
Fusion-Link™ operation: Yes (with multi-function display, smartphone and Garmin® smartwatch)
Multi-Zone™ technology 4 zones
Integrated Wi-Fi technology: No
Wireless Bluetooth technology: yes
Wireless ANT technology: Yes
DAB+ preparation: Yes (MS-DAB100(A) module required)
Optical audio input: Yes Compatible with NRX remote control: Yes
Software updates OTA software updates via the Fusion Link app*
USB
3-year warranty
Sources:
Sources: MW / FM / Bluetooth / Apple AirPlay® 2* / Digital Optical Input / USB Audio / iPhone® / iPod® / AUX x1 / Universal Plug and Play* / MTP / DAB+ Support (only available in Europe and Australia, optional MS-DAB100(A) module required)

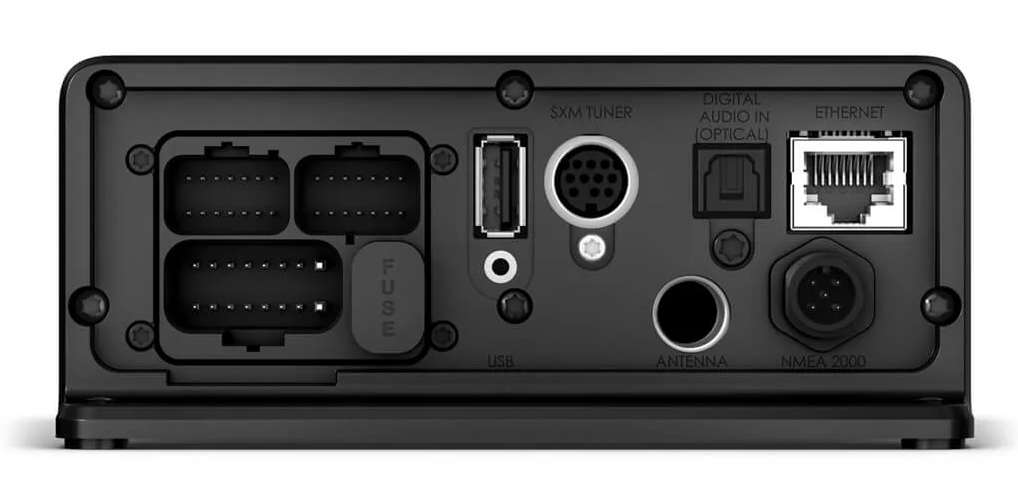

Connectivity:
AUX input: One RCA input (AUX)
Optical audio input: A digital optical input (SPDIF)
Ethernet One Ethernet port NMEA 2000 An NMEA 2000 connector
USB 2.0 A USB 2.0 port
AM/FM radio with a Motorola antenna connector
Speakers: 4 speaker connections (2 zones amplified)
RCA pre-out (left, right and subwoofer) 4 zones (external amplifier required)
Line output 4 (1 x left and right per zone, external amplifier required)
Subwoofer output 4 (1 mono output per zone; external amplifier required)
* Available when connected to a WLAN network router or a network of the Apollo series radio equipped with WLAN technology.
