Offgridtec® 20W mono solar panel 12V

OffgridtecSKU: 3-01-001560

Price:
Sale price€26,20 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The 20W MONO solar module from Offgridtec uses monocrystalline solar cells with a high efficiency of >18% and is ideal for 12V systems thanks to its 20V operating voltage.
Offgridtec MONO solar modules use only cells of the highest quality and, thanks to state-of-the-art manufacturing, guarantee consistently high quality and performance with a maximum service life.

Features:
manufactured according to the latest standards
monocrystalline solar cells
Extremely durable ESG glass makes the module usable even in the most adverse environmental conditions
ideal for 12V systems on land or in mobile solar systems
Frame in anodized aluminum
1 bypass diode - minimized power loss when shaded

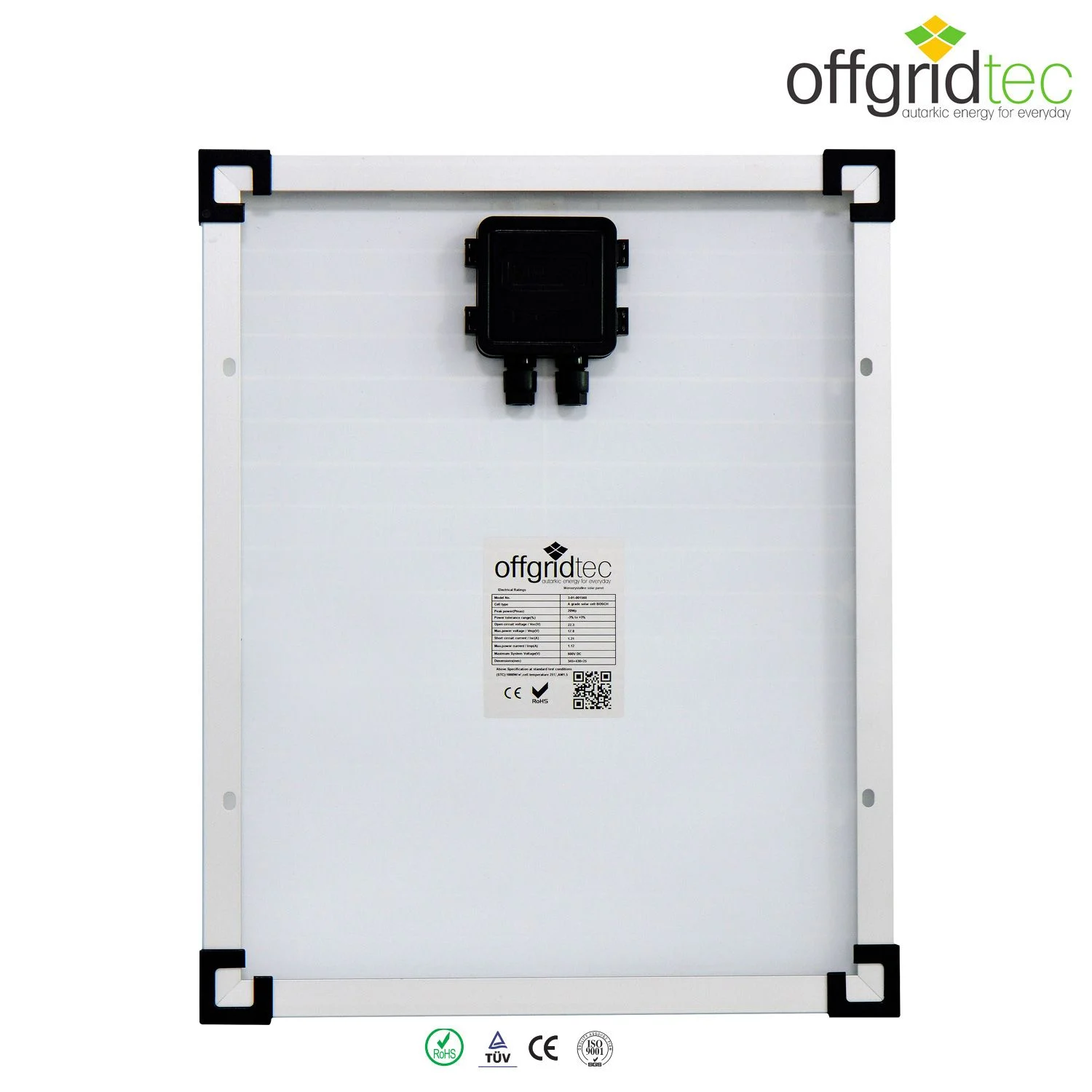

Junction box with 2 cable inputs

The MONO 20W 12V is one of over 40 proven solar panels from the Offgridtec portfolio and benefits from Offgridtec's experience in manufacturing high-quality 12V and 24V solar cells. Thanks to its extremely durable solar glass, the module can be used even in extremely adverse conditions. It easily withstands storms and extreme cold and heat, and thanks to the integrated bypass diodes, the module can continue to produce power even in shade or low light.

technical data:
Power (Pmax): 20W
Working voltage (Vmp): 20 V
Open circuit voltage (Voc): 24 V
Max. current (pulse): 1 A
Short-circuit current (Isc): 1.08 A
Max. system voltage: 600 V
permissible ambient temperature: -40°C - +85°C

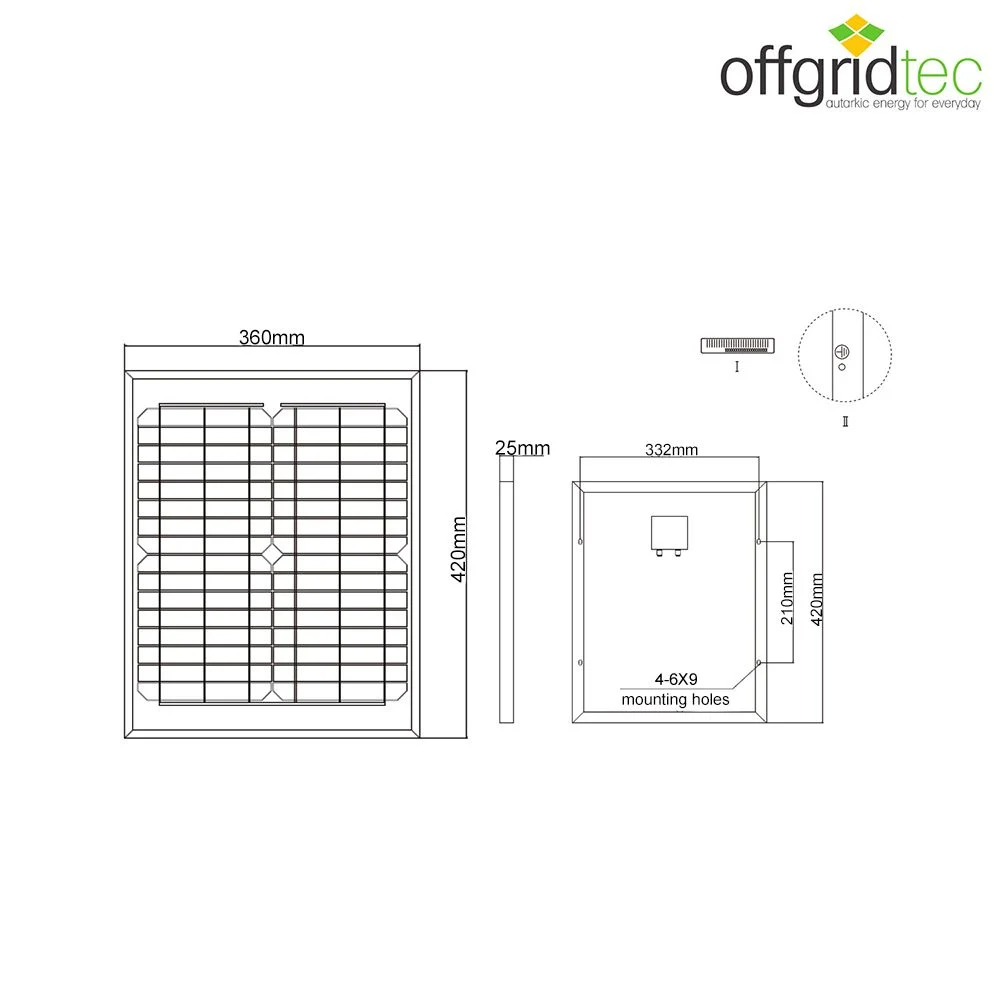

Dimensions: 420 x 360 x 25 mm
Weight: 1.8 kg

Universally applicable
Offgridtec's 20W 12V Mono panel is universally applicable, for example, in 12-volt solar systems on garden sheds, allotments, or for powering lighting applications, self-sufficient signaling and monitoring systems, and much more. This panel also performs well in mobile systems such as RV solar systems.

The 20Wp 12V solar panel is delivered without connection cables.

Scope of delivery:
Offgridtec 3-01-001560 20W MONO 12V solar module
