Victron 50A Buck-Boost DC/DC converter

VictronSKU: ORI303050000

Price:
Sale price€652,12 EUR Regular price€854,42 EUR

Tax included Shipping calculated at checkout

Shipping in 8-10 working days

Description

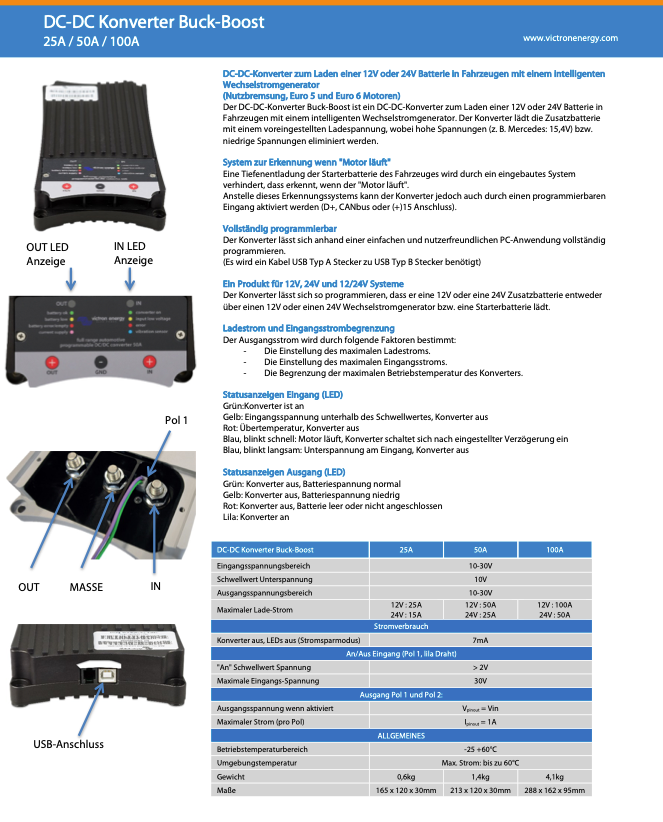

The Victron Energy 50A buck-boost DC-DC converter is designed for charging a 12V/24V auxiliary battery in vehicles equipped with a smart alternator. Since these alternators (powered by the onboard electronics of Euro 5 and 6 engines) don't always deliver the correct charging current, a DC-DC converter is essential for properly charging the auxiliary battery. The converter charges the auxiliary battery with a preset charging voltage, eliminating high and low voltages.

Characteristics:
- System to detect when "engine is running"
- Fully programmable
- A product for 12V, 24V and 12/24V systems
- Charging current and input current limiting
- LED status indicators for input and output

    System to detect when "engine is running":
    Deep discharge of the vehicle's starter battery is prevented by a built-in system that detects when the engine is running. However, instead of this detection system, the converter can also be activated via a programmable input (D+, CANbus, or (+)15 connection).

    Fully programmable:
    The converter can be fully programmed using a simple and user-friendly PC application (a USB Type A to USB Type B cable is required). The converter can be programmed to charge a 12V or 24V auxiliary battery either via a 12V or 24V AC generator or a starter battery.

    Charging current and input current limiting:
    The output current is determined by the following factors:
    - Setting the maximum charging current
    - Setting the maximum input current
    - Limiting the maximum operating temperature of the converter

    Technical data:
    - Input voltage range: 10-30V
    - Output voltage range: 10-30V
    - Max. charging current: 12V: 50A – 24V: 25A
    - Operating temperature range: -25°C to +60°C
    - Weight: 1.1 kg
    - Dimensions: 213 x 120 x 30 mm

    Scope of delivery:
    1x Victron Buck-Boost 50A DC-DC converter
    1x Instruction manual

    GPSR Information

    Hersteller
    Name: Victron Energy BV
    Anschrift: The Palm 35
    PLZ, Ort: 1351, JG Almere
    Land: Netherlands
    Email: sales@victronenergy.com
