Victron Phoenix Inverter 12/2000 Smart

Victron EnergySKU: PIN122201000

Price:
Sale price€653,31 EUR Regular price€813,96 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Phoenix 12/2000 smart inverter from Victron Energy is an advanced inverter based on the proven Phoenix series. It offers a continuous output of 1600W and is designed for 12V battery voltage. Compared to the previous models, the Phoenix Smart series has a Bluetooth module and a Ve.Direct output for wireless remote monitoring and system configuration.

The Phoenix 12/2000 Smart is also characterized by its high switch-on capacity and reliability and, thanks to the integrated ECO mode, is also in the top league of this device class when it comes to self-consumption and efficiency.

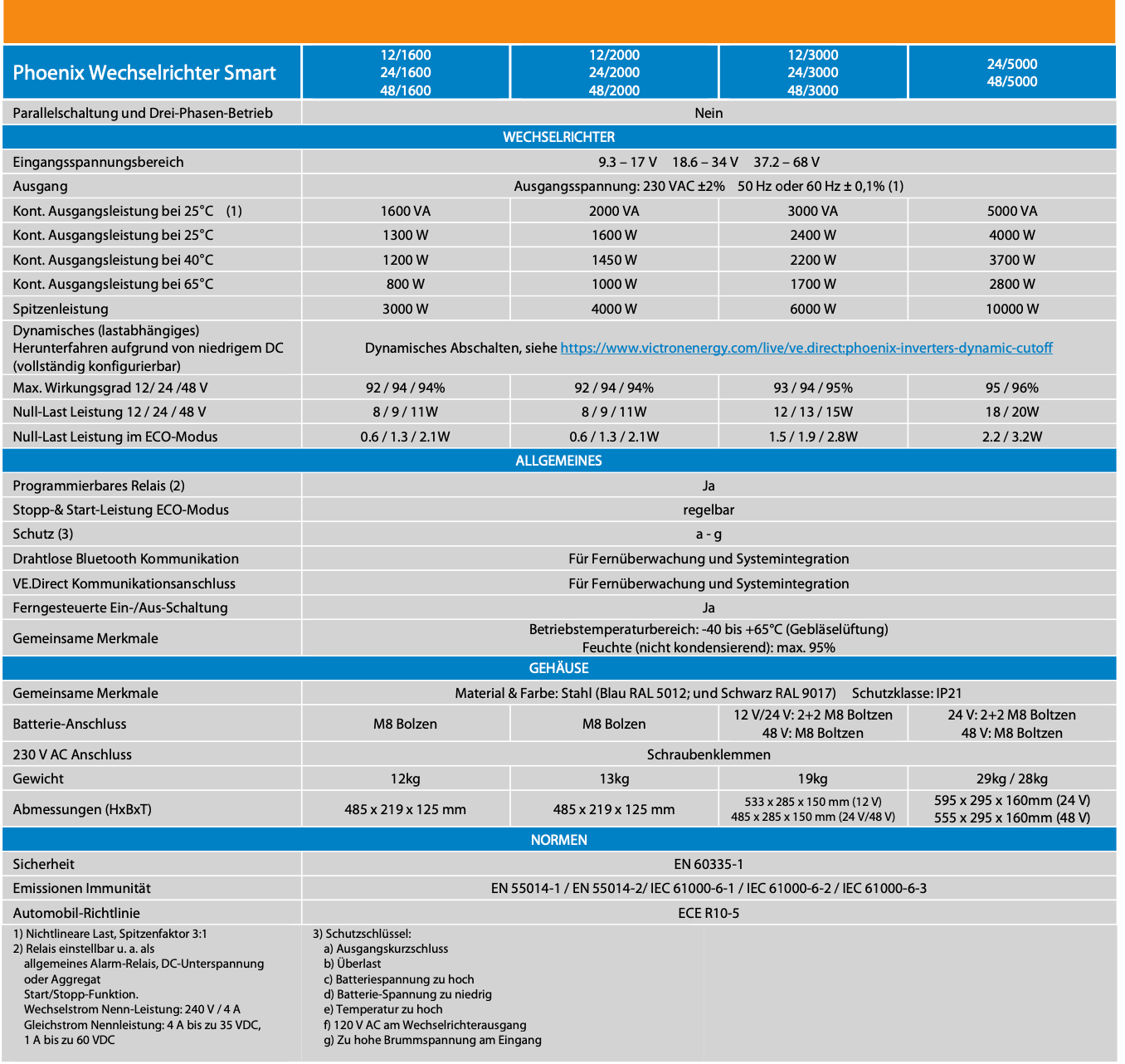

Features Phoenix 12/2000 Smart
for 12V battery voltage, 1600W continuous output
integrated Bluetooth module and VE.Direct port for wireless monitoring and system integration
designed for high inrush currents
integrated alarm relay, ECO mode
Monitoring of input and output voltage, load and alarms etc. via Bluetooth or VE.Direct
integrated, two-pin connector for connecting an on/off switch (remote control)

Parameters configurable via Bluetooth or VE.Direct
Low battery voltage alarm
Thresholds for switching off and restarting at low battery voltage values
Dynamic shutdown: load-dependent shutdown threshold
Output voltage: 210 - 245V, frequency: 50 Hz or 60 Hz
Threshold for ECO mode on/off and ECO mode sensor
alarm relay

high reliability thanks to toroidal transformer topology
Complete bridging with an additional toroidal transformer topology has proven itself for years. The inverters are short-circuit-proof and protected against overheating (whether caused by overloading or the ambient temperature).

very high switch-on power
This is required to switch on loads such as voltage converters for LED lamps, halogen lamps or power tools.

Eco mode
In ECO mode, the inverter switches to standby as soon as the load falls below a preset value. In standby mode, the inverter then switches on every 2.5 seconds for a short period (adjustable). If the load exceeds the preset threshold value, the inverter remains switched on.

Remote on/off switch
A remote on/off switch or relay contact can be connected to the two-pin connector. Alternatively, the H (left) connector of the two-pin connector can be switched to a battery positive terminal, or the L (right) connector of the two-pin connector can be connected to the battery negative terminal (or to the body of a vehicle, for example).
