Offgridtec® Mono 100W V2 Solar Panel 23V Black Frame

OffgridtecSKU: 3-01-018385

Price:
Sale price€59,90 EUR Regular price€79,97 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Mono 100W Solar module Black Frame V2 from Offgridtec Works with monocrystalline solar cells with a high efficiency of 22.3%. Thanks to its 23V operating voltage, it is suitable for a variety of application areas. This constellation ensures high performance and reduced loss of yield due to voltage waste. It is the new and improved version of the popular Mono 100W solar module and, thanks to the latest production, guarantees a consistently high quality and performance at maximum lifespan.

- Proven quality
- ready for operation immediately
- manufactured according to the latest standards
- Monocrystalline perc solar cells
- Extremely resistant ESG glass makes the module in use even in the most adverse environmental conditions
- 2 bypass diiodes - minimized drop in performance when shading

Monocrystalline modules
Monocrystalline solar modules are an advanced form of photovoltaic modules that are made from a single crystal grille. This crystalline structure enables higher efficiency when converting sunlight into electrical energy compared to other types of solar modules. The monocrystalline cells are characterized by their even structure, which enables a more efficient movement of the load carriers. This leads to better performance, especially in situations with a limited space, since monocrystalline modules have a higher performance density.

Technical data
-
Performance (pmax): 100W
- Work voltage (VMP): 23.9 V
- idle span (VOC): 28 V
- Max. Electricity (IMP): 4.2 a
- efficiency: 22.3%
- NOCT: 45+/2 ° C
- Short circuit current (ISC): 4.4 a
- Max. System voltage: 1000 V
- permissible ambient temperature: -40 ° C - +85 ° C
- Dimensions: 925 x 560 x 35 mm
- Weight: 6.22kg

Universally applicable
Offgridtecs 100W 23V 2V Mono can be used universally, for example in 12 volts solar systems on garden houses, allotment gardens or for the power supply of lighting applications. But this panel also cuts a good figure in mobile systems such as motorhome solar systems.
Due to the integrated bypass diodes, the module can continue to produce electricity even when shading or weak light.

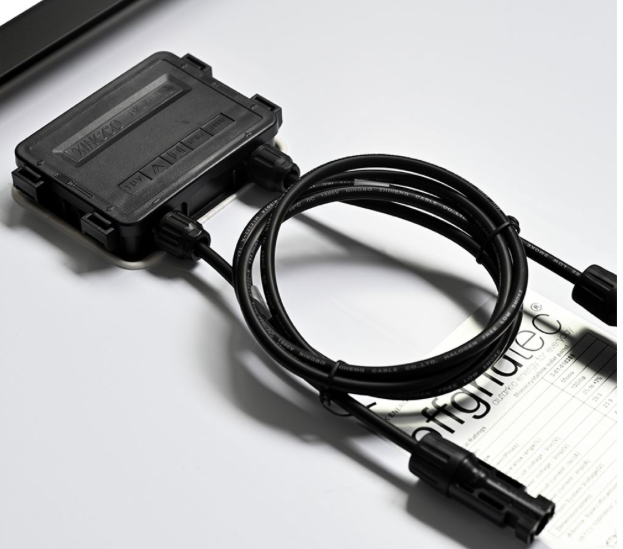

The connection cables are 80 cm long and equipped with MC4 plugs.

Scope of delivery:
1x offgridtec® Mono 100W V2 Solar Panel 23V Black Frame
