Offgridtec® SPR-150 150W 44V high-end solar panel

OffgridtecSKU: 3-01-001525

Price:
Sale price€209,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

Monocrystalline 150W high-performance solar panel with high-power solar cells from Sunpower contacted on the back. This is where the world's best solar cells and the new back-contact process come together. The result is a high-end product at a solid price. Suitable for 12V and 24V systems (12V only in connection with a suitable MPPT charge controller).

Important properties

  • Module efficiency of over 24%
  • Monocrystalline high-power solar cells
  • back contact
  • Black aluminum frame (black frame)
  • Extremely resistant
  • 44V module voltage
  • Integrated bypass diodes
  • Ideal for RVs, boats/yachts and small areas
  • Noble optics
  • Light weight

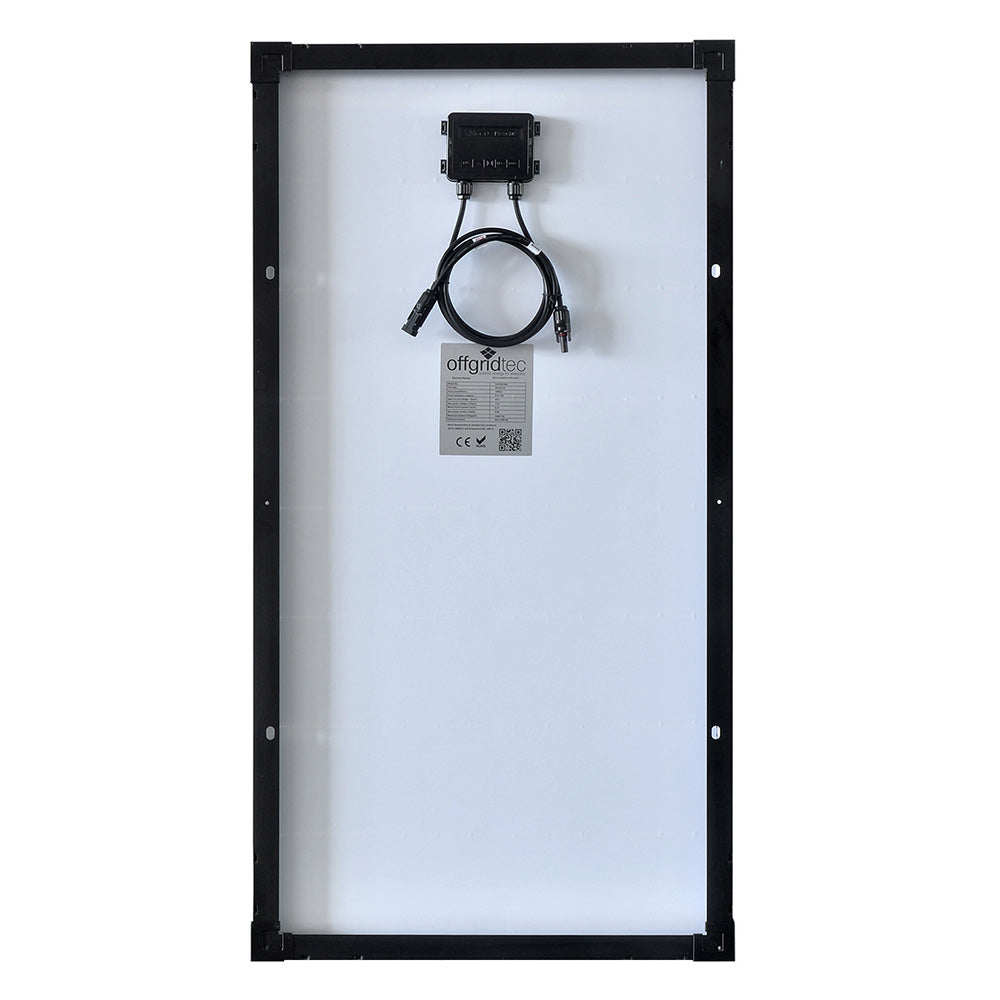

In the production of our modules, only monocrystalline SunPower solar cells of the highest quality are processed. In contrast to conventional solar modules, the cells are connected to one another on the back (back contact), which increases cell efficiency and ensures an elegant appearance.

The module has a black aluminum frame and has a specially hardened ESG solar glass.

The connection cables are 80 cm long and fitted with MC4 connectors.

Technical specifications

Power(Pmax): 150W

Voltage(Vmp): 44V

Max Current(Imp): 3.41A

Open Circuit Voltage(Voc): 51.79V

Short circuit current(Isc): 3.69A

Max. system voltage: 600 V/DC

Cell efficiency: >24%

Ambient temp.: -40...+85°C

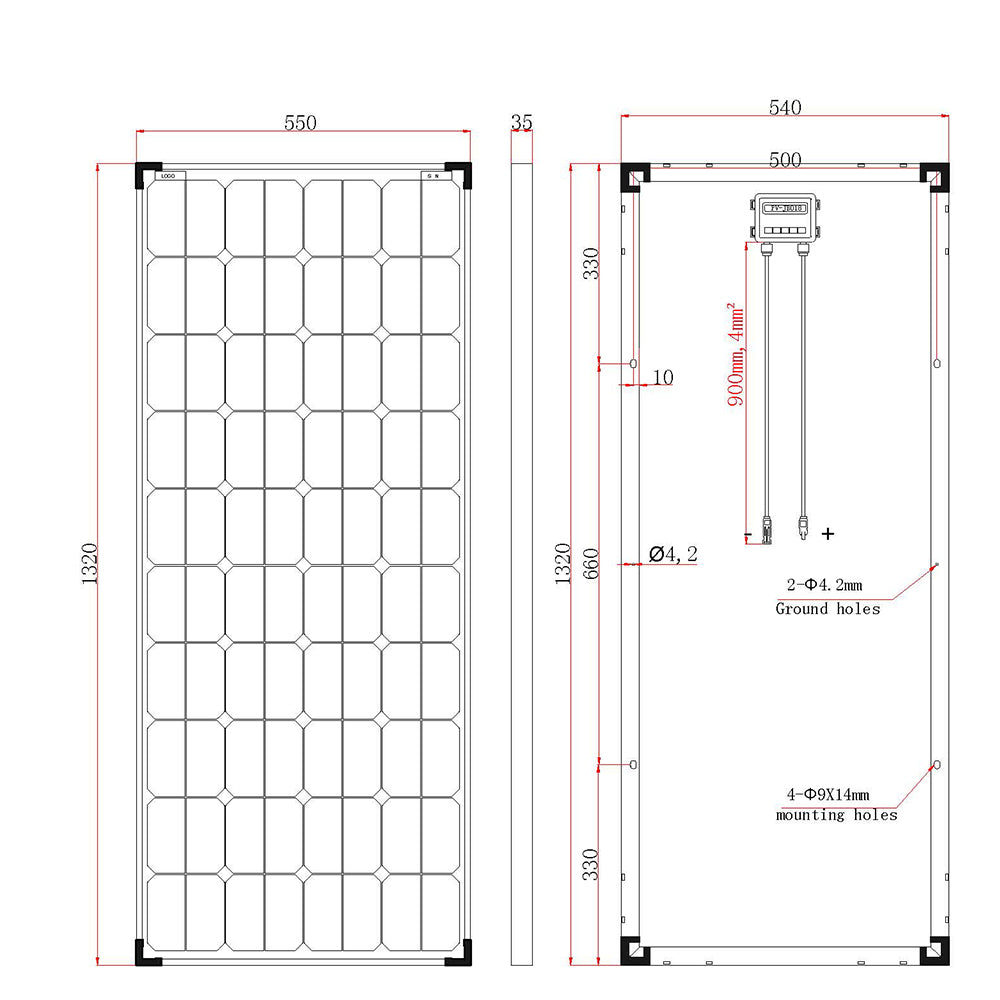

Dimensions: 1320x550x35mm

Weight: 9.37kg

data sheet

Generator power wp

150 Wp

Solar panel - cable length

0.8m

Solar panel - plug type

MC4

Solar module - format drillings

9x1

system voltage

12V / 24V

Solar module - connection box (K. max.)

not applicable

Max system voltage

600VDC

cell efficiency

>24%

Module Voltage (VMP)

44 v

max current (IMP)

3.41A

Open Circuit Voltage (VOC)

51.79v

Short circuit current (ISC)

3.69A

Solar panel - size connection cable

4 - 6mm

Solar panel - number of cable entry

not applicable

cell type

monocrystalline

ambient temperature

-40°C - +85°C

Manufacturer

off-grid tec

tolerance

+/- 3%

guarantee

5 years

product type 1

solar panel

Solar module - terminal standard

not applicable

Solar panel - cell type

SPR monocrystalline

Solar panel - installed diodes

2x IOSQO50 bypass diodes

Solar panel - frame thickness

1 mm

Solar Panel - Junction Box (ABM)

100 x 77.5 x 25mm

Solar module - connection box (IP)

IP65

Solar module - connection terminal

not applicable

Dimensions

1320x550x35mm
