Offgridtec® Spr-Ultra-70 70W SLIM 12V high-end solar panel

OffgridtecSKU: 3-01-013095

Price:
Sale price€119,90 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Spr-Ultra 70W / 12V High-end solar panel from Offgridtec (MPN 013095) is a monocrystalline module with high-power solar cells from the American manufacturer Sunpower-the best thing you can process with an efficiency of over 20%. Here the world's best solar cells and the new back contact process meet. The result is a high-end product at a solid price. In addition, when producing this series, we particularly took care that the rest of the module also meets the valuable solar cells. This panel is significantly lighter and in terms of space smaller than conventional solar cells with the same performance. Due to the narrow design, the module is ideal for motorhomes, boats/yachts and other small areas. The SP series is also higher in the SP series than in our normal mono series.

Important properties

  • Efficiency of over 20%
  • Lighter and smaller than other mono modules with the same performance
  • Monocrystalline High-Power solar cells (Made in USA)
  • Ideal for motorhomes, boats/yachts and small, especially narrow areas
  • Very good yield even in poor light
  • Patented back contact technology (there are only the pure cells on the front)

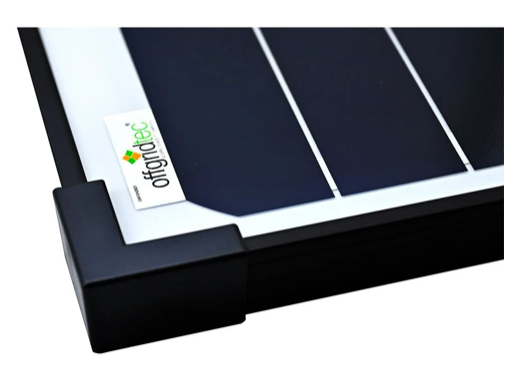

  • Black aluminum frame
  • Extremely resistant
  • Noble optics

In the production of our modules, only monocrystalline SunPower solar cells of the highest quality level are processed. In contrast to the conventional solar modules, the cells are connected to each other on the back (back contact), which increases the cell efficiency and ensures a noble look.

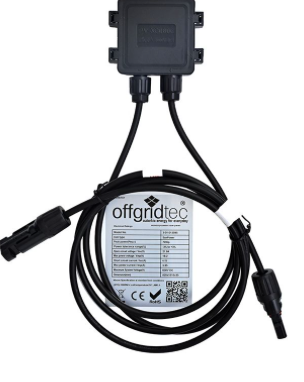

The module has a black frame made of aluminum and has a specially hardened ESG solar glass. The connection cables are 80cm long and equipped with MC4 plugs.

Technical specifications

  • Generator performance: 70 WP
  • System voltage: 12V / DC
  • Module voltage (VMP): 18.2 V
  • Max. Electricity (IMP): 3.85 a
  • Idle voltage (VOC): 21.84 V
  • Short circuit current (ISC): 4.15 a
  • Max. System voltage: 600V / DC
  • Cell type: Monocrystalline Spr-cells
  • Ambient temperature: -40 ° C - +85 ° C
  • Tolerance: ± 3%
  • Dimensions (LXBXH): 1010 x 420 x 35 mm
  • Weight: 4.9 kg

Scope of delivery:

1x offgridtec Spr-Ultra 70W SLIM 12V high-end solar panel



data sheet

Cell type

Monocrystalline SPR high -performance cells

Manufacturer part number

013095

Dimensions (LXBXH)

420 x 1010 x 35 mm

Max system voltage125

600 V/DC

Short circuit current (ISC)

4.15 a

Idle voltage (VOC)

21.84 V

Max. Electricity (IMP)

3.85 a

Manufacturer

Offgridtec

rated capacity

70 WP

EAN

4250983260465
