Offgridtec ETFE SPR-F 165W 27V marine solar cell flexible

OffgridtecSKU: 3-01-010905

Price:
Sale price€247,90 EUR Regular price€264,41 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Offgridtec 010905 ETFE SPR-F 160W is a semi-flexible high-performance solar cell that is ideally suited both as a solar module for mobile homes and especially for marine use on sailing yachts, motor yachts and other types of boats.

The module is ideally suited for 12V system voltage in conjunction with an MPPT charge controller. The ETFE 160W 12V solar cell is flexible and can also be walked on without hesitation when fully bonded. The surface of the plastic solar glass made of ETFE is slightly corrugated, which makes it walkable even when wet.

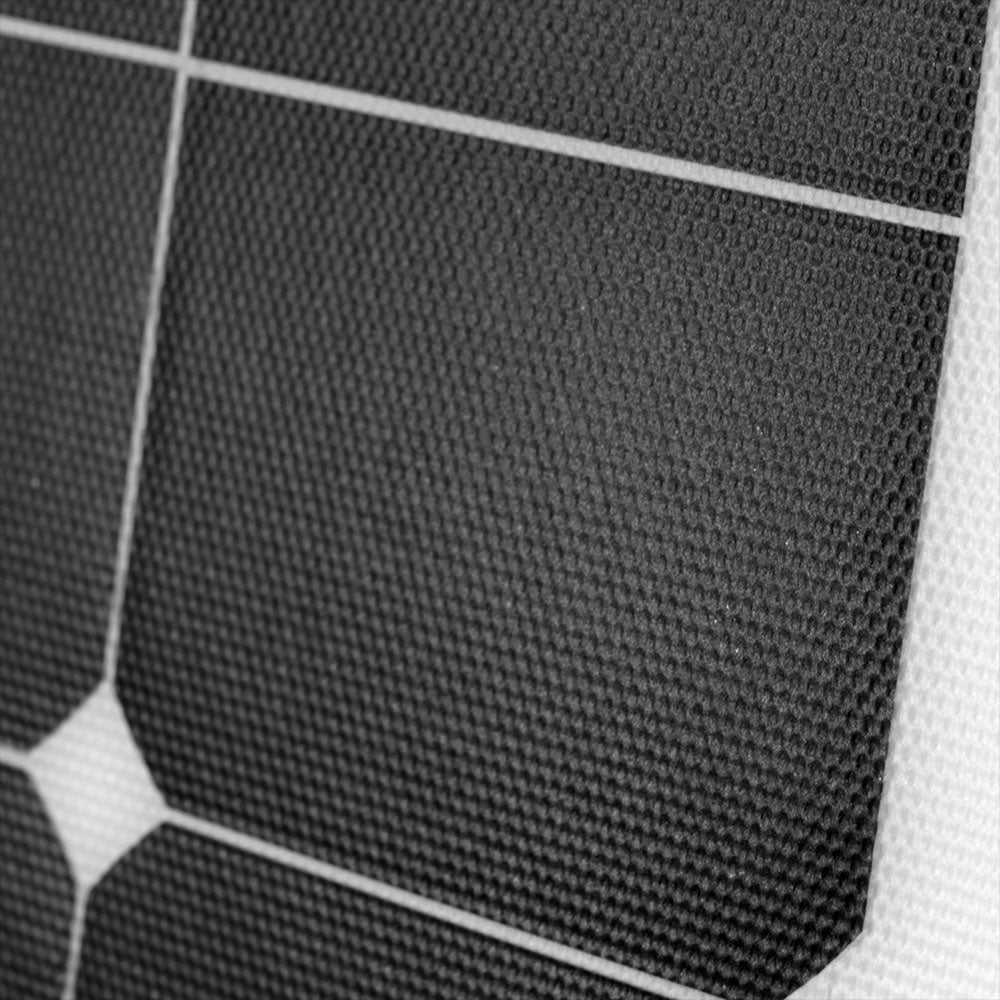

ETFE, high-tech plastic solar glass combined with SPR high-performance cells

The front of the solar panel is covered with a high-tech plastic layer based on ethylene-tetrafluoroethylene copolymer ETFE - a Teflon derivative (PTFE) - and offers excellent protection against harmful environmental influences and is also suitable for use in salt water environments. ETFE is lighter and at the same time more translucent than other plastic solutions on the market.

Technical characteristics of the ETFE SPR-F 160W solar panel

  • 160W rated power with an operating voltage of 27.3V and a current of 5.86A
  • walkable and, even when wet, more non-slip than comparable solar modules on the market
  • semi-flexible - bendable up to a maximum of 30 degrees
  • easy installation of the solar panel by gluing or using the eyelets
  • specially developed for long-term marine use
  • ETFE High-Tec plastic ensures weight savings and at the same time high light transmission of max. 96%
  • Junction box with protection class IP65

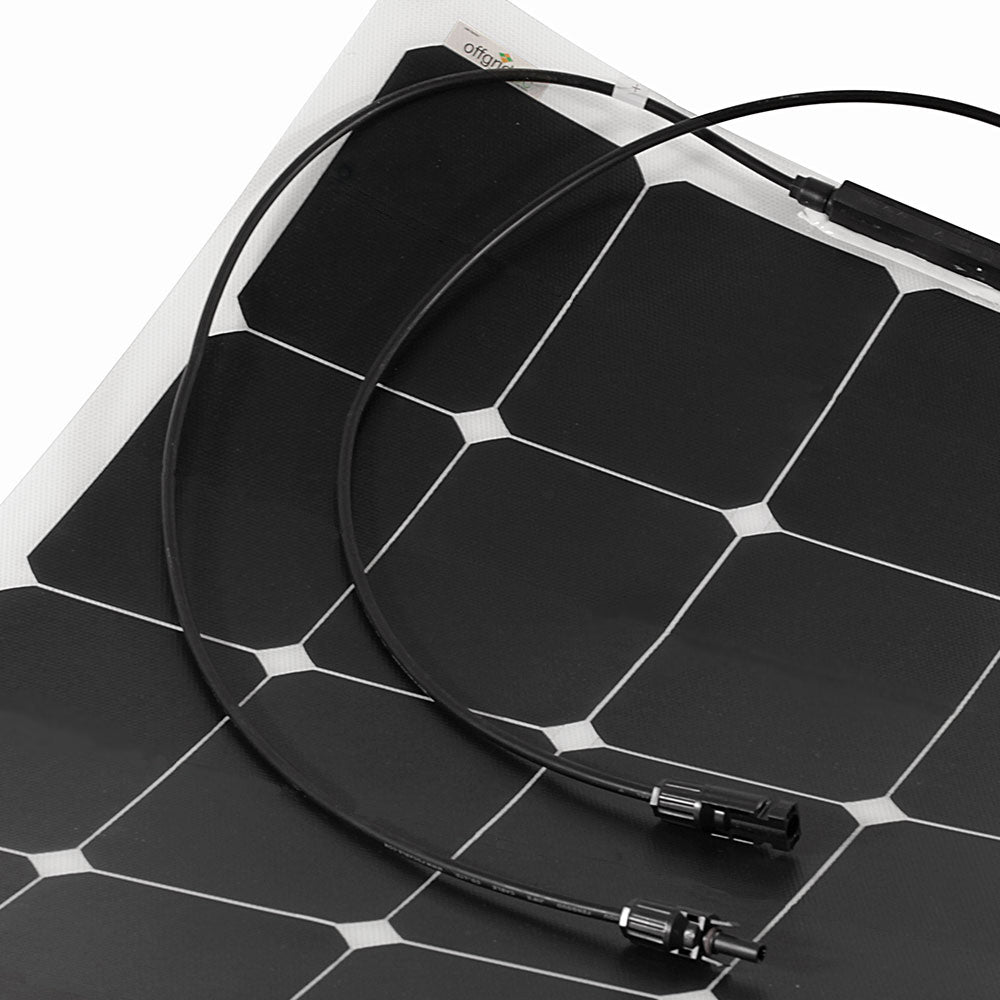

  • easy installation thanks to pre-assembled solar cable with MC4 plug and socket

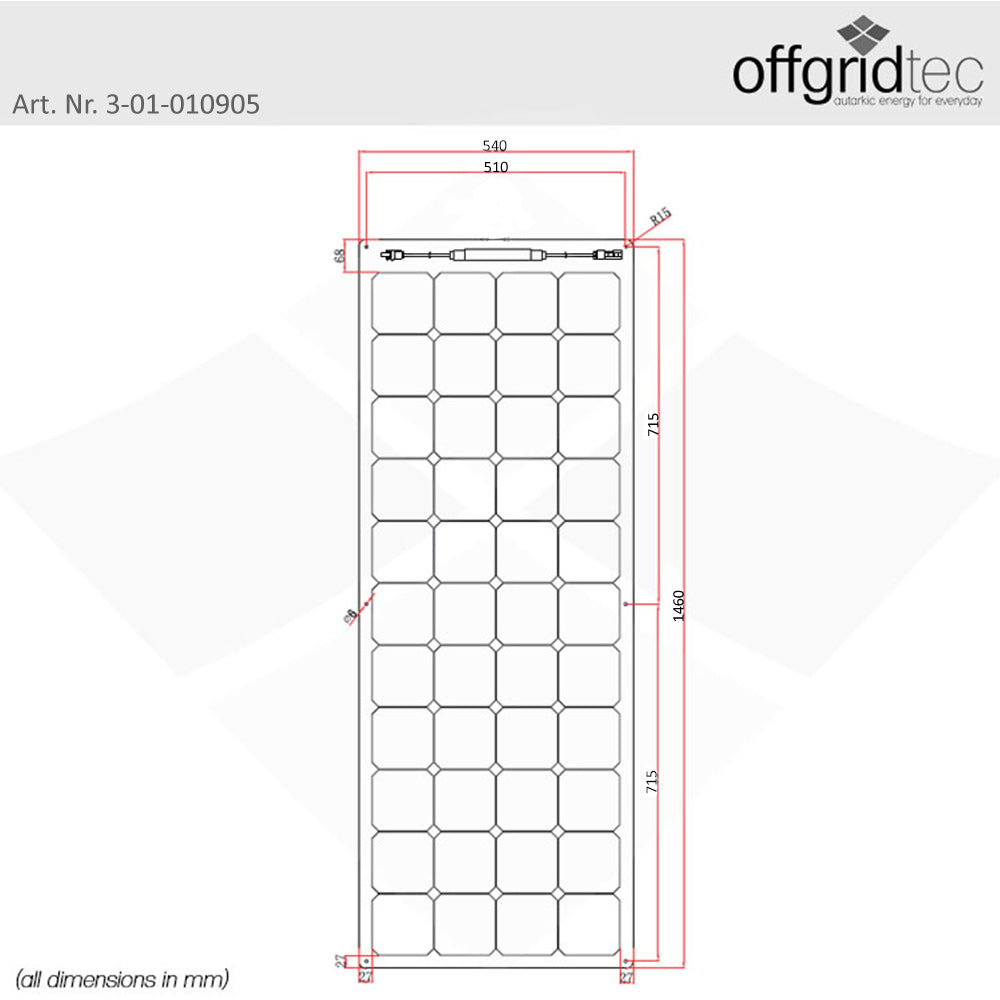

  • small dimensions (LxWxH): 1460 x 540 x 2mm
  • Installation of the solar panel by gluing or using the eyelets
  • Manufacturer Part Number (MPN): 010905
  • low weight: only 3 kg
  • proven Offgridtec quality: made exclusively from premium raw materials of the highest quality
  • About the ETFE series

    The Offgridtec ETFE solar panel series consists of a total of 7 modules in the power range from 20W to a maximum of 1120W. You can also find more information about the technical properties of the ETFE series in the official brochure.

    Scope of delivery:

    Offgridtec 3-01-010905 ETFE SPR-F-140 160W 12V solar module flexible

    data sheet

    Generator power wp

    160 Wp

    Solar panel - plug type

    MC4

    Solar panel - eyelets

    6 eyelets

    Solar panel - size grommets

    6.75mm

    Max system voltage

    45 v

    Solar panel - size connection cable

    4mm - 6mm

    Module Voltage (VMP)

    27.3v

    max current (IMP)

    5.86A

    Open Circuit Voltage (VOC)

    32.2V

    Short circuit current (ISC)

    6.21A

    Solar panel - cable length

    0.8m

    Solar module - connection box (IP)

    IP67

    cell type

    monocrystalline SPR high-performance cells

    system voltage

    12v

    ambient temperature

    -40°C - +85°C

    weight

    3.0kg

    cell efficiency

    >21%

    Manufacturer

    off-grid tec

    tolerance

    +/- 3%

    product type

    marine solar panel

    Solar panel - cable cross-section

    4mm

    Solar module - performance guarantee

    ten years*

    Solar panel - installed diodes

    2x IOSQO50 bypass diodes

    Solar module - walkability

    walkable*

    Solar Panel - Bendability

    max. 30 degrees

    Dimensions

    1460x540x2mm

    GPSR Information

    Hersteller
    Name: off-grid tec
    Anschrift: In the industrial park 11
    PLZ, Ort: 84307, Eggenfelden
    Land: Germany
    Email: info@offgridtec.com
