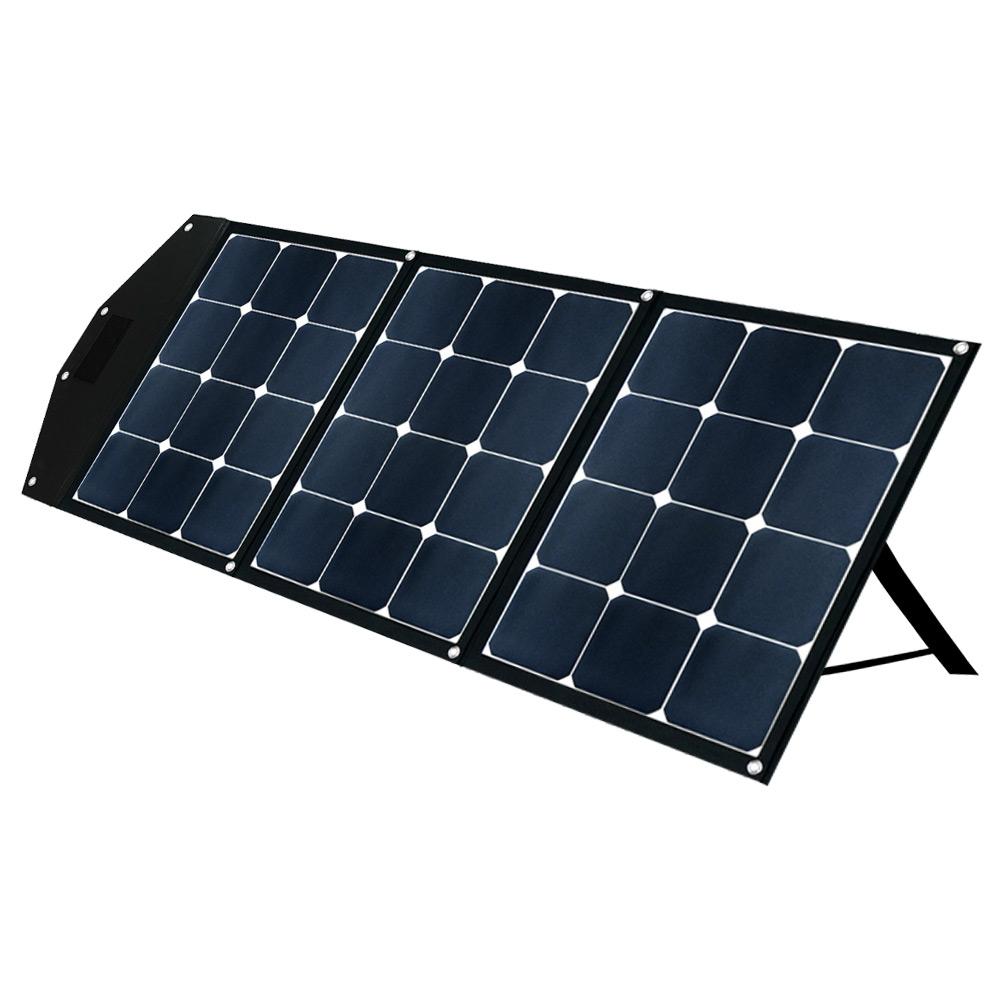

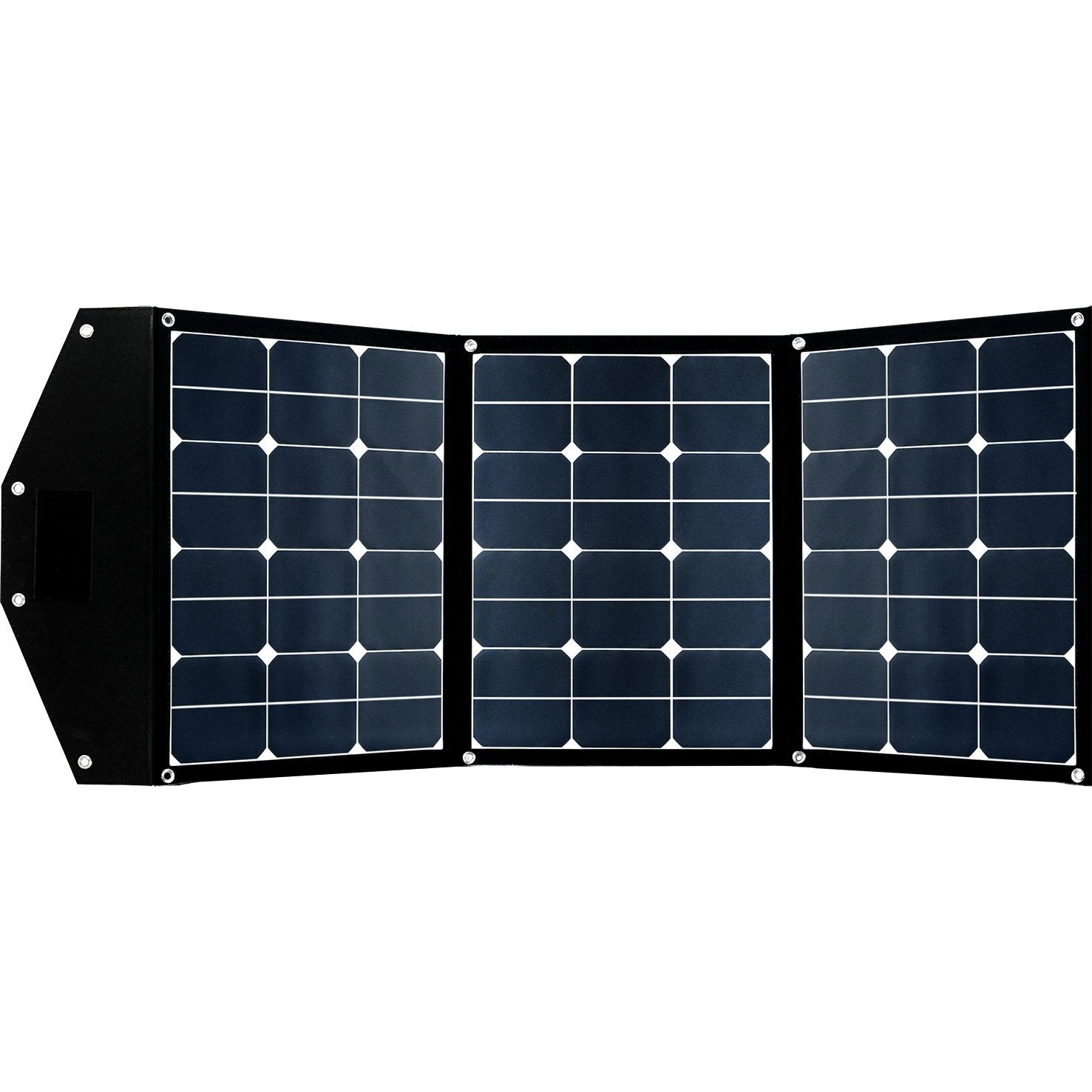

Offgridtec FSP-2 135W Ultra Foldable Solar Panel

The FSP-2 135W Ultra is a foldable, high-end solar panel with battery terminals and three integrated, foldable supports that allow you to easily set up the FSP-2 panel anywhere at a 45-degree angle. The FSP-2 Ultra is the successor to the MP-105W and is equipped with highly efficient solar cells, delivering a whopping 135W of solar power with optimal orientation and sunshine. Combined with its extremely compact dimensions when folded and its low overall weight, the FSP-2 sets new standards in flexibility and efficiency among mobile, foldable solar modules. The price of the new Offgridtec FSP-2 Ultra also sets standards among comparable panels and stands up to any comparison.

The basic solution for solar-assisted, mobile charging of batteries up to 200Ah:

• in the camping area
• on expeditions
• for vehicles and boats without fixed solar installation
• and numerous other applications in a wide variety of areas

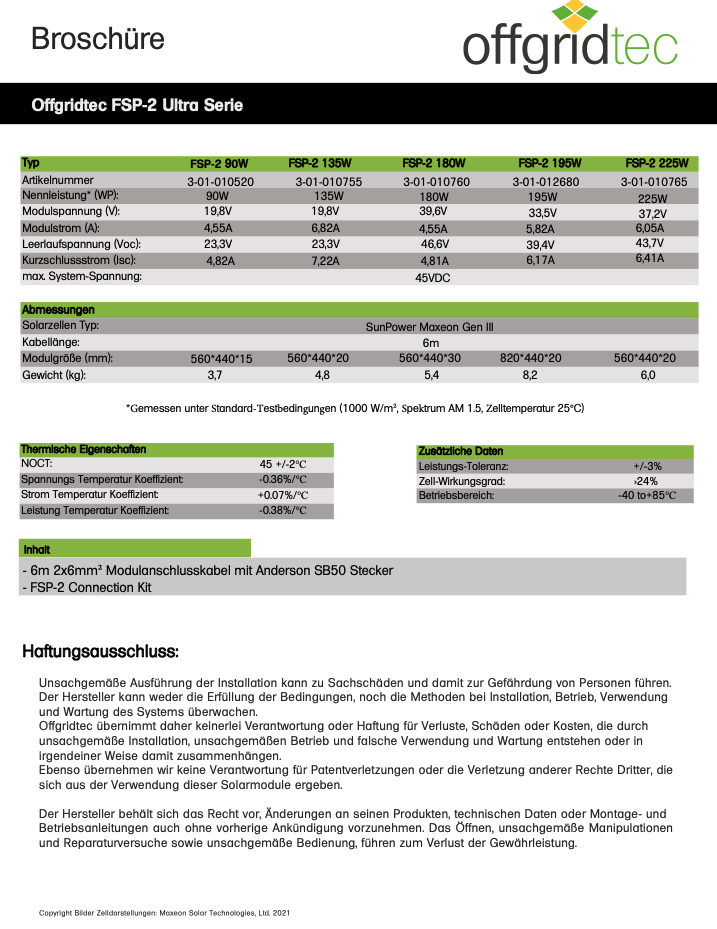

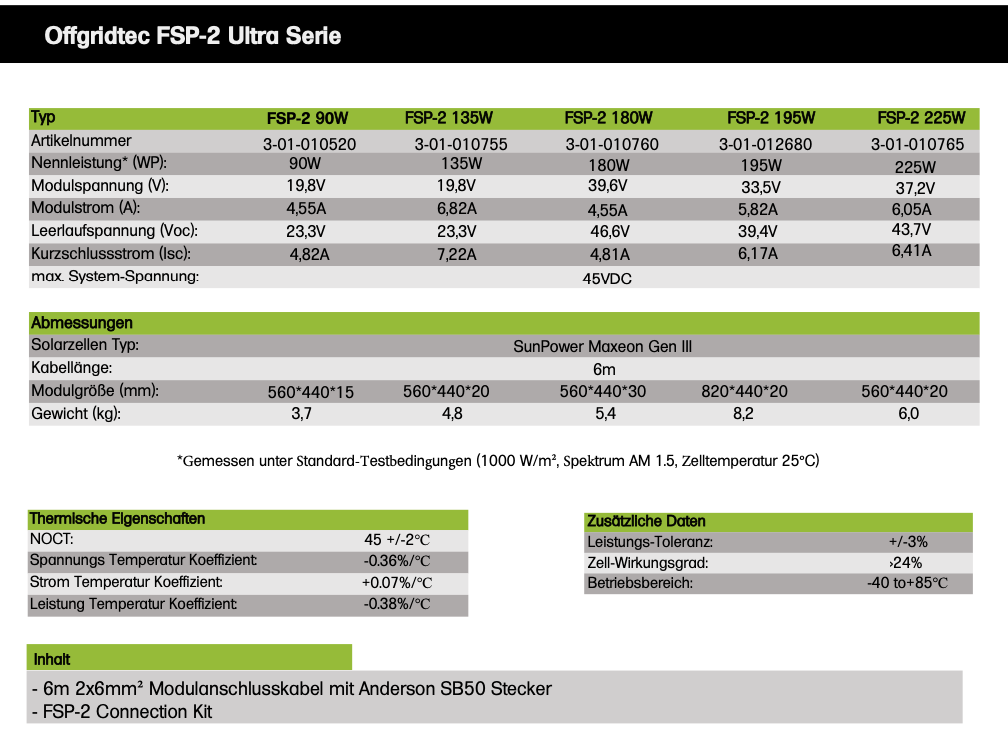

Technical data foldable solar module FSP-2 135W Ultra

• Rated power: 135Wp
• Module voltage (Vmp): 19.8V
• Max. charging current (Imp): 6.82A
• Open circuit voltage (Voc): 23.3V
• Short-circuit current (Isc): 7.22A
• Charge controller: not included

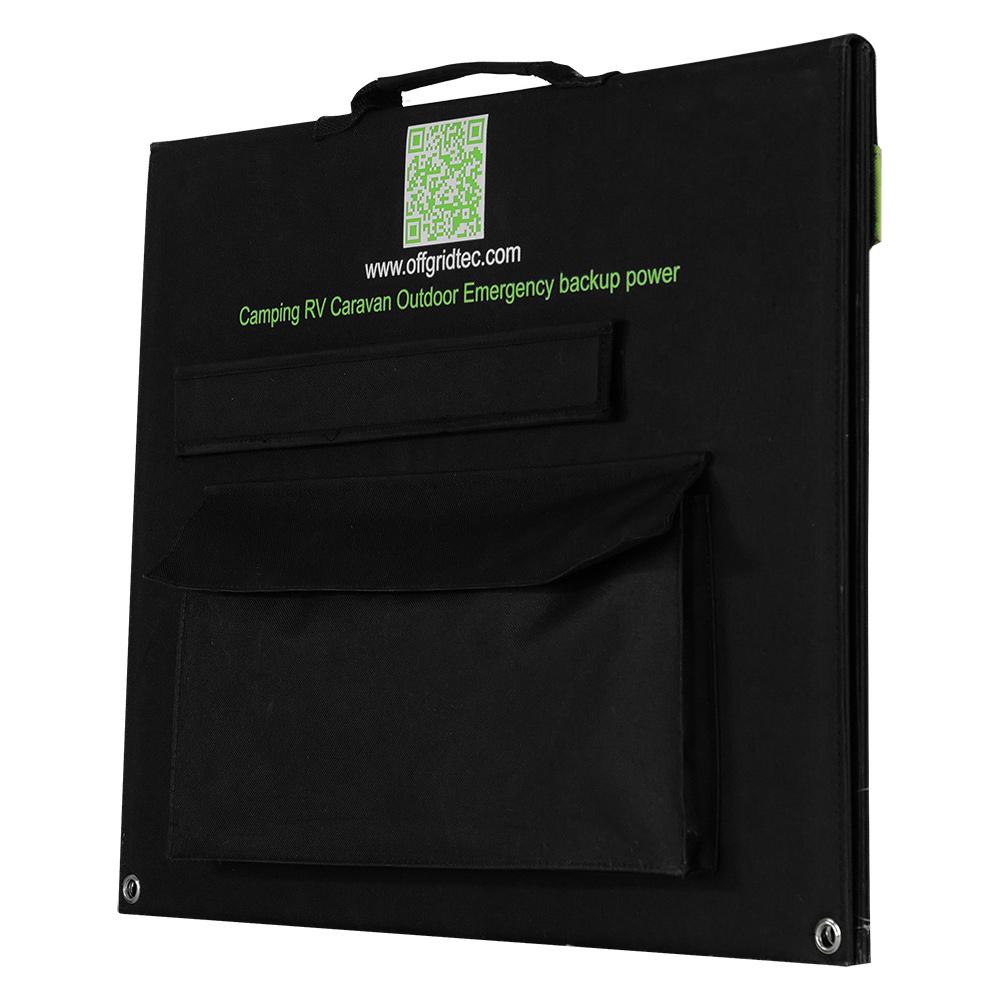

• Dimensions closed: 560 x 440 x 20 mm

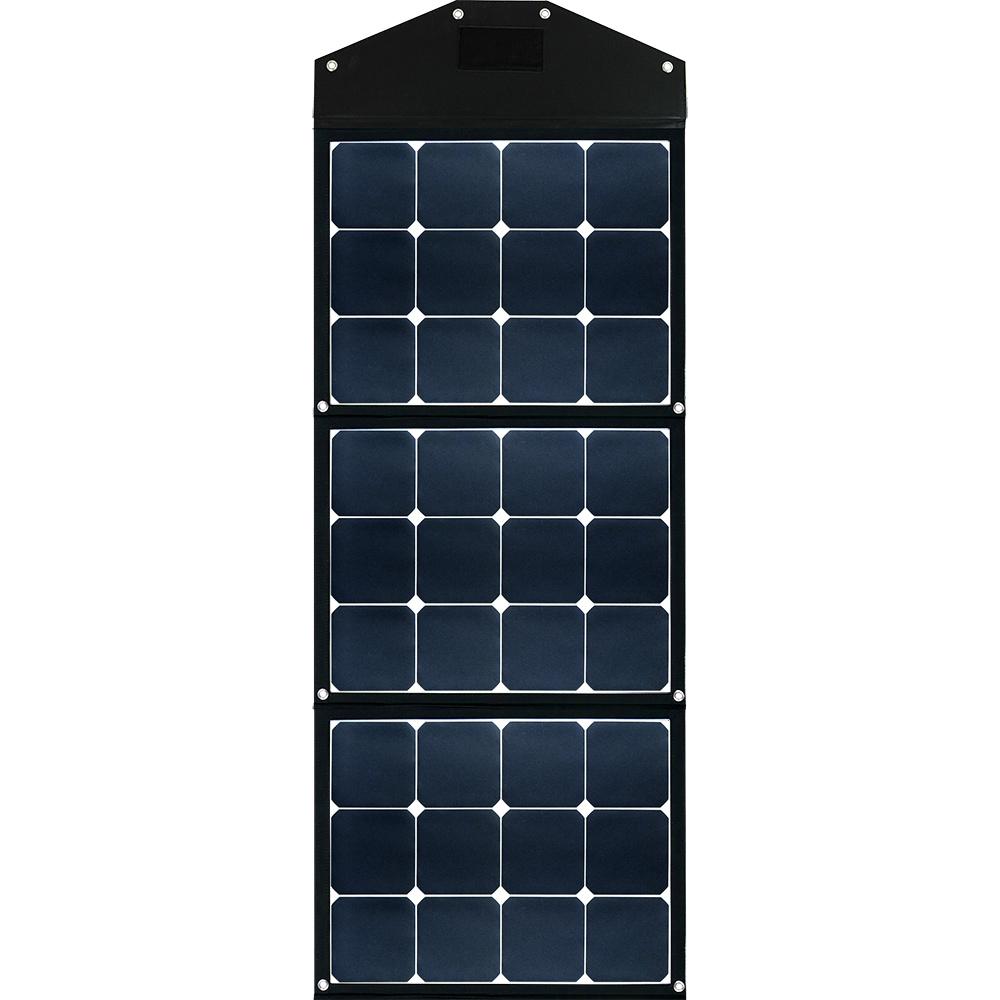

• Dimensions open: 560 x 1545 x 6 mm
• Weight: 4.8 kg
• ETFE coating
• SunPower high-performance cells
• 6.0m 2x6mm² connection cable from the FSP-2 to the solar charge controller with Anderson connector on the solar side
• 0.5m 5mm² connection cable Anderson plug to wire end ferrule (for permanent screw connection to the charge controller)
• 1m battery connection cable solar charge controller to battery with pre-assembled alligator clips on the battery side
• Short-circuit-proof connection to the battery thanks to integrated flat fuse holder with 15A ATO fuse
• 2-year warranty - Information on the warranty conditions can be found here

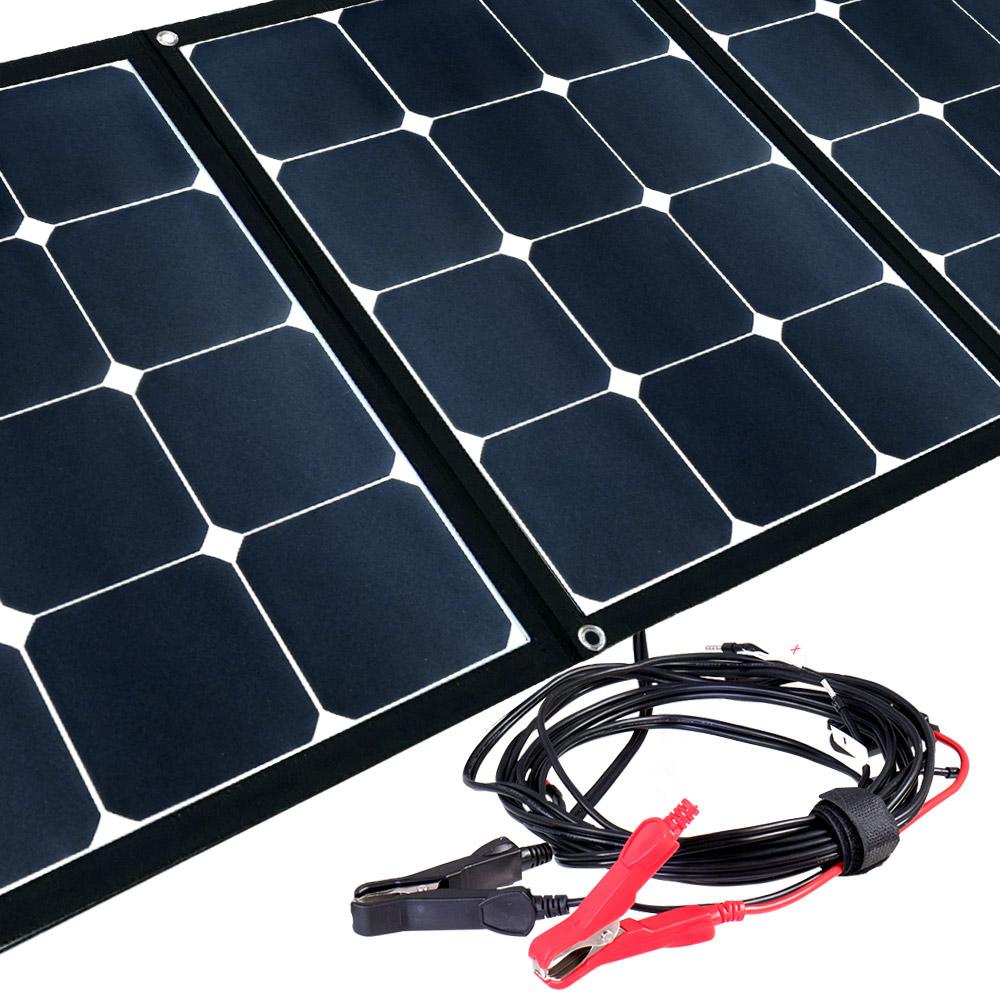

  The included professional connection kit

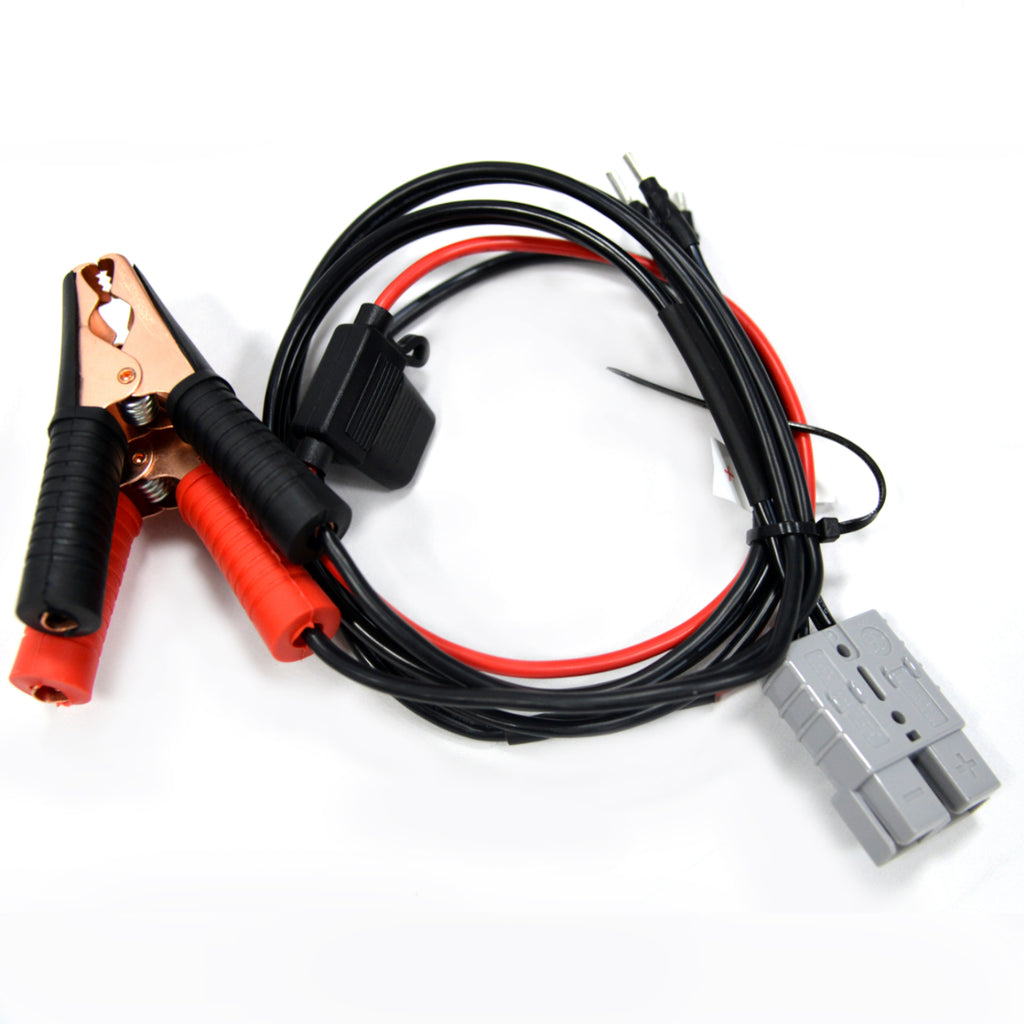

  The included connection kit provides everything you need to quickly set up the mobile solar set. Each FSP-2 features a 6.0m connection cable with a high-quality Anderson connector at the end. A second 0.5m connection cable is included, which connects directly to the solar input of the charge controller and also features an Anderson connector on the other end. This allows you to quickly connect or disconnect the controller at any time using the Anderson connectors, without having to unscrew the cables from the charge controller.

  A 1-meter-long plug-and-play cable is also included for connecting the charge controller to your battery. This cable is screwed onto the controller's battery input and is equipped with universal crocodile clips on the battery side, which are compatible and can be easily connected to all standard battery terminals. The battery cable also features a blade fuse holder with the appropriate ATO fuse. Easy to set up thanks to 3 permanently integrated feet. Three feet are sewn onto the FSP's case; these feet can be easily folded out if necessary to place the panel at an angle of just under 45 degrees to the ground. The module is fully assembled and ready for use within a minute.

  About the FSP-2 Series

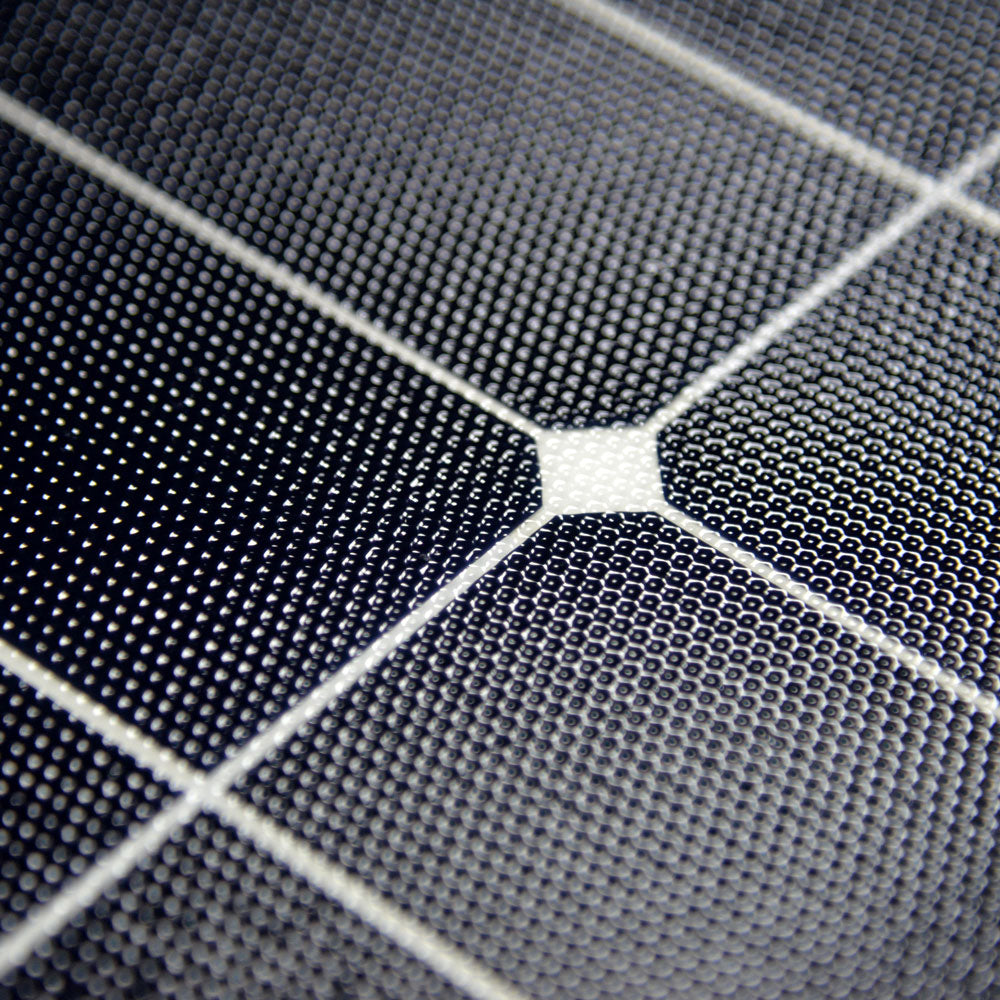

  As with all Offgridtec solar module series, high quality was also a priority for the FSP-2 series. The FSP-2 135 uses high-performance solar cells from SunPower. These cells generate efficiencies of over 22% and are the best currently available on the market. Additionally, the entire FSP-2 series features an ETFE coating, which provides better protection while ensuring very high light transmission. Furthermore, we manufacture our solar modules according to current norms and standards, which, together with the high-quality materials, makes our modules high-end products that deliver top technical performance even under the most adverse conditions.

  Scope of delivery:

  1x Offgridtec FSP-2 135W 12V 1x 6m 2x6mm² module connection cable with Anderson SB50 connector 1x Offgridtec FSP-2 connection kit
