Offgridtec FSP-2 180W Ultra KIT MPPT 15A

OffgridtecSKU: 3-01-010761

Price:
Sale price€319,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

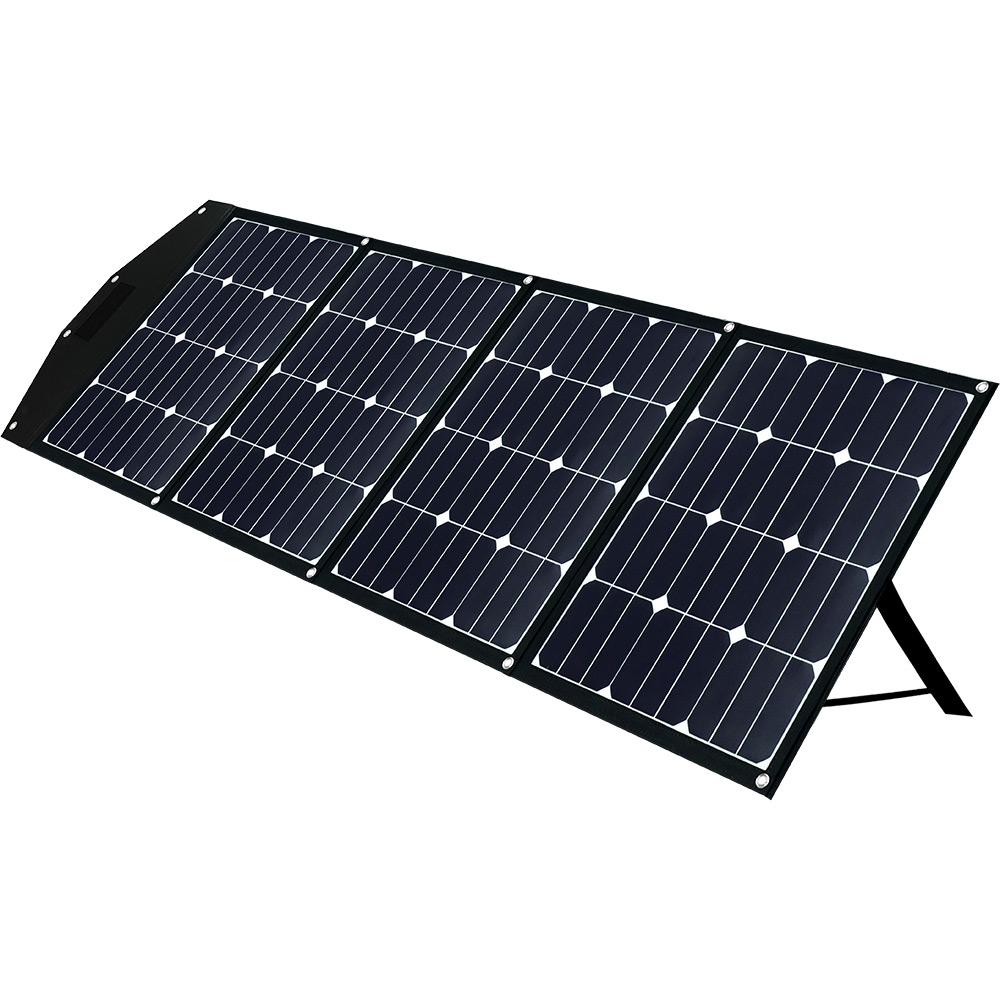

The FSP-2 180W ULTRA KIT 12V is a combination of the foldable 180W FSP-2 solar module and a smart MPPT controller of the latest generation. The FSP-2 180W is one of the newest models in the family and is also one of the most powerful foldable solar panels currently available. It has 4 sides and is supplied with a suitable connection kit, with which you can quickly and easily connect to the charge controller of your choice and the battery to be charged.

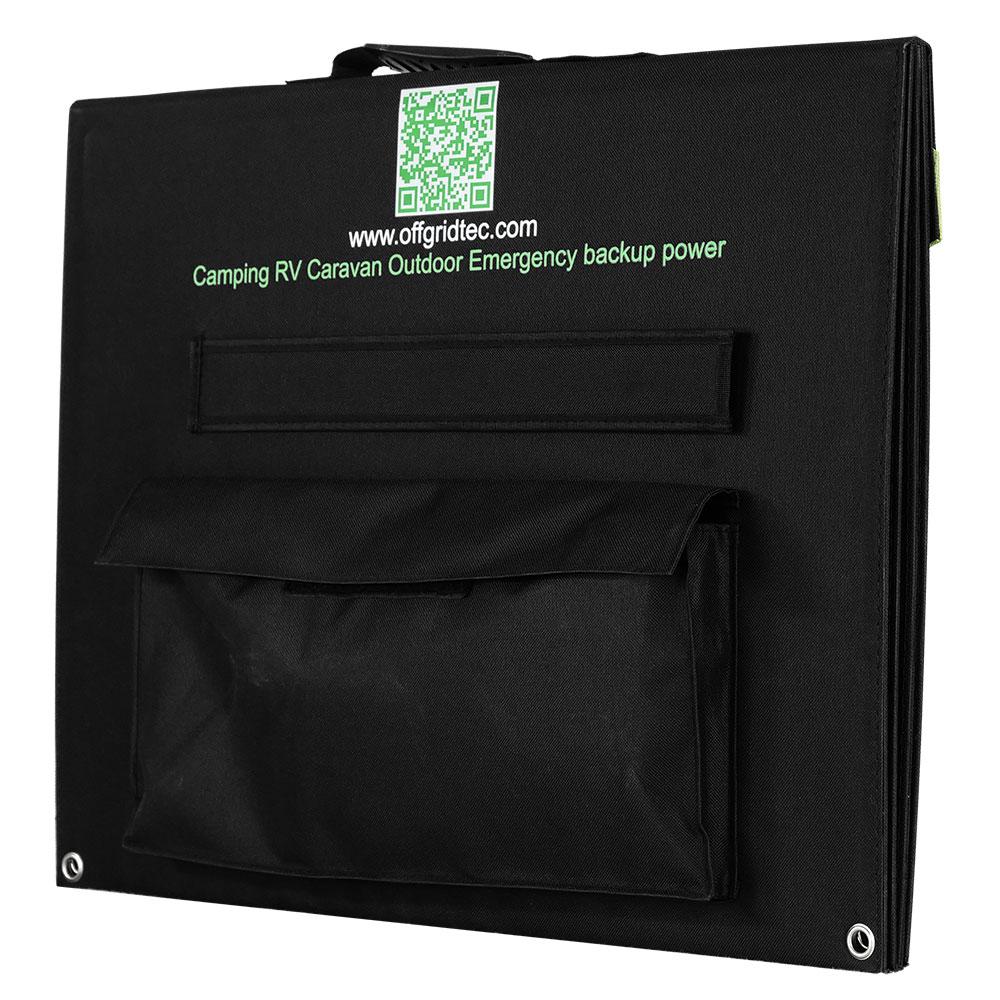

When it comes to charging technology, we rely on the high-quality Victron Smart-Solar 75/15 charge controller for the FSP-2 180W KIT MPPT. A high-quality device which can be conveniently controlled via Bluetooth and a free APP and is also equipped with a 15A load output for DC consumers. The connection kit is housed in a closable bag directly on the module. So you always have a small power plant at your side that can be used immediately.

Performance that sets standards

The FSP-2 180W Ultra is equipped with American SPR back-contact cells from a well-known American manufacturer. The look of the cells is completely black, which also gives the FSP-2 180W a very modern, high-quality look. The SPR cells ensure a very high level of panel efficiency and, in combination with the low weight and compact dimensions of the FSP-2 panel, set new standards in this performance class.

Extensive application possibilities:

  • excellent for use in the camping area
  • or on expeditions, climbing tours and much more...
  • for vehicles and boats without fixed solar installation ...
  • and numerous other applications in a wide variety of areas...

Technical Highlights FSP 2 180W Ultra Foldable Solar Panel

  • Rated power: 180Wp, number of sides: 4 x 45 Wp

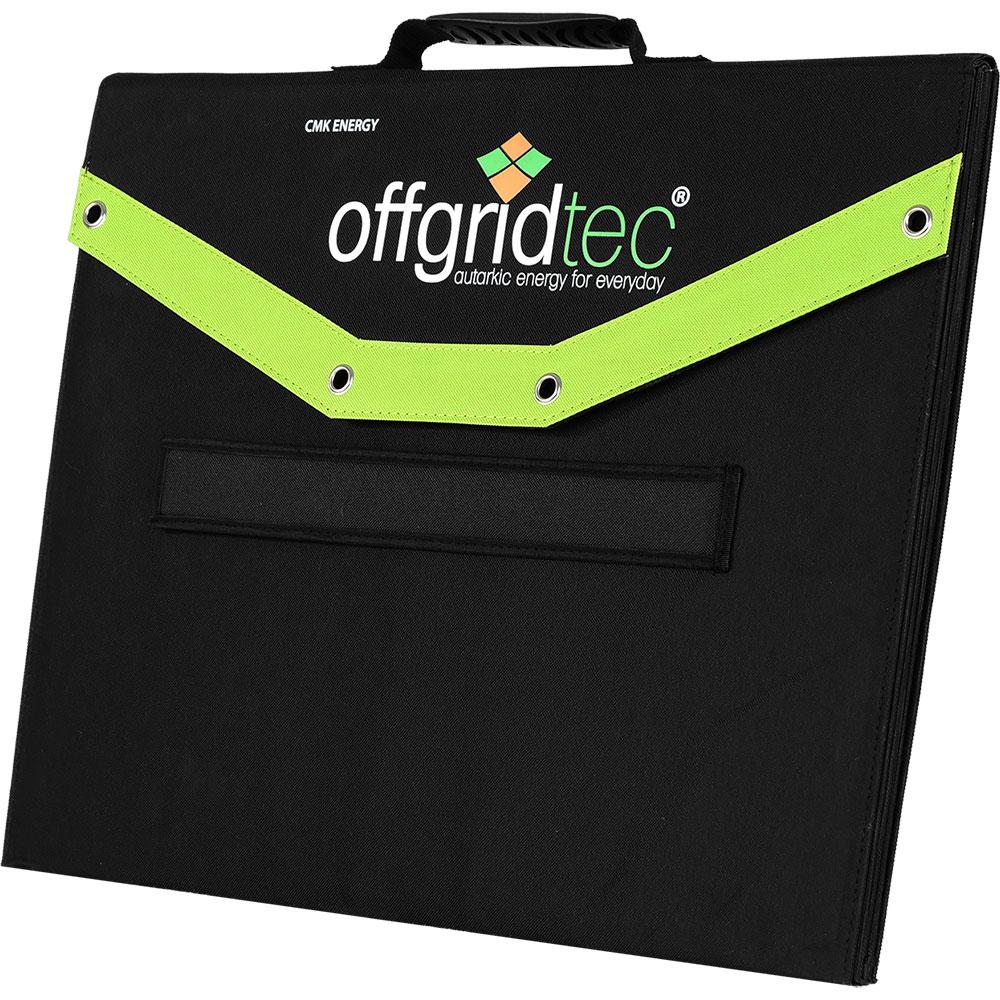

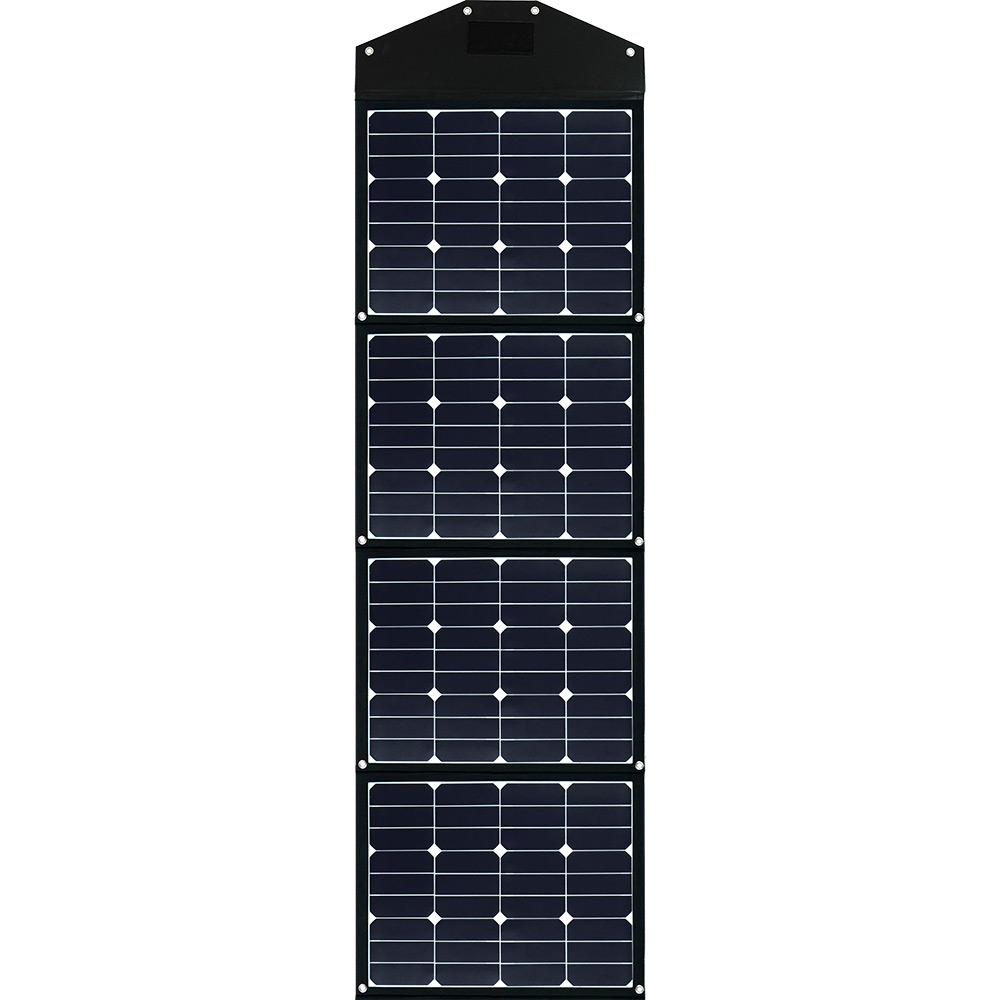

  • Dimensions closed: 560 x 440 x 30 mm, laid out open: 560 x 1970 x 6 mm
  • Lightweight: only 5.4 kg weight
  • incl. MPPT charge controller 75/15 15A and Bluetooth for configuration via free app
  • 15A load output for DC 12V power consumers
  • Equipped with high-end solar cells, made in the USA
  • Module Voltage (Vmp): 39.6V Max Charge Current (Imp): 4.55A
  • Open Circuit Voltage (Voc): 46.6V, Short Circuit Current (Isc): 4.81A
  • 6.0m 5mm² connection cable from the FSP-2 to the solar charge controller with Anderson connector on the solar side
  • 0.5m 5mm² connection cable Anderson plug to ferrule (for fixed screw connection to the charge controller)
  • 1m battery connection cable solar charge controller to battery with pre-installed alligator clips on the battery side
  • Short-circuit-proof connection to the battery thanks to the integrated flat fuse holder with 15A ATO fuse

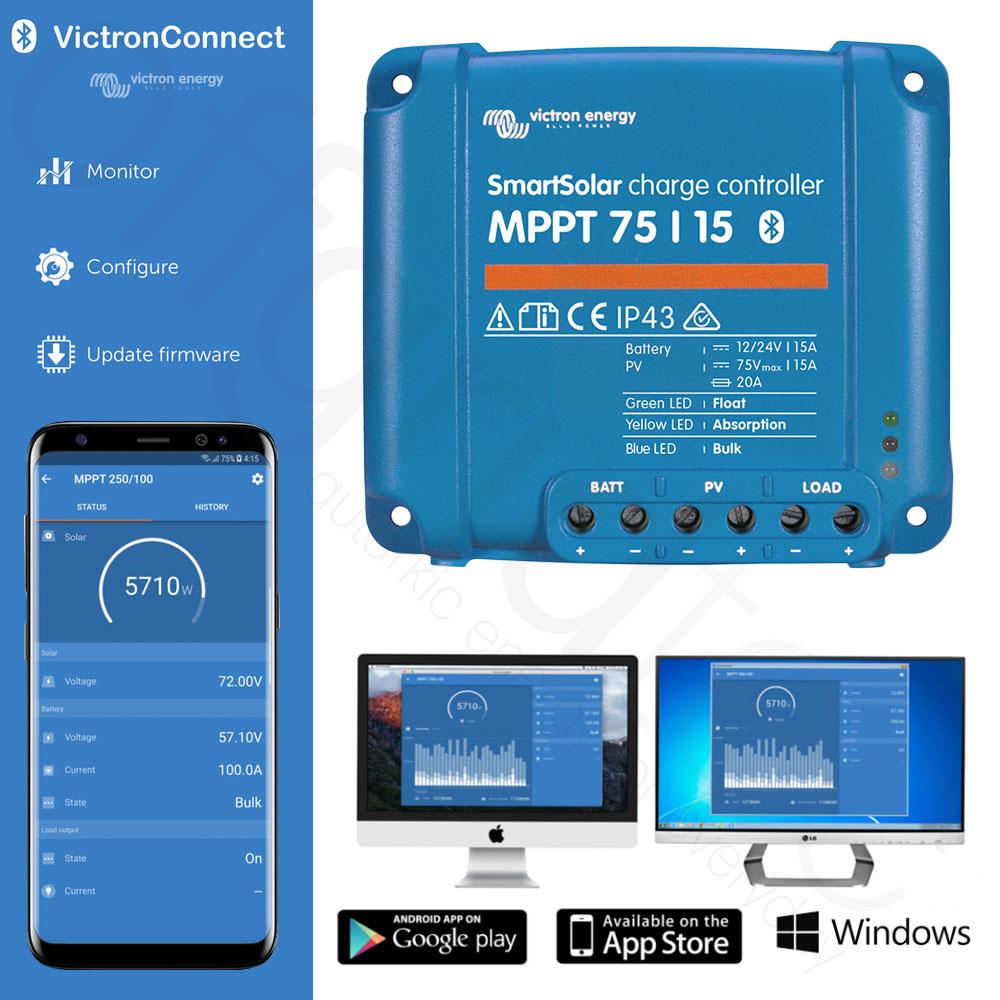

Including Victron SmartSolar 75/15 charge controller

The Victron Energy Smartsolar 75/15 (MPN SCC075015060R) is a MPPT solar charge controller with 15A max. charging current for charging 12V and 24V batteries. In contrast to the BlueSolar 75/15, the Smart version has integrated Bluetooth, making the purchase of a Bluetooth dongle unnecessary. In addition, a VE.Direct connection is still available for communication with other Victron devices such as the Color Control GX or the MPPT Control.

The integrated Bluetooth in the SmartSolar series is the wireless solution for setting up, monitoring and updating the controller using Apple and Android smartphones, tablets or other devices.

The most important technical data at a glance

  • 15A load output
  • High peak efficiency of 98%
  • Freely programmable battery charging algorithm (via the free Victron Connect app)
  • Programmable light dimming functions (via the free Victron Connect app)
  • Ultra-fast maximum power point tracking
  • Max. PV open circuit voltage: 75V
  • Charging algorithm: multi-stage, adaptive
  • Integrated Bluetooth module
  • Dimensions: 100 x 113 x 40mm
  • Weight: 0.5kg

The supplied professional connection kit

The connection kit included in the scope of delivery offers everything that is required for quick commissioning of the mobile solar set. Each FSP-2 has a 6.0m connection cable, which is fitted with a high-quality Anderson connector at the end. A second 0.5m connection cable is supplied that is screwed directly to the solar input of the charge controller and is also equipped with an Anderson plug on the other side. You can quickly connect or disconnect the controller at any time via the Anderson connectors without having to unscrew the cables from the charge controller.

A 1 meter plug & play connection cable is also included for connecting the charge controller to your battery. This is screwed to the battery input of the controller and is equipped with universal alligator clips on the battery side, which can be conveniently connected to all common battery terminals. In addition, the battery cable has a blade fuse holder with the appropriate ATO fuse.

About the FSP-2 series

As with all Offgridtec solar module series, great value was also placed on high quality and durability with the FSP series. The FSP 2 180W Ultra works with rear-contact solar cells, which are also used in our SP high-performance series. These cells generate efficiencies of over 22% and are the best currently available on the market. In addition, we produce our solar modules in accordance with current norms and standards, which, together with the high-quality materials, makes our modules high-end products that deliver top technical performance even under the most adverse conditions.

Scope of delivery:

1x Offgridtec FSP-2 180W 12V, 3-01-010760

1x Victron Energy SCC075015060R Smartsolar MPPT 75/15 15A 12V 24V solar charge controller

1x Ofgridtec FSP-2 Connection Kit

data sheet

Generally

Generator power wp

180 Wp

Solar panel - cell type

SPR monocrystalline high-performance cells (original Sunpower)

Short circuit current (ISC)

6.41A

Open Circuit Voltage (VOC)

46.6V

cell efficiency

>24%

Dimensions module

560x440x30mm

Module Voltage (VMP)

39.6v

system voltage

12V / 24V

Solar panel - plug type

Anderson connectors

Solar panel - cable length

4.5m

Temperature coefficient 1

-0.45% / °C

EAN

4250983255973

Manufacturer part number

010761

guarantee

2 years

tolerance

+/- 3%

humidity

100% max, non-condensing

Manufacturer

off-grid tec

weight

5.9kg

ambient temperature

-20°C - +50°C

max current (IMP)

4.55A
