Offgridtec FSP-2 225W Ultra foldable solar module

OffgridtecSKU: 3-01-010765

Price:
Sale price€349,65 EUR Regular price€427,73 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

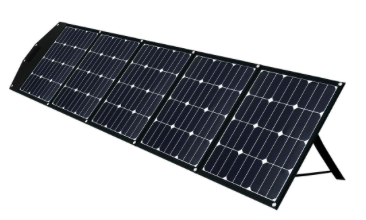

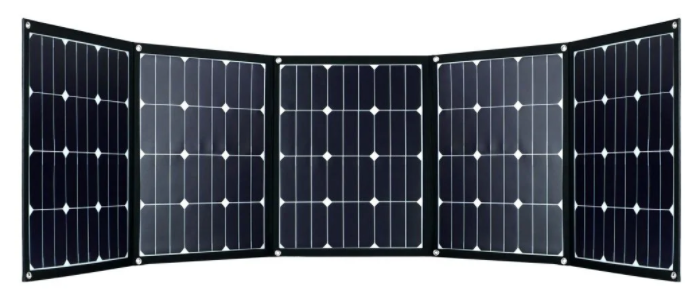

The FSP-2 225W 12/24V Is the biggest member of the Offgridtec FSP family and is also one of the most powerful, foldable solar modules in the program. It is set up 5 sides and is delivered, including a suitable Connection kit, with which you can quickly and easily connect to the charge controller of your choice and the battery to be invited. The Connection kit is located in a lockable bag, directly on the module.

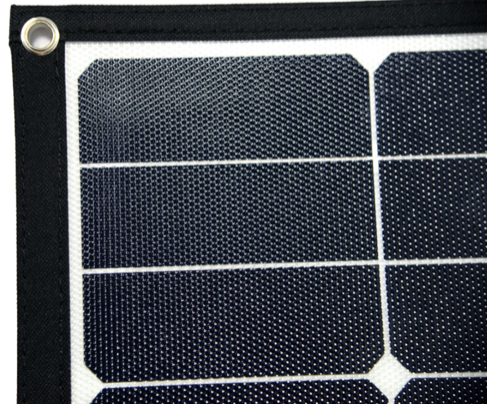

The FSP-2 225W Ultra is with American Spr-Back Contact Cells of a well -known manufacturer. The look of the cells is completely in black, which also gives the FSP-2 225W a very modern, high-quality appearance. The SPR cells ensure a very high efficiency of the panel and, in combination with the low weight and the compact dimensions of the FSP-2 panel, set new standards in this performance class.
Operations in all outdoor areas of Camping, for vehicles and boats without a fixed solar installation ...

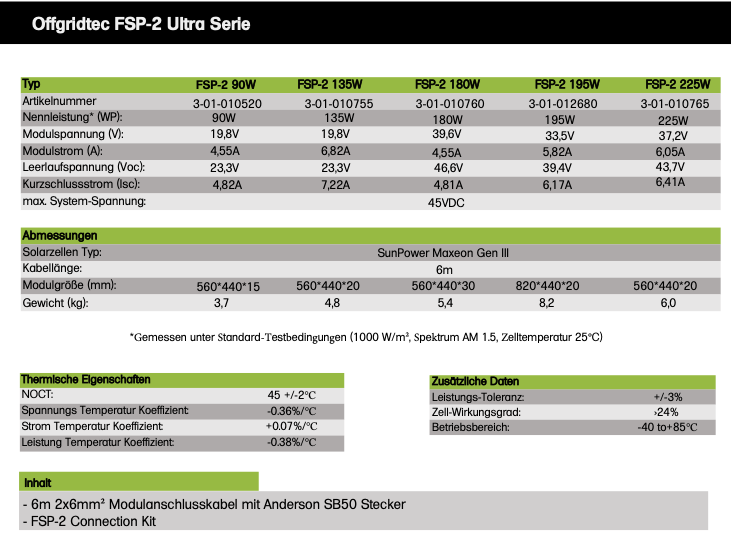

Technical details:
Nominal output: 225wp
Number of pages: 5 x 45 WP
Module voltage (VMP): 37.2 V
Max. Charging current (IMP): 6.05 a
Limitation voltage (VOC): 43.7 V
Short circuit current (ISC): 6.41 a

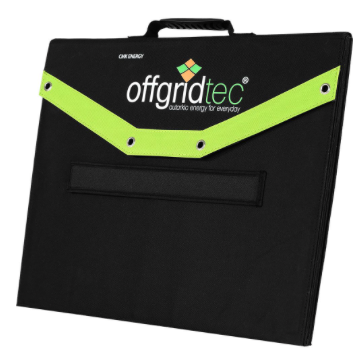

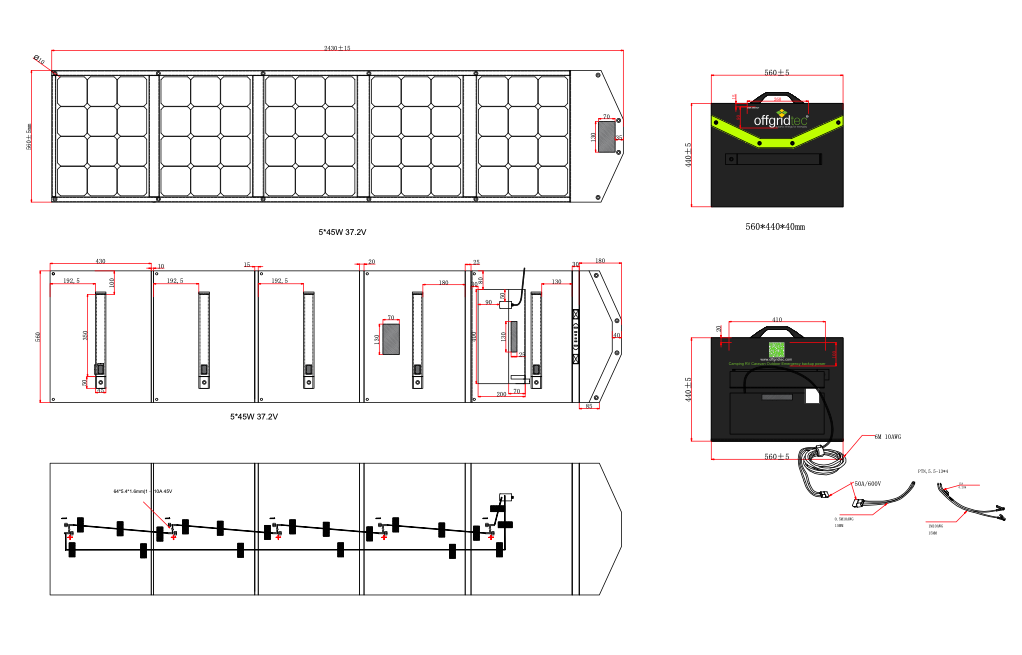

Dimensions closed: 560 x 440 x 20 mm
Dimensions interpreted: 560 x 2430 x 8 mm
Weight: 6 kg
ETFE coating
Sunpower high -performance cells
6.0m 2x6mm² connecting cable from the FSP-2 to the solar loader with Anderson connector on the solar side
0.5m 5mm² connecting cable Anderson connector on the wire end sleeve (for firm screwing on the loader)

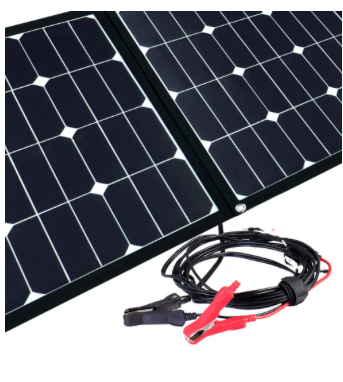

1M battery connection cable solar loader with battery with pre -assembled offset clamps on the battery side
Short -circuit -safe connection to the battery thanks to the integrated flax safety holder with 15a ato fuse

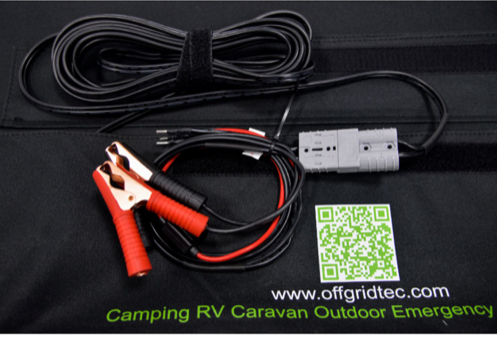

The scope of delivery Connection kit offers everything that is needed for quick commissioning the mobile solar set. Each FSP-2 has a 6.0m junction line, which is ultimately provided with a high-quality Anderson connector. In keeping with this, a second 0.5m connection cable is included that is screwed directly at the solar entrance of the loader, and on the other hand is also equipped with an Anderson connector. In this way, you can quickly pair or separate the controller via the Anderson connector at any time without having to unscrew the cables from the loader control.

There is also a 1 meter long plug & play connecting cable to connect the loader with your battery. This is screwed to the battery input of the controller and is equipped on the battery side with universally applicable crocodile terminals, which can be easily connected to all common battery minals. In addition, the battery cable has a flax safety holder with the appropriate ATO fuse.

About the FSP-2 series
As with all offgridtec solar module series, the FSP series also places great importance to high quality and durability. The FSP 2 225W Ultra works with solar cells that are also used in our SP high-performance series. These cells generate efficiencies of over 24% and are currently available on the market. In addition, the complete FSP-2 series is provided with an ETFE coating, which ensures better protection and at the same time ensures very high light permeability. We also produce our solar modules according to current standards and standards, which makes our modules together with the high-quality materials to make high-end products that bring technical top performance even under the most adverse conditions.

scope of delivery:
1x offgridtec FSP-2 225W 12/24V, 3-01-010765
1x 6m 2x6mm² module connection cable with Anderson SB50 connector
1x offgridtec FSP-2 Connection kit
