SUNBEAMsystem Nordic 54W Jbox

SUNBEAMsystemSKU: N54x53JB


Due to the holidays and the subsequent inventory, there may be delays in delivery times. Parcel deliveries will be made until December 23 and between the holidays, while freight deliveries will be possible in isolated cases until December 23 and again from January 7, 2026. We apologize for any inconvenience and thank you for your understanding.

Price:
Sale price€131,90 EUR Regular price€139,00 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Nordic series was one of the main reasons for the founding of SUNBEAMsystem: the vision to develop a solar module for northern regions with a perfect balance between price and innovation.
Nordic offers compact yet powerful solar modules, engineered to withstand the demanding conditions at sea. All modules feature a special cell arrangement for improved partial shading performance unmatched by competitors.
The Nordic models with the flush attachment are supplied without mounting holes, making them ideal for glued applications.

-
Powerful and compact
- Improved partial shading performance
- Available as a flush version
- Flexible panel
- walkable coating
- 0.8 m supply cable

- Junction Box
- 2-year warranty

All values ​​measured under standard test conditions:
1000W/m2, AM 1.5 at 25 degrees Celsius
Temp coefficient for Isc 0.05 (% / ° C)
Temp coefficient for Voc -0.27 (% / ° C)
Temp coefficient of Pmax -0.38 (% / ° C).
C100 is intended for rigid mounting and should not be used on a tarpaulin. For flexible use, we recommend the SP50Loxx or SP50.

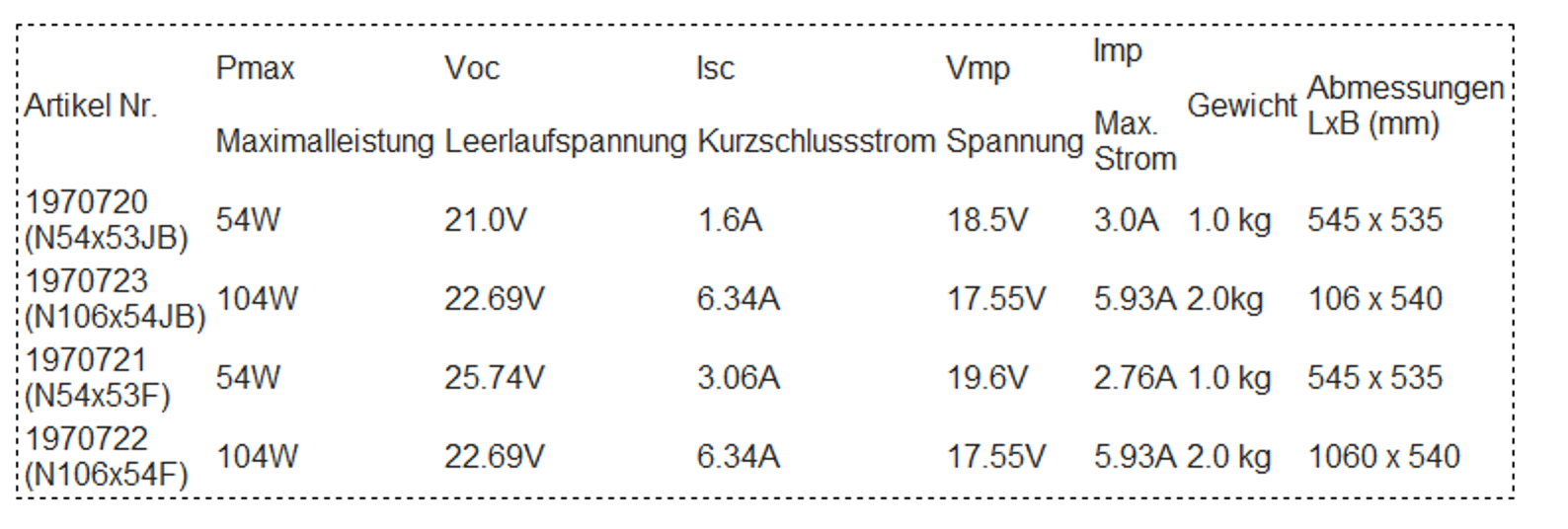

Technical data

Article name

Nordic 54W Jbox

Article No.

1970720

Dimensions

545 x 535 mm

Weight

1 kg

Pmax - Max. power

54 W

Voc - Voltage open circuit

21.0 V

Lsc - short-circuit current

1.6 A

Vmp - Max. system voltage

18.5 V

Imp - Max. Current

3.0 A

Ptol - Power Tolerance

+/- 5%

solar cells

Sunpower

Max sys voltage (including by-pass diode)

30V

Cable length

1.5 m

High shade tolerance

Yes

holes

-

Note: When connecting in series, always pay attention to the permissible max. system voltage of the solar panel

GPSR Information

Hersteller
Name: SUNBEAMsystem AB
Anschrift: Torsgatan 1
PLZ, Ort: 11175, Stockholm
Land: Sweden
Email: info@sunbeamsystem.se
