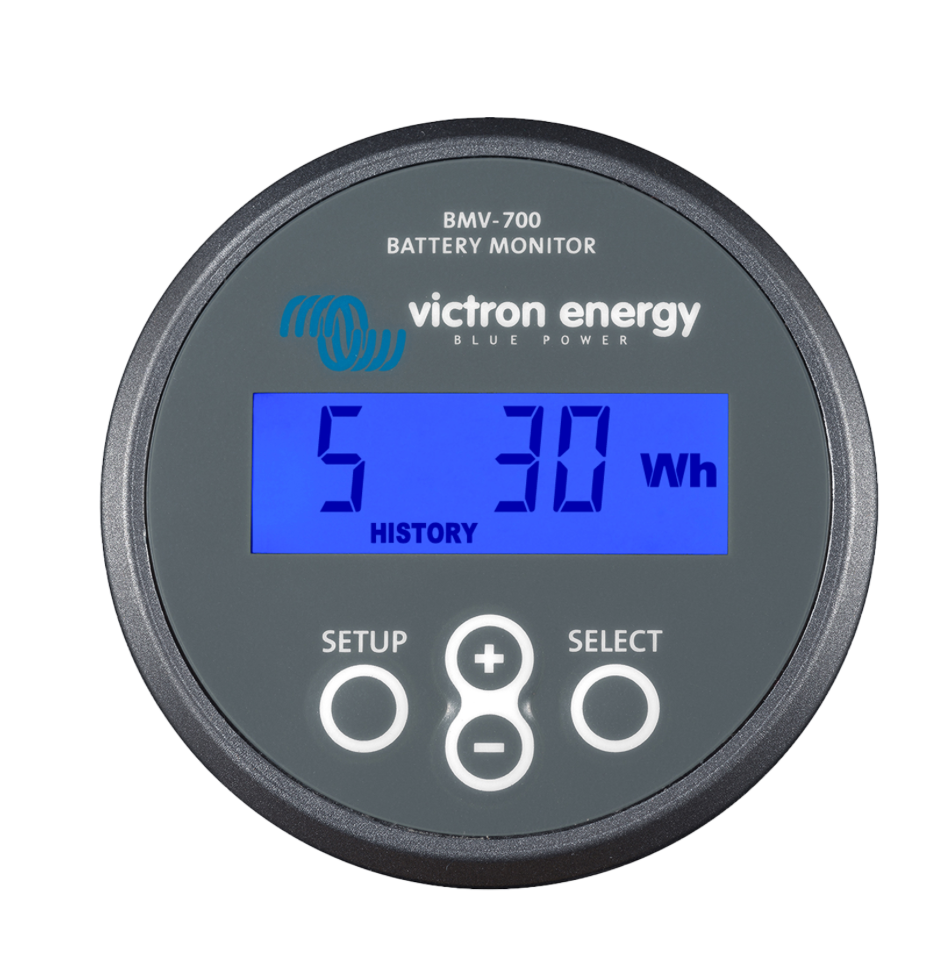

Victron Battery Monitor BMV-700

Victron EnergySKU: BAM010700000

Price:
Sale price€117,81 EUR Regular price€140,42 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

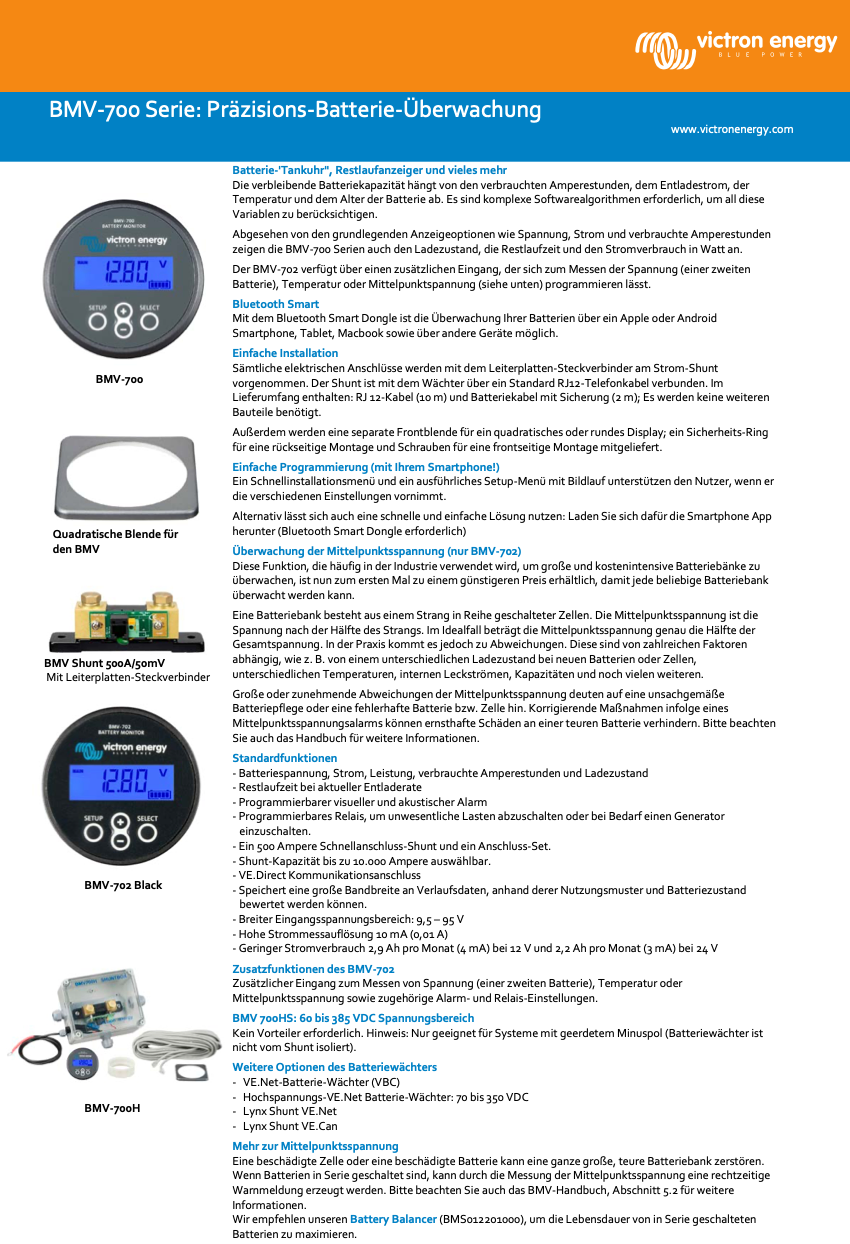

BMV 700 battery monitor

Precise monitoring
The main task of battery monitoring is to record used ampère hours and the current battery charge status. The ampère hours are determined by integrating the current flow into or from the battery. With constant current, the integration of the multiplication of electricity and time corresponds. For example, a discharge current of 10a over 2 hours results. a value of 20Ah. Victron battery guards are equipped with powerful and moderate microprocessors.

Battery "tank clock", remaining runner and much more
The remaining battery capacity depends on the used ampers' hours, the discharge current, the
Temperature and the age of the battery. Complex software algorithms are required to all of them
To take into account variables.
Apart from the basic display options such as voltage, electricity and consumed
The BMV-700 series also shows the loading status, the remaining term and power consumption in
Watt on.

easy installation
All electrical connections are used with the circuit board connector on the Strom-Shunt

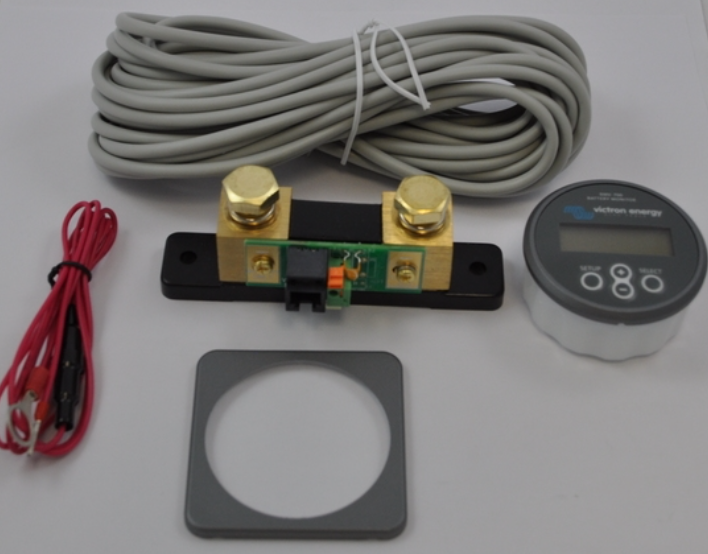

performed. The shunt is connected to the guard via a standard RJ12 telephone cable. In the
Scope of delivery included: RJ 12 cable (10 m) and battery cable with fuse (2 m); There will be no more
Components needed.

In addition, a separate front panel for a square or round display becomes; A security ring
supplied for a rear assembly and screws for a front -side assembly.

Simple programming
A quick installation menu and a detailed setup menu with scrolling supports the user when it
make the different settings. Please note the manual for further details.

Standard functions
- Battery voltage, electricity, power, used amperpers and charging status
- Remaining term with current discharge rate
- Programmable visual and acoustic alarm
- Programmable relays to switch off insignificant loads or if necessary a generator
switch on.
-A 500 amper rapid connection shunt and a connection set.
- Shunt capacity of up to 10,000 amps can be selected.
- Ve.direct communication connection
- Save a wide range of course data, based on which usage patterns and battery status
can be evaluated.
- Wide input voltage area: 9.5- 95 V
- High current measuring resolution 10 MA (0.01 a)
- Low power consumption 2.9 AH per month (4 mA) at 12 V and 2.2 AH per month (3 MA) at 24 V
 Other components are not required.
- Easy installation: separate front panels (square or round), ring for back attachment.


You can find the right wall holder here.


Resolution and accuracy(with a 500 a shunt)
Electricity ± 0.01 a
Tension ± 0.01 V
Ampers' lessons ± 0.1 Ah
Charging status (0-100%) ± 0,1 %
Remaining term ± 1 min
Access of electricity measurement ± 0,4 %
Accuracy of the voltage measurement ± 0,3 %
Stand up
Security En 60335- 1
Emissions / immunity EN 55014-1 / EN 55014- 2
Automotive industry ECE R10-4 / EN 50498
Accesories
Shunt (supplied) 500A/50 MV

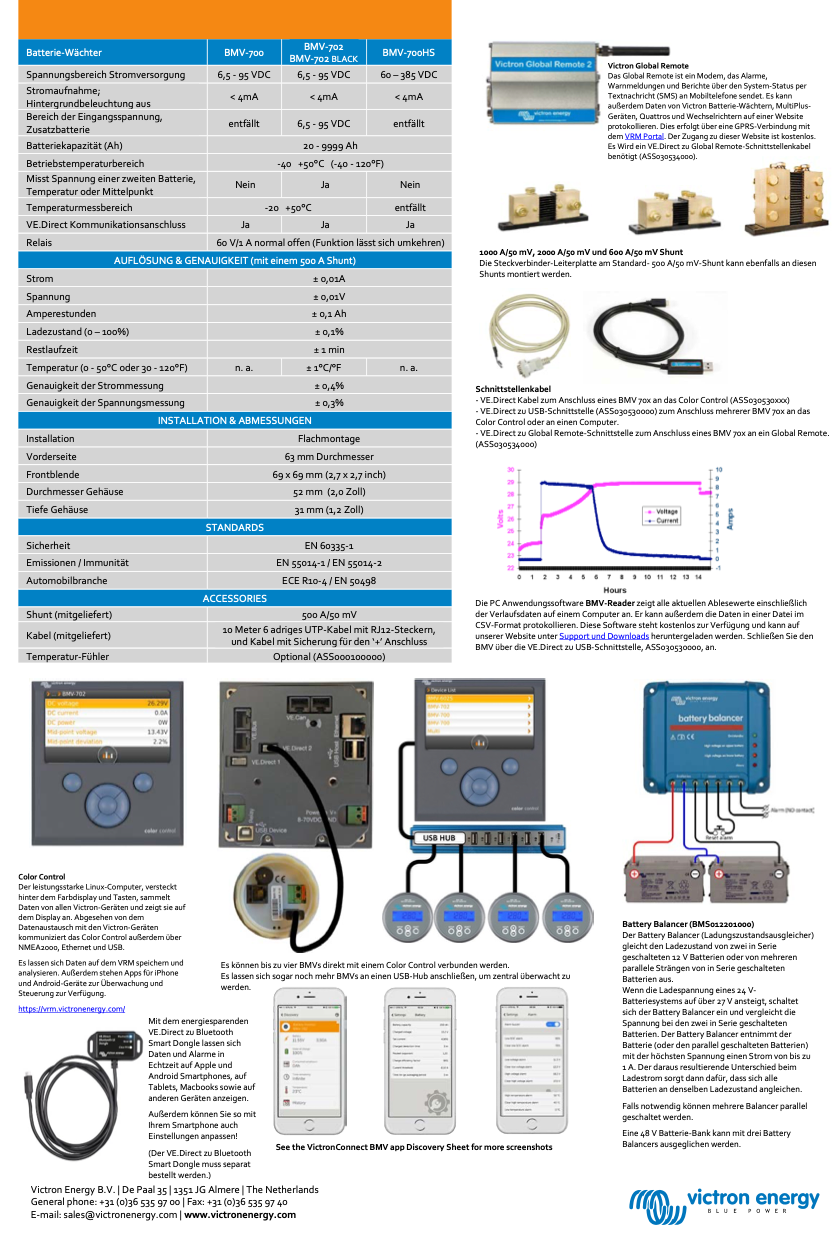

data sheet

Generally
Manufacturer part number BMV-700 | BAM010700000
Manufacturer Victron Energy
Electricity <4 ma
Accesories Shunt 500A/50MV (included)
installation Flat assembly
VE-DIRECT-COMM Yes
Temperature measuring range -20 ... +50 ° C (0 - 120 ° F)
Operating temperature range -25 ... +50 ° C (0 - 120 ° f)
relay 60 V/1a normally open (function can be reversed)
EAN 8719076020073

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
