Victron Battery Monitor BMV-700H

Victron EnergySKU: BAM010700100

Price:
Sale price€489,00 EUR Regular price€643,79 EUR

Tax included Shipping calculated at checkout

Shipping in 8-10 working days

Description

Victron BMV 700h battery monitor

Precise monitoring:
The BV 700H is a highly precise battery maker that was specially developed for systems with a high battery voltage in the range of 60 to 385 volts.
The essential task of battery monitoring is to monitor and display the charging status of the battery in order to display unexpected complete discharges. For this purpose, the current flow is measured continuously and the current battery charging status is recorded. An alarm can be triggered when a set threshold value is reached. The ampère hours are determined by integrating the current flow into or from the battery. With constant current, the integration of the multiplication of electricity and time corresponds. For example, a discharge current of 10a over 2 hours results. a value of 20Ah. Victron battery guards are equipped with powerful, programmed microprocessors. When an onset of a set threshold value, an alarm can be triggered.

Batterielade and remaining runner:
The remaining battery capacity depends on the used ampers' hours, the discharge current, the
Temperature and the age of the battery. Complex software algorithms are required to all of them
To take into account variables.
Apart from the basic display options such as voltage, electricity and used amperpers hours, the BMV-700H series also shows the charging status, the remaining term and the power consumption in watts.

Easy installation and programming:
All electrical connections are carried out with the circuit board connector on the Strom-Shunt. The shunt is connected to the guard via a standard RJ12 telephone cable.
A quick installation menu and a detailed setup menu with scrolling supports the user during the settings.

Scope of delivery:

-500 amps/50 mV quick connection shunt
And a connection set:
- RJ 12 cable (10 m)
- Battery cable with fuse (2 m)
- Separate front panel for a square or round display
- Safety ring for a back assembly, screws for a front-side assembly

Standard functions
- Battery voltage, electricity, power, used amperpers and charging status
- Remaining term with current discharge rate
- Programmable visual and acoustic alarm
- Programmable relays to switch off insignificant loads or switch on a generator if necessary
- Shunt capacity of up to 10,000 amps can be selected.
- Ve.direct communication connection
- Save a wide range of course data, based on which usage patterns and battery status
can be evaluated.
- Wide input voltage range: 60 - 385 V
- High current measuring resolution 10 MA (0.01 a)
- Low power consumption 2.9 AH per month (4 mA) at 12 V and 2.2 AH per month (3 MA) at 24 V

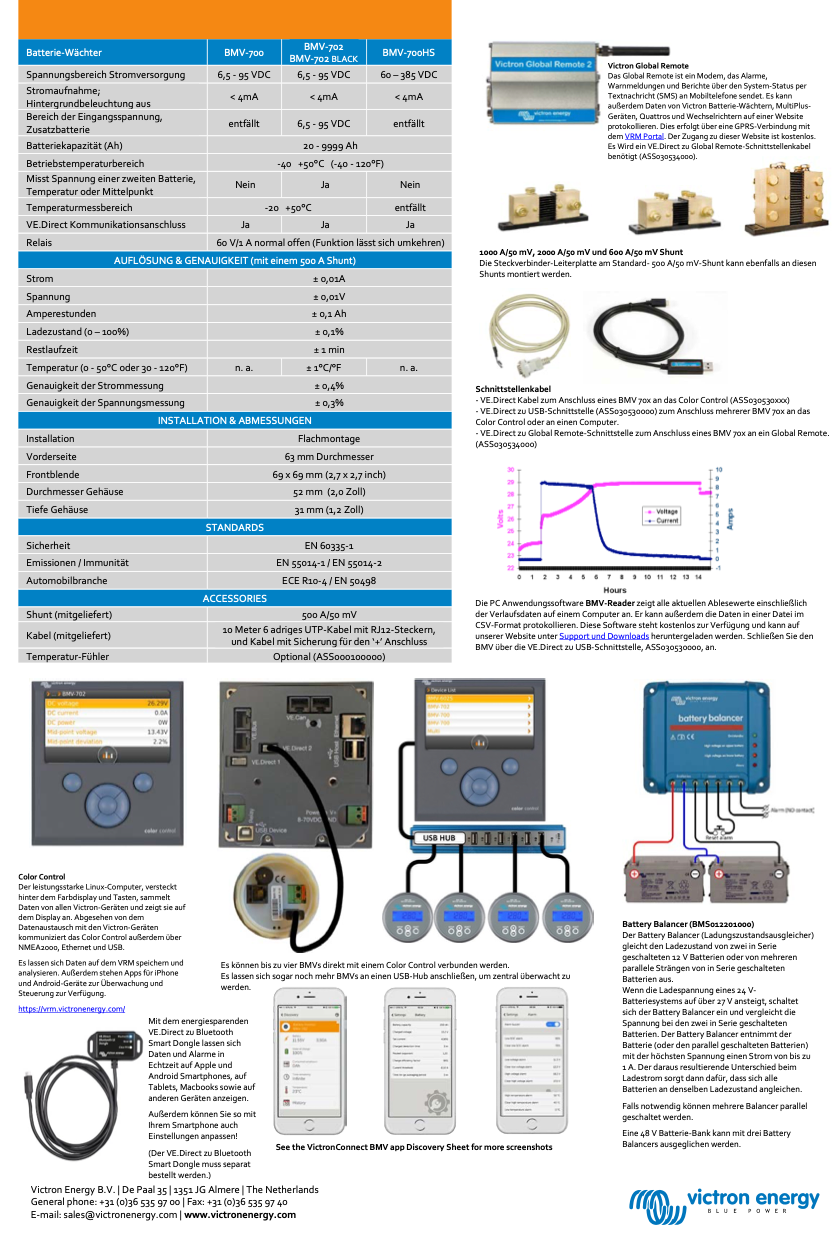

Details:
Resolution and accuracy (with a 500 A shunt):
Electricity ± 0.01 a
Voltage ± 0.01 V
Ampers hours ± 0.1 Ah
Charging status (0-100 %) ± 0.1 %
Remaining term ± 1 min
Accuracy of the current measurement ± 0.4 %
Accuracy of the voltage measurement ± 0.3 %
Dimensions: 65 x 65 x30
Standards:
Safety EN 60335-1
Emissions / immunity EN 55014-1 / EN 55014- 2
Automotive industry ECE R10-4 / EN 50498

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
