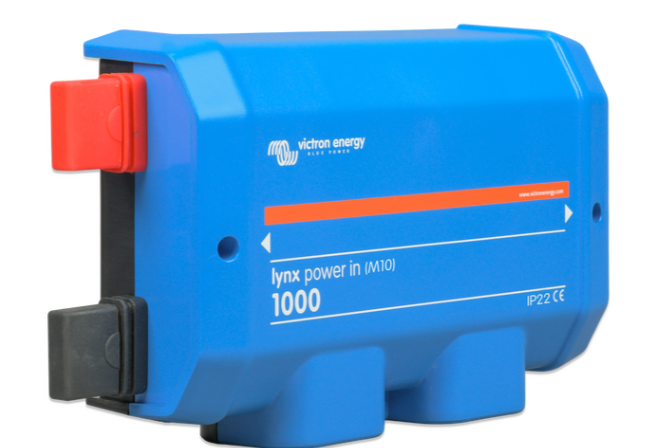

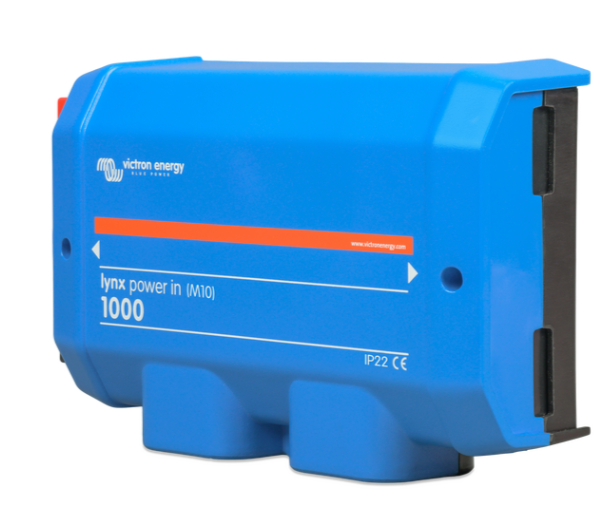

Victron Lynx Power in (M10)

Victron EnergySKU: LYN020102010

Price:
Sale price€125,50 EUR Regular price€178,50 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Lynx Power in Victron Energy
is a modular direct current collection rail and enables the connection of batteries to the Lynx equal current distribution system. It has a plus and minus collection rail with 4 connections for batteries, loads, chargers and a trade fair connection. These collection rails are an integral part of the Lynx distributor system and are available in 2 variants, either as M8 or M10. A notice: It should be noted that the name "M10" refers to the connections of the collective rail, to which the modules are connected to each other. On the other hand, the safety and cable closures are always carried out in M8 format.

About the power in (M10)
- Participating in the Lynx distributor system
- Several system options and connections
- Connect Lynx Power in modules quickly and safely
- Plus and minus collecting rail
- 4 connections for loads, batteries etc.
- Easy installation
- VictronConnect app
- Surveillance

Lynx distributor system
The system is a modular rail system that includes DC connections, distributors, fuses, battery monitoring and/or functions for the management of lithium batteries. It consists of the following components:
- Lynx power in - Plus and minus collecting rail with four connections for batteries or DC devices
-
Lynx distributor - Plus and minus collecting rail with four secure connections for batteries or direct current devices and security monitoring
-
Lynx shunt ve.can -Plus collecting rail with free space for main fuse, minus collecting rail with shunt for battery monitoring, has Ve.CAN communication for furnishing with GX device
-
Lynx Smart BMS - For use with VICTRON Energy Lithium Battery Smart batteries, Bluetooth communication via VictronConnect App or with a GX device, available as a 500 A model with M8 collecting rails or 1000 A model with M10 collection rails

    Victronconnect app
    The app is essential for setting up and monitoring! The following options for connection are: Bluetooth / USB, via the optional interface / remote control via a GX device and the VRM portal
    The app is available for the following platforms:
    Android / Apple iOS (USB is not supported, only a connection via Bluetooth is possible) / MacOS / Windows (Bluetooth is not supported, only a connection via USB is possible)
    The app can be downloaded from the respective app stores or from the Victron product page. Alternatively, a QR code is available.

    Technical data
    -
    Tension range: 9-60V DC
    - nominal current: 1000A DC interruption -free
    - Operating temperature range: -40 ° C - +60 ° C
    - Storage temperature range: -40 ° C - +60 ° C
    - Protection class: IP22
    - Weight: 2.1 kg
    - Dimensions: 290 x 170 x 80 mm
    - Dimensions of the collective rail: 8 x 30 mm
    - Housing material: ABS plastic
    - Material of the collective rail: tinned copper

      Scope of delivery:
      1x Victron Lynx Power in (M10)
