Victron Mega-Fuse fuse holder modular

Victron EnergySKU: CIP100200100

Price:
Sale price€34,00 EUR Regular price€45,22 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

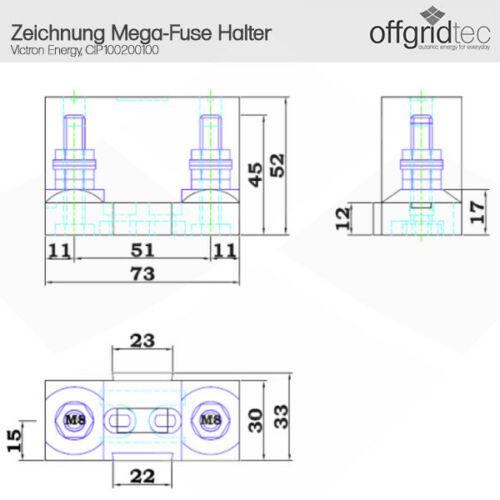

The modular MEGA-Fuse fuse holder from Victron Energy (MPN CIP100200100) with cover is used for the safe installation of DC MEGA-Fuse strip fuses together with up to 5 other shears on a common busbar. This solution is ideal for protecting parallel connected Multiplus or Quattro inverters or inverters from other manufacturers. The fuse holders can be plugged into one another so that all fuse holders on the busbar are firmly anchored in their position. (see image material)

The housing provides solid protection of the fuse from external influences. There are currently two busbar versions that can be used with the modular holder:

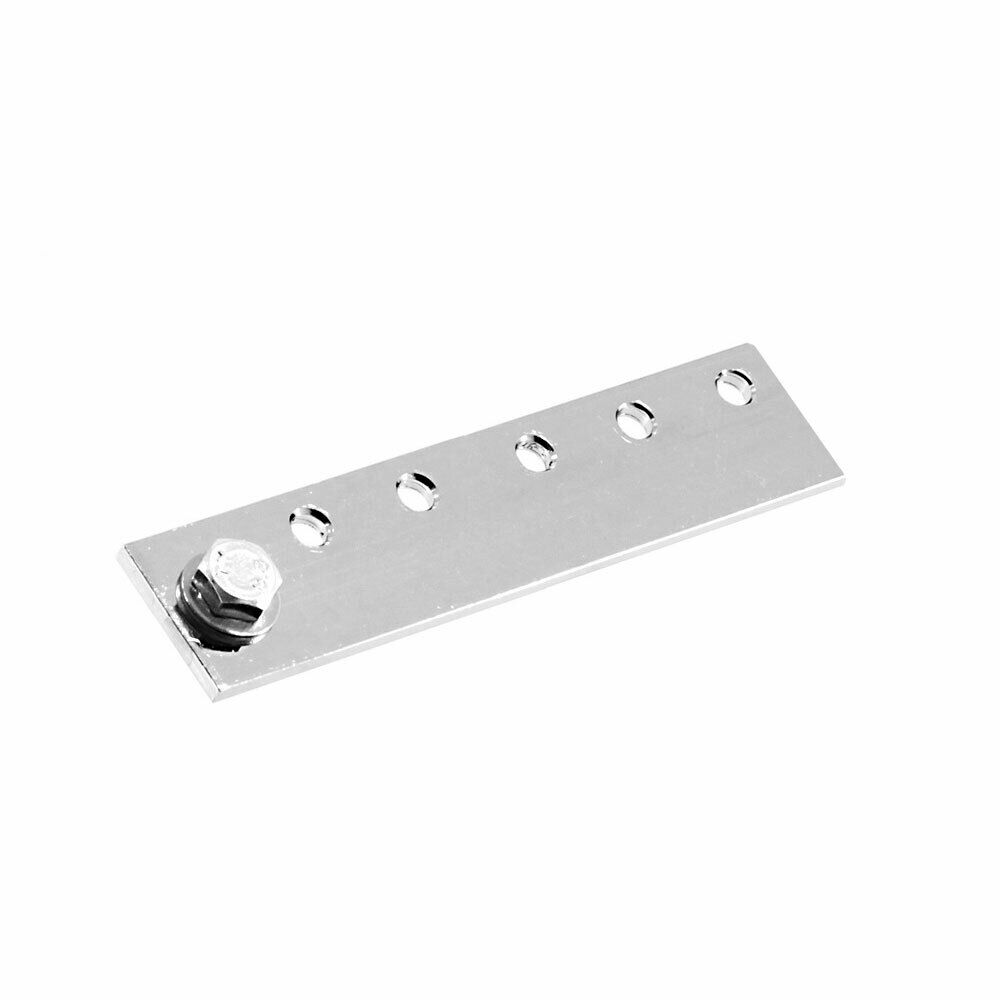

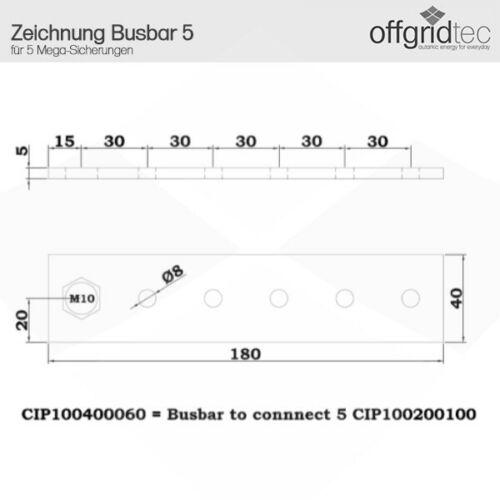

Victron Busbar 5 CIP100400060 - for 5 holders of type CIP100200100, max 500A
Victron Busbar 6 CIP100400070 - for 6 holders of type CIP100200100, max 2000A

Important article features at a glance:

  • 500A max current at max 32V DC
  • 300A max current at 58V DC
  • for joint use with the 5 and 6 busbars from Victron Energy
  • for MEGA-Fuse type fuses
  • Material: high-strength plastic mixture

About the MEGA fuse

MEGA-Fuse type fuses are strip fuses and are screwed to the holder to ensure optimal contact. Corresponding nuts and snap rings are already pre-assembled on the holder.

Mega fuses can protect up to 500A at 32V DC. With the 58V variants up to 300A are possible.

32V MEGA-Fuse Fuses - 60A to 500A
58V MEGA-Fuse Fuses - 125A to 300A

Scope of delivery:
1x Victron CIP100200100 modular MEGA-FUSE fuse holder

data sheet

Generally
item number 8-67-010055
Manufacturer part number CIP100200100
Manufacturer VictronEnergy
weight 0.1
EAN 8719076018124

GPSR Information

Hersteller
Name: Victron Energy BV
Anschrift: The Palm 35
PLZ, Ort: 1351, JG Almere
Land: Netherlands
Email: sales@victronenergy.com
Web: https://www.victronenergy.com
