Victron Phoenix Smart IP43 Charger 24/25 (3) 120-240V

Victron EnergySKU: PSC242553095

Price:
Sale price€434,58 EUR Regular price€636,65 EUR

Tax included Shipping calculated at checkout

Shipping in 8-10 working days

Description

TheVictron Phoenix Smart IP43 Charger 24/25 (3) 120-240 V is a powerful battery charger of the latest generation. The device is designed for 24V battery voltage and offers 3 power outputs of which each is able to deliver the full charging current.
The Phoenix Smart Charger 24/25 (3) IP43 fits into the integrated Bluetooth module in which the Victron smart family is becoming increasingly becoming, which can be perfectly networked and can also be controlled centrally. In addition to the Bluetooth module, there is also a VE.Direct connection and a freely programmable relay. Optionally, the Smart Battery Sense to control the battery temperature compensation can also be connected. The proven five-stage loading algorithm and the possibility to program its own loading algorithm make the Phoenix Smart Charger 24/25 (3) IP43 a universally applicable high-tec battery loader, which can optimally load almost every battery type.

Perfect battery charger for boats and vehicles
Phoenix Smart Battery charger devices that (1+1) contain in the model name have a main charging output with full charging current and a 4A ancillary charging output for charging starter batteries. These models are therefore particularly suitable for the mobile area. The Phoenix Smart models with (3) in the model designation were particularly developed with regard to the needs in the marine area and offer three full power outputs for charging 3 battery benches.

Highlights of the Phoenix Smart Charger 24/25 (3) IP43
Integrated Bluetooth module
- Integrated VE.Direct connections
- 3x 25a charging outputs are available (maximum 25a charging current)
- Automatic voltage compensation
- adaptive, five -stage loading algorithm
- Variable constant stress phase
- Eye all common types of battery
- Prevention of damage caused by gastroplating thanks
- Reduced aging through storage with storage mode
- Lifepo4 also charges and can be connected to a BMS via optocoupler
- Fully programmable loading algorithm
- Remote on/off
- can be used as a power source

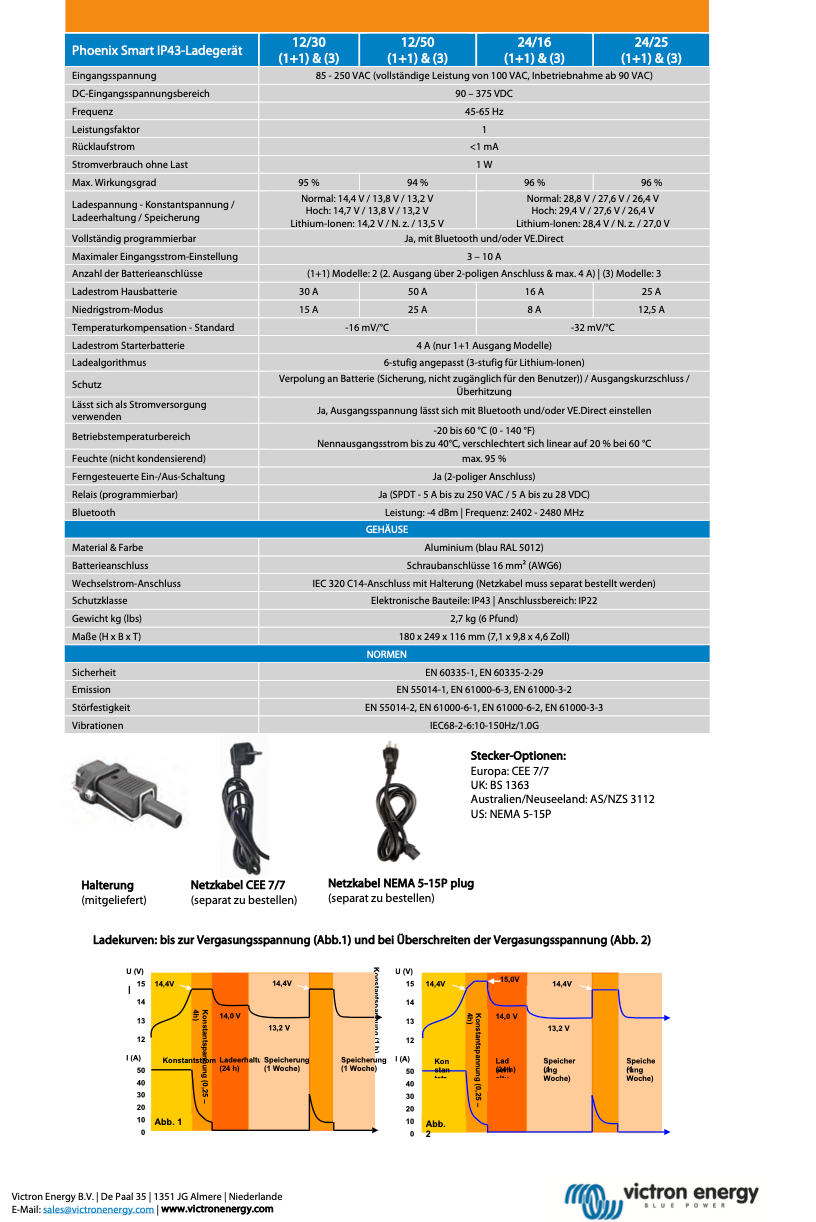

Technical features of the Phoenix Smart 24/25 (3)
- Number of batteries: 3 (each output can output the full charging capacity of the device), (max. 4A load)
- Maximum nominal charging current: 25a, battery voltage: 24V
- High efficiency: 96%
- Protection class: IP43 (electronic components), IP22 (connection area)

Three integrated technologies for all -round healthy batteries
Variable constant stress phase: Always delivers the correct charging quantity
With a low battery discharge (e.g. a yacht connected to the country current), a short constant voltage phase is chosen to avoid an overload. After a deep discharge, the constant voltage phase is automatically extended to ensure that the battery is fully charged.

Prevention of damage caused by excessive gas: the Batterysafe mode
In order to shorten the loading time, the highest possible charging current was selected together with a high constant voltage. However, an excessive gas development towards the end of the constant trump phase is limited by the charger the speed of the voltage increase after the gas voltage has been reached (see also the graphics in the brochure).

Less maintenance and aging in the resting state of the battery: The storage mode
The warehouse mode is always activated if no discharge has been carried out within 24 hours. In storage mode, the loading tension is then reduced to 2.2 V/cell (26.4 V for a 24 V battery) in order to minimize gas development and corrosion on the positive plates. Once a week, the voltage is increased to the level of the gas voltage. This achieves a kind of compensation charge that prevents the electrolystal layering and sulfating - the two main reasons for premature battery failure.

Perfect for Lifepo4 battery
The Phoenix Smart Charger 24/25 (3) IP43 can be attached to an on/off control by connecting a relay or an optocoupler output with an open collector by an Li-ion BMS to remote-controlled one/output port. Alternatively, voltage and electricity can also be ruled completely via Bluetooth.

Ve.direct interface, bluetooth and programmable relay
The Phoenix Smart Charger 24/25 (3) IP43 from VICTRON is ideal thanks to the VE.Direct port for a wired data connection with a color control panel, a PC or other devices. Also note the VictronConnect app for Android and iOS, which you can use with any smartphone or tablet to be wireless and read out your Phoenix Charger via Bluetooth. The programmable relay can also be programmed via the VE.Direct interface or a Bluetooth-compatible device in order to trigger an alarm or other events.

Required accessories
Please note that an AC connection cable is required for the connection of the Phoenix Smart Charger 24/25 (3) IP43 to the power grid. This is not included.

scope of delivery
1x PSC242553095 Victron Phoenix Smart Charger 24/25 (3) IP43
1x AC cable clamp
1x operating instructions
