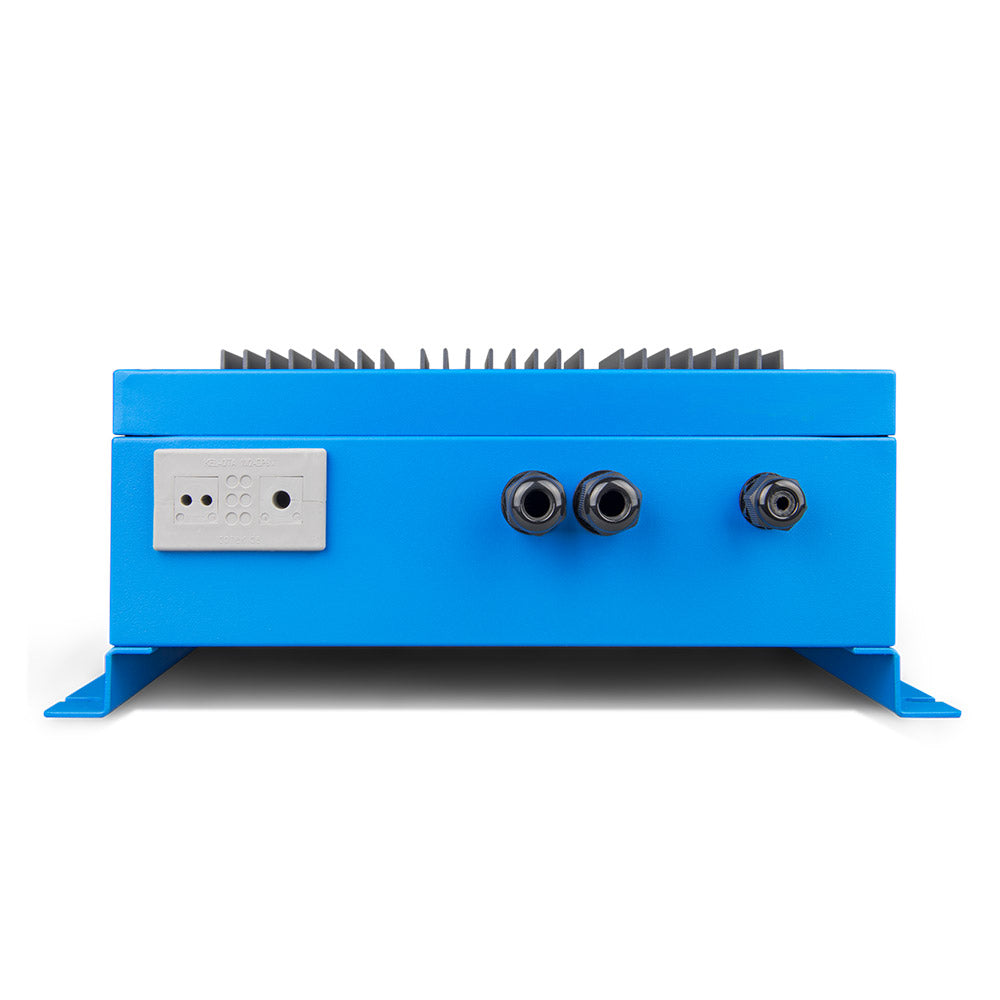

Victron Skylla IP65 24/35 (3) 120-240V

VictronSKU: SKY024035100

Price:
Sale price€761,07 EUR Regular price€1.061,48 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

A powerful, waterproof and intelligent battery charger with a 7-stage adaptive loading algorithm, suitable for a variety of battery types and battery meals with a special lithium-ion loading algorithm.

The large area of ​​universal input voltage increases flexibility in installation, the charger retains its full starting performance, regardless of where it is in the world.

Due to the type of protection IP65, this charger is particularly suitable for use in shipping, in the mobile area and in industry, and withstands adverse environmental conditions: heat, moisture and salt air.

Both models are available in two versions:

  • 3 full -fledged outputs
  • 1 full -fledged output together with an isolated 3 A conservation charging output for a starter battery

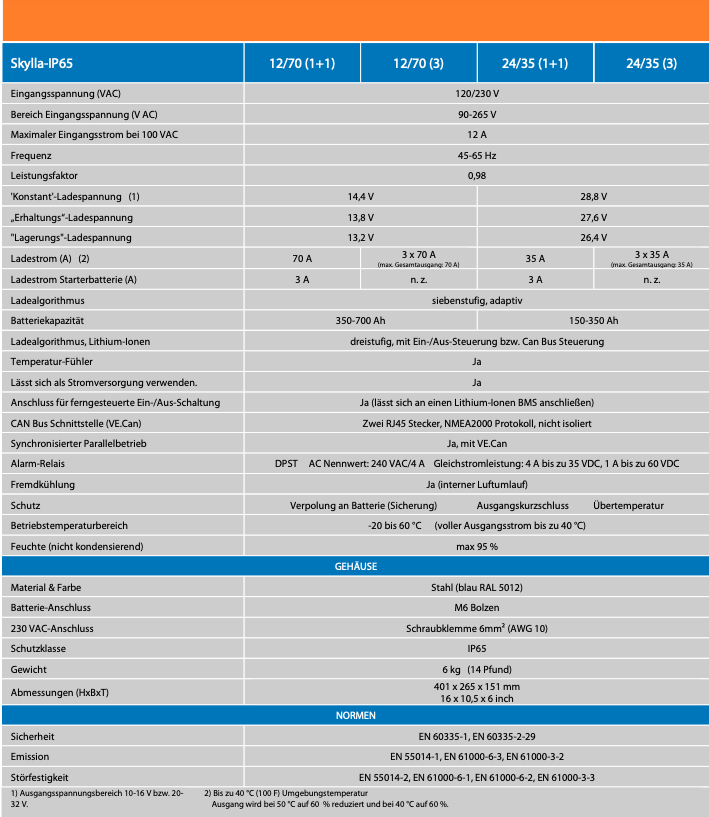

Models:

12V/70A & 24V/35A

Skylla-IP65 (3): Three full power outputs for charging 3 battery benches
The Skylla-IP65 (3) has 3 separate outputs. All outputs can deliver the full starting stone current.

IP65 protection
Epoxy powder-coated steel housing and splash-proof. Withstands the challenges of a difficult environment: heat, moisture and salty air.
An acrylic coating protects the circuit boards from corrosion as best as possible.
Temperature sensors ensure that the electricity components are always operated within the specified limits. Under extreme environmental conditions, the output current is automatically reduced if necessary.

LCD display

For status monitoring and the simple adjustment of the loading algorithms to a certain battery and its operating conditions.
CAN bus interface (nmea2000)
For connection to a CAN bus network, to a Skylla-I control panel or to the Color Control digital display.

Synchronized parallel operation

Several chargers can be connected in parallel and synchronized with the help of a CAN bus interface. This is achieved by simply connecting the chargers via RJ45 UTP cables.
The correct loading amount for a lead-acid battery: adapted constant voltage time
If only weak discharges occur, the constant voltage period is kept short to avoid overloading the battery. After a deep discharge, the constant voltage phase is automatically extended to ensure that the battery charges completely.

Prevention of damage caused by excessive gastung: Batterysafe mode
To reduce the loading time, the aim is to focus as high as possible in connection with high constant voltage. However, in order for an excessive gas development to be avoided towards the end of the constant trump phase, the Skylla-IP65 limits the speed of the voltage increase after the gas voltage has been reached.

Less maintenance and aging in the resting state of the battery: the storage mode
The warehouse mode is always activated if no discharge has been carried out within 24 hours. In storage mode, the loading tension is then reduced to 2.2 V/cell (26.4 V for a 24 V battery) in order to minimize gas development and corrosion on the positive plates. Once a week, the voltage is increased back to the threshold value of the constant voltage to 'refresh the battery'. This achieves a kind of compensation charge that prevents the electrolystal layering and sulfating - the two main reasons for premature battery failure.

Higher battery life through temperature compensation
A battery temperature sensor is included for each Skylla-IP65 device. The temperature sensor ensures a decreasing charging voltage with increasing battery temperature. This is particularly important for gel batteries or when high temperature fluctuations are constantly expected.

Battery voltage sensor

To compensate for voltage losses through cable resistors, the Skylla-IP65 has a tension sensor in the charging circuit, so that the battery always receives the correct charging current.

Use as a power source
Due to the excellent control group, the Skylla-IP65 can be used as a power source with a perfectly stabilized output voltage if there are no batteries or large buffer capacitors.

Suitable for lithium-ion batteries (lifepo4)

A simple insert/off control can be installed by connecting a relay or an optocoppler output with an open collector by a Li-Ion BMS to the remote control connection of the charger. Alternatively, voltage and electricity can be controlled completely by connecting to the CAN bus connection.
