Victron BlueSolar MPPT 100/50 12V 24V 50A

Victron EnergySKU: SCC020050200

Price:
Sale price€151,75 EUR Regular price€213,01 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

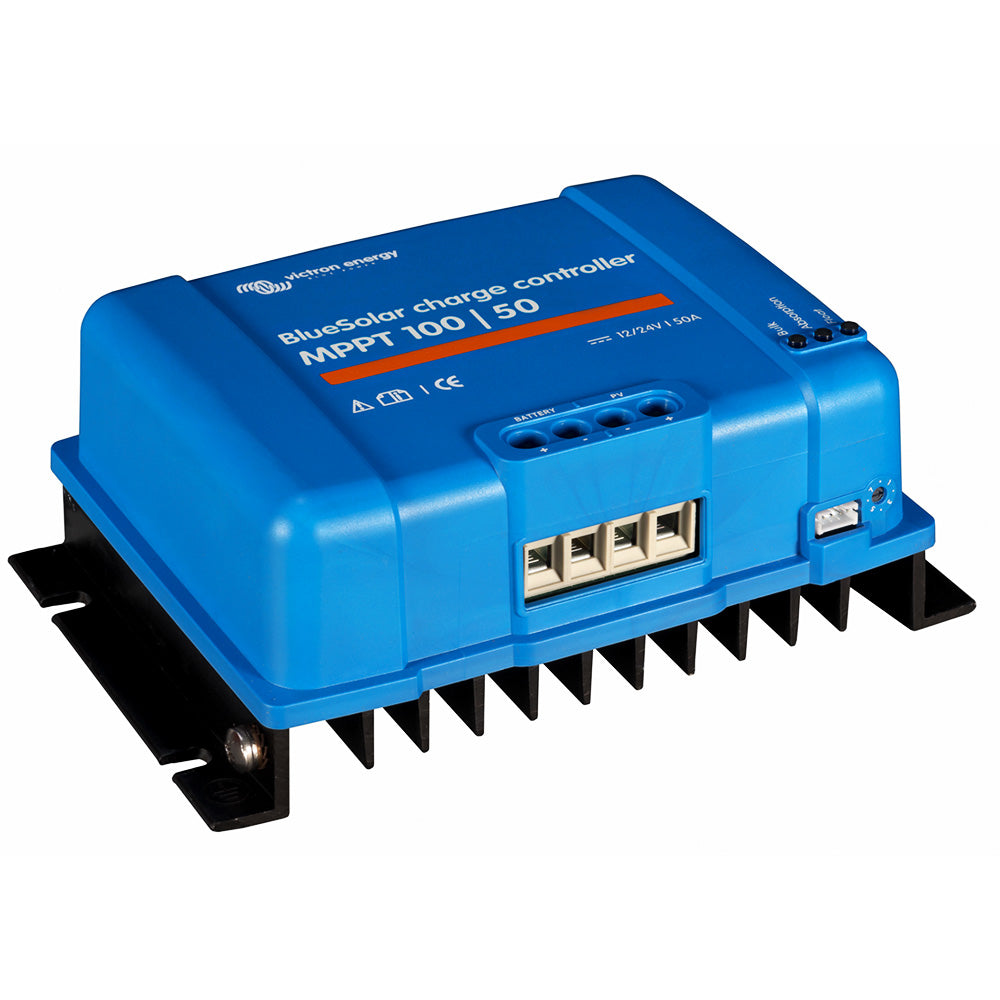

The Victron MPPT 100/50 (without Bluetooth) belongs to the large family of BlueSolar MPPT charge controllers. Like its larger siblings, it also offers ultrafast power tracking, which can increase the yield of your solar system. It offers greater charging and PV performance and more protection compared to the smaller models. The BlueSolar MPPT 100/50 offers overheating protection with a shutdown function and automatic restart once a normal operating temperature is reached. It also features PV reverse current protection, which is unique to this device in the Blue MPPT family.

Latest generation high-speed MPP tracker
Especially under overcast skies, when light intensity is constantly changing, an extremely fast MPPT controller improves energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. In addition, the 100/50 features several other innovative technologies, such as the VE.Direct communication port.

Programming: Real-time data and history display

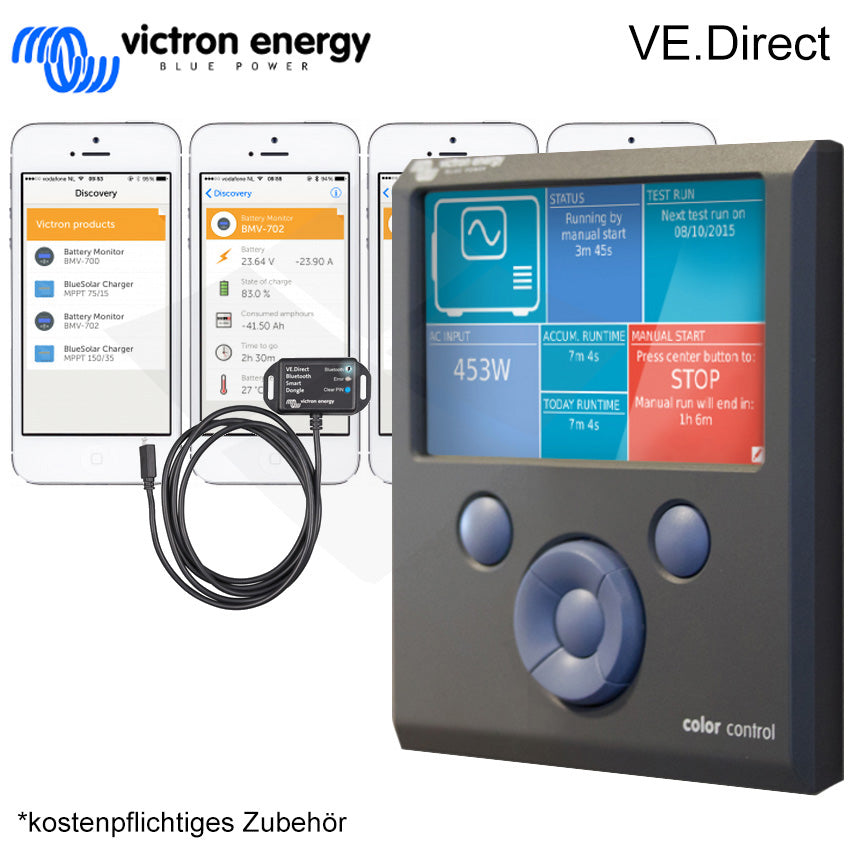

Modern Apple and Android smartphones, tablets, MacBooks, and other devices can be connected via VE.Direct, for example, with Bluetooth Smart dongles and the MPPT app or the GX Color Control. Please note that Bluetooth Smart dongles and GX Color Control are separate items that are not included with the charge controller but can be purchased separately from us.

Product features of the BlueSolar 100/50 50A 12V 24V MPPT
- ultra-fast MPP tracker of the latest generation ensures the best possible yield even under overcast skies
- Automatic detection of the MPP voltage in partial shading ensures a further improvement in yield compared to other MPPT charge controllers
- Integrated VE.Direct data communication port for connecting to additional devices such as Bluetooth Smart Dongle or the GX Color Control Panel
- high maximum efficiency of 98%
- fully programmable charging algorithms that can be manually activated and switched via a switch on the housing
- Nominal charging current 50A, 100V maximum PV open circuit voltage
- 700W maximum PV power for 12V, 1400W for 24V systems
- integrated protection against battery polarity reversal
- multi-stage and adaptive charging algorithm
- integrated temperature sensor balances float and constant charge voltage according to temperature
- Day/night time control and light dimming option

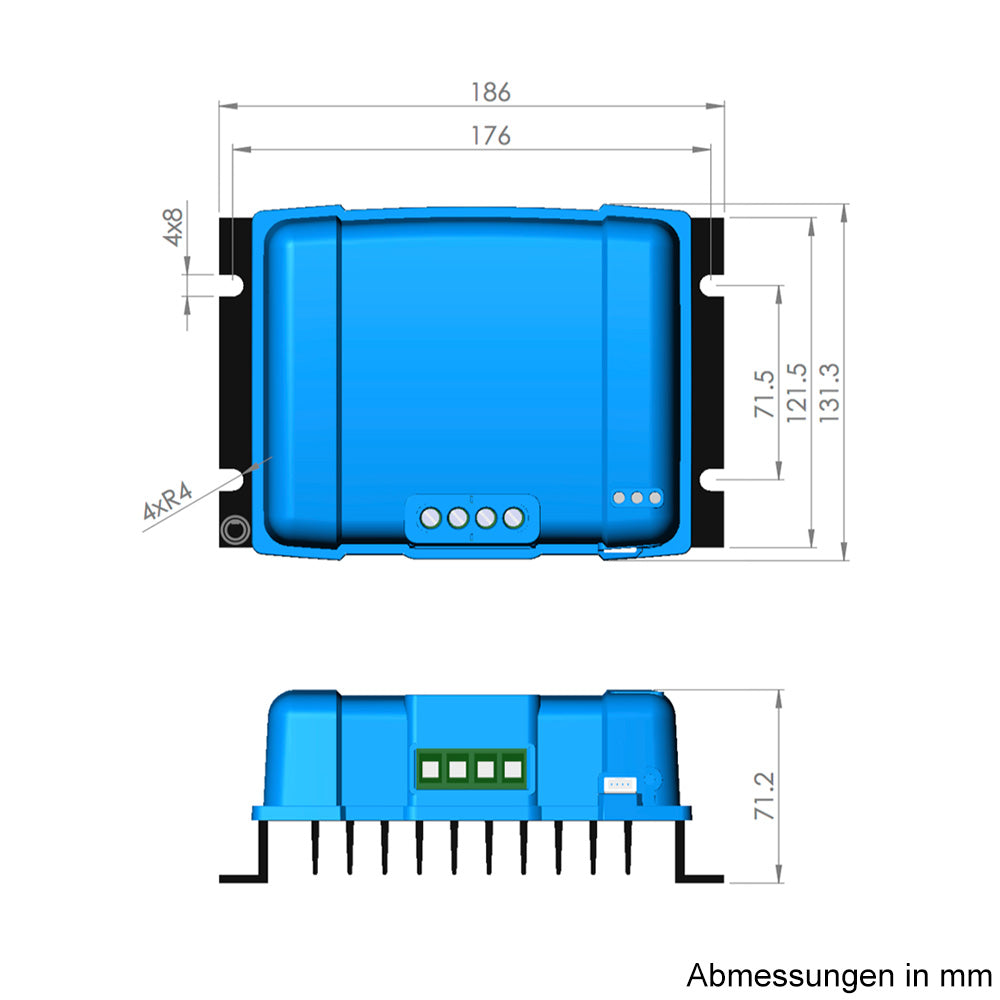

- 130x186x70

VE.Direct data communication port
VE.Direct in text mode transmits all important parameters every second to other devices connected to the charge controller, thus enabling communication with additional devices such as the Bluetooth Smart dongle or the Victron GX Color Control Panel. The VE.Direct connection is intended for products where full CANbus integration (VE-Direct) would be too costly.

Scope of delivery
1x Victron SCC020050200 BlueSolar MPPT 100/50 12V 24V 50A charge controller
Operating instructions
