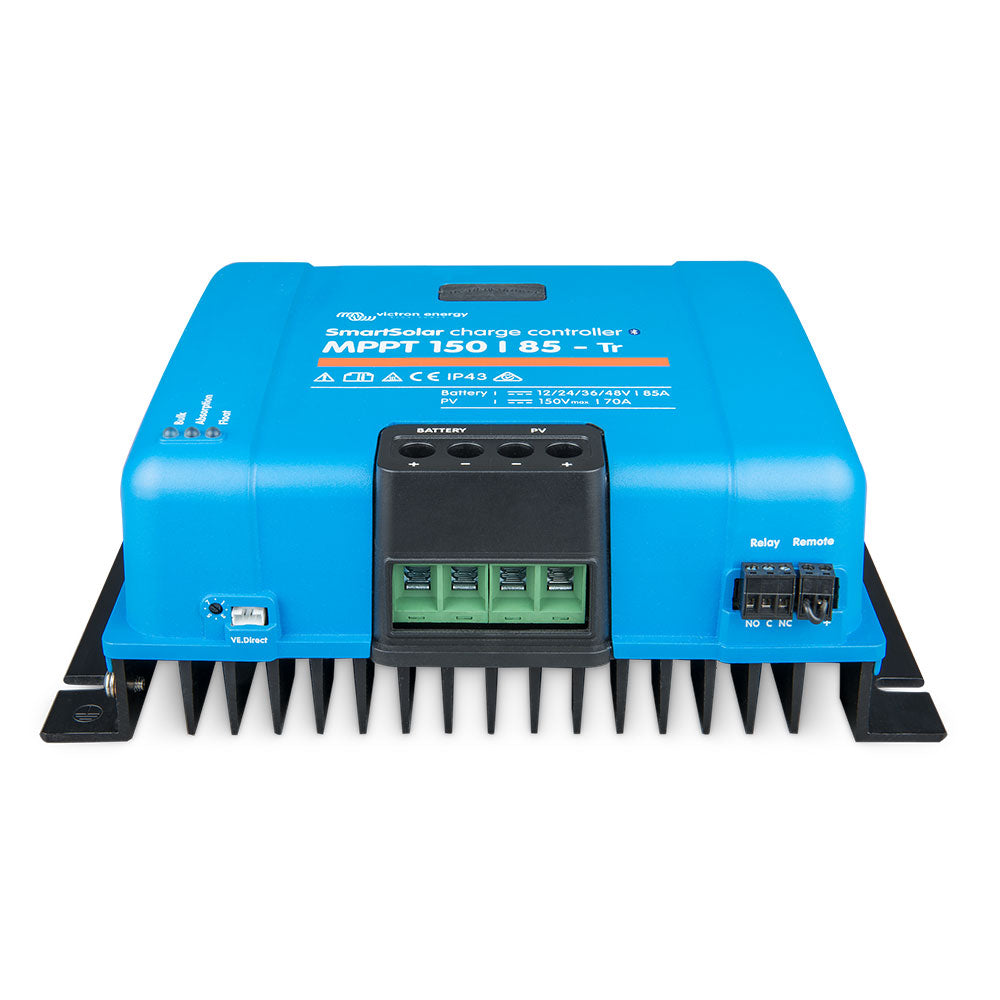

Victron Smartsolar Mppt 150/70-TR

Victron EnergySKU: SCC115070211

Price:
Sale price€332,01 EUR Regular price€486,71 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

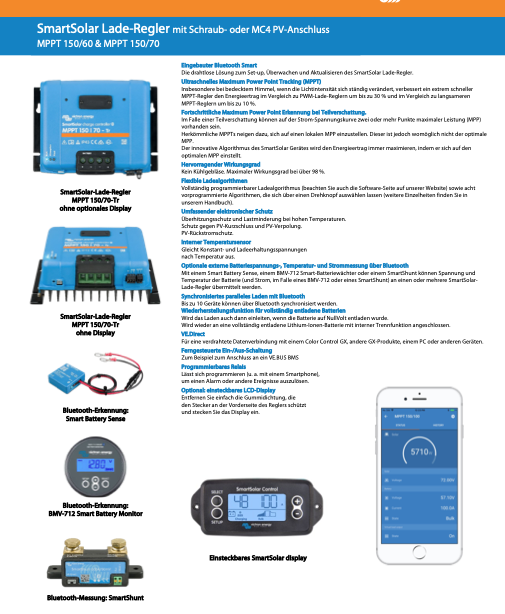

The SmartSolar Mppt 150/70-TR from Victron Energy (MPN SCC115070210), belongs to the latest generation of smart solar controllers from the Dutch premium manufacturer and processes a rich 70a solar power and can flexibly work with 12/24/36/48 V Batteries. Ultra-fast power tracking and automatic power point detection in part shading are only 2 of the many highlights of this new device class. The SmartSolar 150/70-TR is also available as a version with MC4 connections on the solar side of the charge controller instead of screw clamps. This model also dominates parallel operation with other controls of the same type.

Compared to the Bluesolar series, the Bluetooth module is already integrated in the controller at the SmartSolar family, which makes the smart dongle superfluous in this device. Also new is the optionally available LCD display, which can simply be attached to the SmartSolar 150/70-TR if necessary. The display then provides all important information about the controller

Smart data communication via VE.Direct and lightning -fast Bluetooth

Modern Apple and Android Smartphones, Tablets, MacBooks and other devices can be connected thanks to the fixed Bluetooth module and the free VICTRON Connect app. The app can then be used to configure many important functions of the MPPT 150/70-TR SmartSolar controller. Of course, it also delivers all important parameters such as the current solar yield in real time.

Automatic detection of the maximum Power Point at partial shading

In the event of a partial shading, two or more points of maximum performance (MPP) may be available on the electricity voltage curve. Conventional MPTS tend to adjust to a local MPP. However, this may not be the optimal MPP. The innovative algorithm of the SmartSolar 150/70-TR will always maximize the energy yield by adjusting itself to the optimal MPP.

Essential product features of the SmartSolar 150/70-TR 70a 12V 24V 36V 48V MPPT

  • Ultra-fast MPP tracker of the latest generation ensures the best possible yield even with a covered sky
  • Nominal charging current 70a, 150V maximum PV empty voltage
  • Maximum PV performance: 12 V 1000 W / 24 V 2000 W / 48 V 4000 W
  • Victron Energy Part number (MPN): SCC115070210
  • Automatic detection of the MPP Tension In the case of partial shading, a further earnings improvement compared to "simpler" MPPT loader
  • With optional LCD display
  • Fixed integrated Bluetooth module for app -based analysis and configuration of the controller (via free Victron app on compatible devices)
  • Optional LCD display available
  • Integrated VE.direct data communication sport for connection with additional devices with additional devices the GX Color Control Panel or a Smart BMV battery monitor
  • high maximum efficiency of 98%
  • Parallel operation with other 150/70-TR controls possible
  • Regulatory constant charging voltage
  • Regulatory conservation charging voltage
  • Suitable for all AGM, gel, lead-acid calcium calcium and lithium batteries
  • Solar connection over 2 pairs 35mm screw clamp blocks, the solar truck can therefore be divided into 2 strings
  • Fully programmable charging algorithms that can later be activated and switched manually via a switch on the housing
  • Integrated protection against battery reolving
  • Multi-level and adaptive loading algorithm
  • Remote-controlled switching on and off over 2-pin plugs possible
  • Protection level IP 43 for the electronic components and protection class IP 22 for the connection area of ​​the controller
  • Integrated temperature sensor compensates for conservation and constant charging voltage after temperature
  • Day/night-time control and light insulation option

High-speed MPP tracker of the latest generation

Especially when the sky is covered, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield compared to PWM charging controls by up to 30 % and compared to slower MPPT regulators by up to 10 %.

Extensive electronic protection

  • Protection against flat battery connection
  • PV backstream lock
  • Protection against overheating of the device
  • Protection before short circuits
  • Protection against flat PV connection

The Ve.direct data communication sport

Ve.direct in text mode transmits all important parameters to other devices every second that are coupled with the loader and thus offers the possibility of communication with additional devices system panel GX Color Control. The VE.Direct connection is intended for products in which complete CANBUS integration (VE-Direct) would cause too high costs. You can find more information about Ve.direct in our Victron Energy brand shop.



scope of delivery

1x Victron SCC115070210 SmartSolar Mppt 150/70-Tr.

operation manual

data sheet

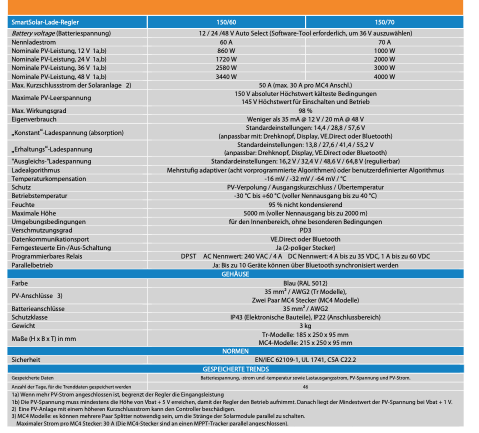

Loading control type

Mppt

Communication sports

Bluetooth, ve.direct

Max PV output 12V

1000 W

Max PV output 24V

2000 W

Maxp PV output 48V

4000 W

EAN

8719076042457

IP protection

IP43 (electronic components), IP22 (connection area)

Self -consumption in standby

> 35ma 12 V,> 20mA 48 V

Ambient temperature

-30 ° C - +60 ° C

Dimensions (LXBXH)

25 x 20 x 9.5 cm

Weight

3.8 kg

Manufacturer

Victron Energy

humidity

Max. 95 %, not condensing

Input voltage47

Max. 145 V

guarantee

5 years

Manufacturer part number

SCC115070210

Protective functions

Polation on the battery, PV rotation, output coco, over temperature

max efficiency

98%

Battery type adjustable

AGM, gel, leveric acid, lifepo4 and much more ...

Number of loading outgaes

1

Battery voltage

12 V - 48 V
