VOTRONIC 3178 MobilPOWER Inverter SMI 1200 ST-NVS with Schuko socket / mains priority circuit

VotronicSKU: 3178

Price:
Sale price€799,00 EUR Regular price€991,50 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Votronic MobilPower SMI 1200 sinus ST-NVS inverter 12 V DC / 230 V AC is used in special vehicles, high-quality motorhomes and other areas in which high quality and reliability are required. It is designed for high continuous loads and provides 1200W continuously and up to 2000W short-term peak power to cope with high starting currents.

ST-NVS with integrated mains priority circuit

A particular highlight of the SMI ST-NVS series is the integrated mains priority circuit. Thanks to it, your power system automatically draws its energy from the grid when the power grid is connected, thus protecting the batteries. If AC power is not available, the device automatically switches back to battery operation. The exact behavior of the NVS can be flexibly adjusted so that different configurations can be implemented as required.

Technical highlights of the MobilPower SMI 1200 ST-NVS Inverters

  • delivers output current with mains voltage quality (pure sine wave)
  • 1200 watts continuous power, designed for 12V battery voltage)
  • only 10W self-consumption when switched on without load and only 5 watt consumption in stand-by mode
  • Uncompromising and problem-free, trouble-free operation of all mains-operated devices, e.g. medical devices, radio, charging holders (mobile phone, radio devices, hand lamps, batteries, etc.), laptop, PC, air conditioning, cool boxes, power tools (drill, angle grinder, etc.), TV, SAT , TFT, microwave, fully automatic coffee machine, hair dryer, fan, lights, vacuum cleaner, refrigerator etc.
  • The control panel can be rotated 360° on the device and can also be placed anywhere in the vehicle as an external remote control. Switch mode technology, compact, light, robust and reliable, with high overload capacity for short periods
  • Low power consumption, selectable power saving mode: continuous operation or automatic stand-by with automatic search for consumers that are switched on or OFF
  • Automatic shutdown in case of battery over/under voltage, overload, overheating etc.
  • Performance and temperature-controlled comfort cooling fan with infinitely variable speed control
  • High efficiency of over 93%
  • Manufactured according to the latest standards and equipped with resilient power electronics that will not let you down for many years.

The SMI 1200 ST-NVS: modern inverter technology from Germany

The devices work according to the latest technology in a clocked design ("switch mode"). A compact design was realized through microprocessor control in connection with modern SMD technology. Noise and friction-optimized smooth-running fans (speed-controlled) ensure perfect cooling and therefore problem-free continuous operation even at full power.Integrated protective circuits also monitor the thermal and electrical load as well as overload and short-circuits of the output circuit.The inverters have an intelligent power-saving control with automatic switch-off.It ensures that no more power is consumed in idle mode than is absolutely necessary To protect the batteries, undervoltage protection is integrated, which switches off the inverter when the battery voltage drops.

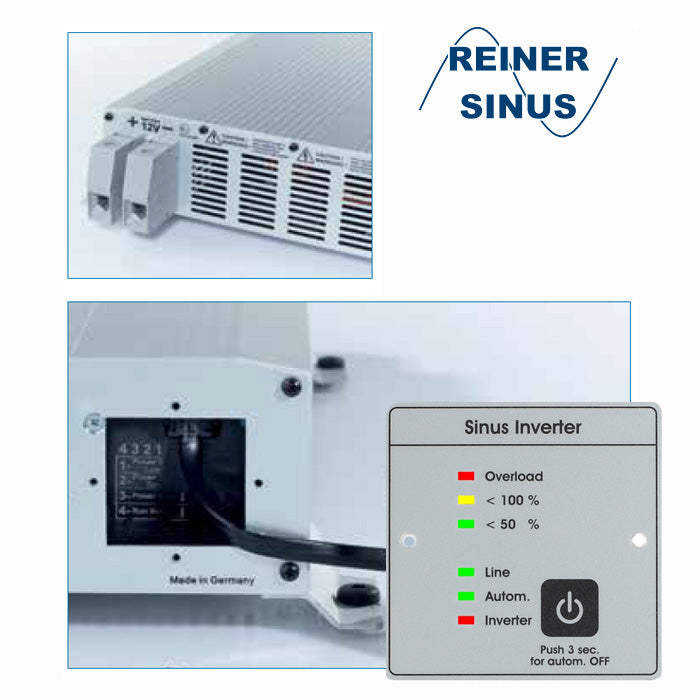

Flexible installation of the inverter display panel possible

In order to position the inverter optimally, the display panel can be removed after removing the two fastening screws and reinserted in the desired position (rotatable in 90° steps) and screwed. If the inverter is installed in a hard-to-reach place, the display panel can also be used as a remote control. To do this, the control panel is removed from the device, reconnected to the device with the 5 m long control line and mounted at the desired location.

Optionally, an additional remote control can be connected if you want a display directly on the device and in the board area.

Scope of delivery:

1x Votronic 3178 SMI 1200 ST-NVS 12V 230V Mobile Power Inverter

5m connection cable for control unit, battery connection clamps, mains cable, 1x connection diagram, operating instructions

Also available in boat version with moisture-proof electronics !

Technical specifications

Nominal battery voltage (DC) in [V] 12
Output voltage (AC) in [V] 230 pure sine
output frequency 50 Hz crystal stabilized
efficiency > 93%
CosPhi of consumers everything allowed
Output power duration in [W] 1200
Output power short / peak in [W] 1400 / 2000
Minimum battery capacity (recommended) in [Ah] > 110
Current consumption (DC) at rated power in [A] 115
Battery overvoltage max. [V] 16
Battery undervoltage min. in [V] 10.5
Own consumption in [W] 8 (switched on, no load)
Self-consumption in stand-by in [W] 3 (no load)
Battery connection terminals in [mm 2 ] 2 x 50
Temperature range [°C] -20 to +45
Degree/class of protection IP 21
Dimensions (WxHxD) in [mm] - Dimensions including mounting flanges, without connections 265x90x305
Weight in [g] 4000
Standards (CE) EN60950
Ambient conditions, humidity: max. 95% room humidity, non-condensing
Scope of delivery: 5 m connection cable for control unit, battery connection terminals, mains cable, operating instructions
