VOTRONIC 3184 MobilPOWER Inverter SMI 1700 ST-NVS with Schuko socket / mains priority circuit

VotronicSKU: 3184

Price:
Sale price€849,00 EUR Regular price€1.107,30 EUR

Tax included Shipping calculated at checkout

Shipping in 1-3 working days

Description

The Votronic MobilPower SMI 1700 Sinus ST-NVS inverter 12 V DC / 230 V AC is designed for use in special vehicles, high-end motorhomes, and other applications where high quality and reliability are required. It is designed for high continuous loads and delivers 1700 W of continuous power and up to 3000 W of short-term peak power to handle high starting currents.

ST-NVS with integrated mains priority circuit

A special highlight of the SMI ST-NVS series is the integrated mains priority circuit. Thanks to this, your power system automatically draws its power from the mains when connected to the mains, thus preserving the batteries. If mains power is unavailable, the device automatically switches back to battery operation. The precise behavior of the NVS is flexibly adjustable, allowing for various configurations to be implemented as needed.

Technical highlights of the MobilPower SMI 1700 ST-NVS inverters

  • delivers output current with mains voltage quality (pure sine wave)
  • 1700 watts continuous power, designed for 12V battery voltage)
  • only 10W self-consumption when switched on without load and only 5W consumption in standby mode
  • Compromise-free and problem-free operation of all mains-operated devices, e.g. medical devices, radio, charging holders (mobile phones, radio devices, hand lamps, batteries, etc.), laptops, PCs, air conditioning, cool boxes, power tools (drills, angle grinders, etc.), TVs, satellite, TFTs, microwaves, fully automatic coffee machines, hair dryers, fans, lights, vacuum cleaners, refrigerators, etc.
  • The control unit can be rotated 360° on the device and can also be placed freely in the vehicle as an external remote control. Switch-mode technology, compact, lightweight, robust and reliable, with short-term high overload capacity.
  • Low power consumption, selectable power saving mode: continuous operation or automatic standby with automatic search for switched on consumers or OFF
  • Automatic shutdown in case of battery over/undervoltage, overload, overheating etc.
  • Power and temperature-controlled comfort cooling fan with stepless speed control
  • High efficiency of over 93%
  • Manufactured according to the latest standards and equipped with robust power electronics that will not let you down for many years.

The SMI 1700 ST-NVS: modern inverter technology from Germany

The devices operate using the latest technology in a switch-mode design. Microprocessor control combined with modern SMD technology enables a compact design. Noise- and friction-optimized, smooth-running fans (speed-controlled) ensure perfect cooling and thus trouble-free continuous operation, even at full power. Integrated protective circuits also monitor thermal and electrical loads, as well as overloads and short circuits in the output circuit. The inverters feature an intelligent power-saving control with automatic shutdown. This ensures that no more power is consumed in idle mode than absolutely necessary. To protect the batteries, an undervoltage protection function is integrated, which shuts down the inverter if the battery voltage drops.

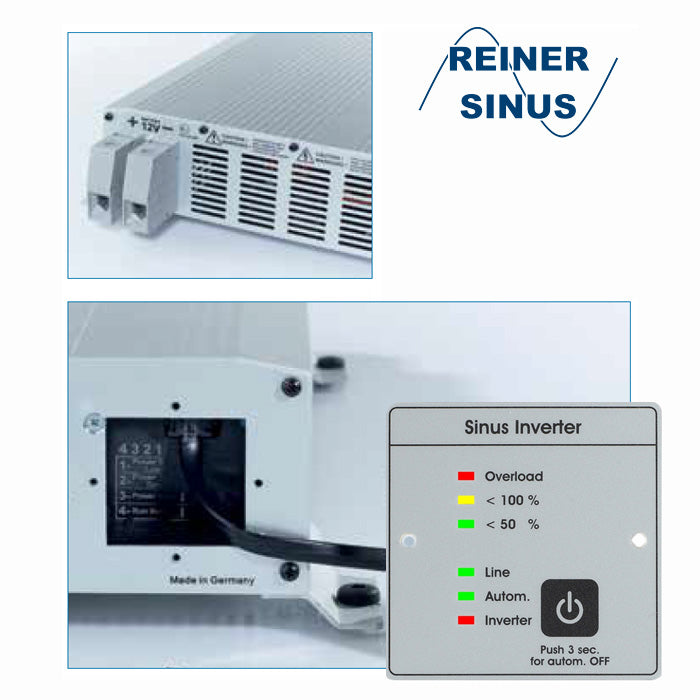

Flexible installation of the inverter display panel possible

To optimally position the inverter, the display panel can be removed after removing the two fastening screws. It can be repositioned in the desired position (rotatable in 90° increments) and screwed into place. If the inverter is installed in a location that is difficult to access, the display panel can also be used as a remote control. To do this, the control panel is removed from the device, reconnected to the device with the 5 m long control cable, and mounted in the desired location.

Optionally, an additional remote control can also be connected if you want a display directly on the device and in the board area.

Scope of delivery:

1x Votronic 3184 SMI 1700 ST-NVS 12V 230V MobilePower Inverter

5m connection cable for control unit, battery terminals, power cable, 1x connection diagram, operating instructions

Also available in boat version with moisture-protected electronics !

Technical data:

Nominal battery voltage (DC) in [V] 12
Output voltage (AC) in [V] 230 pure sine wave
Output frequency 50 Hz quartz stabilized
Efficiency > 93%
CosPhi of consumers everything is allowed
Continuous output power in [W] 1700
Output power short / peak in [W] 2100 / 3000
Minimum battery capacity (recommended) in [Ah] > 150
Current consumption (DC) at rated power in [A] 165
Battery overvoltage max. [V] 16
Battery undervoltage min. in [V] 10.5
Self-consumption in [W] 10 (switched on, no load)
Self-consumption in standby in [W] 5 (without load)
Battery terminals in [mm 2 ] 2 x 50
Temperature range [°C] -20 to +45
Degree/class of protection IP21
Dimensions (WxHxD) in [mm] - Dimensions including mounting flanges, without connections 265 x 90 x 440
Weight in [g] 5200
Standards (CE) EN 60950
Ambient conditions, humidity: max. 95% room humidity, non-condensing
Scope of delivery: 5 m connection cable for control unit, battery terminals, power cable, operating instructions
