The Solar Data Extender combines the data from up to three solar controllers so that they can be shown on a single display. The usual LCD display can still be used. It is compatible with the following devices:
- Solar charge controller in SR and MPP technology (from serial no. 14Vxx.xxxxx)
- Battery charger of the type VBCS Triple
- LCD Solar Computer S (from serial no. 15V40.xxxxx)
- LCD Charge Control S
- VPC series with solar function
- Bluetooth Connector S-BC
assembly and connection

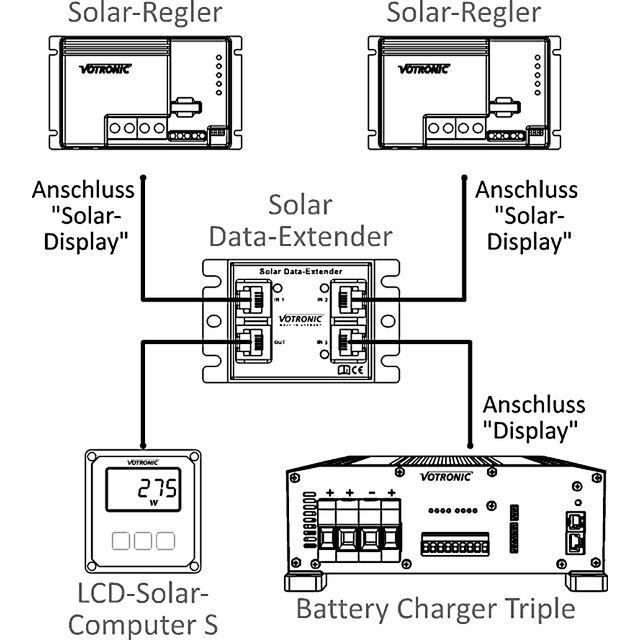

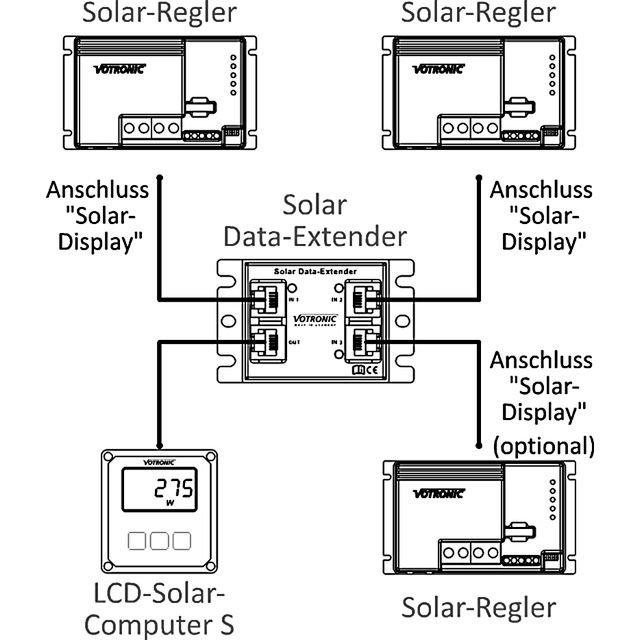

The Solar Data Extender can be installed later at any time. It has three independent inputs (IN1, IN2, IN3). The signals are combined and made available via the output (OUT). A solar display (eg LCD Solar Computer S) can be connected there.
It is plugged in between the Votronic solar charge controller and the solar display (e.g. LCD Solar Computer S) using the modular cable included in the scope of delivery. The IN1 connection must always be connected, since this is where the power supply for the device takes place.
Also available in boat version with moisture-proof electronics ! ?
Technical specifications
| Nominal voltage (supply via connected devices) | 12 and 24 |
| Operating voltage range [V] | 8 - 32 |
| Current consumption in standby, typical [mA] | 0.7 |
| Current consumption during activity, typical [mA} | 10 |
| Dimensions (WxHxD) in [mm] | 75x47x24 |
| Weight in [g] | 37 |
| test mark | CE, E-test (EMC/Automotive Directive) |
| Ambient conditions, humidity: | max. 95% room humidity, non-condensing |
| Scope of delivery: | 3 pieces of 6-pin control line, 0.5 m long, operating instructions |
